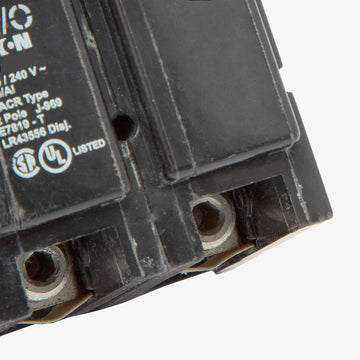

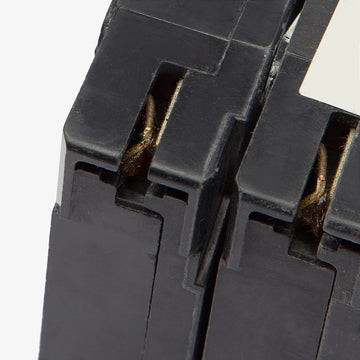

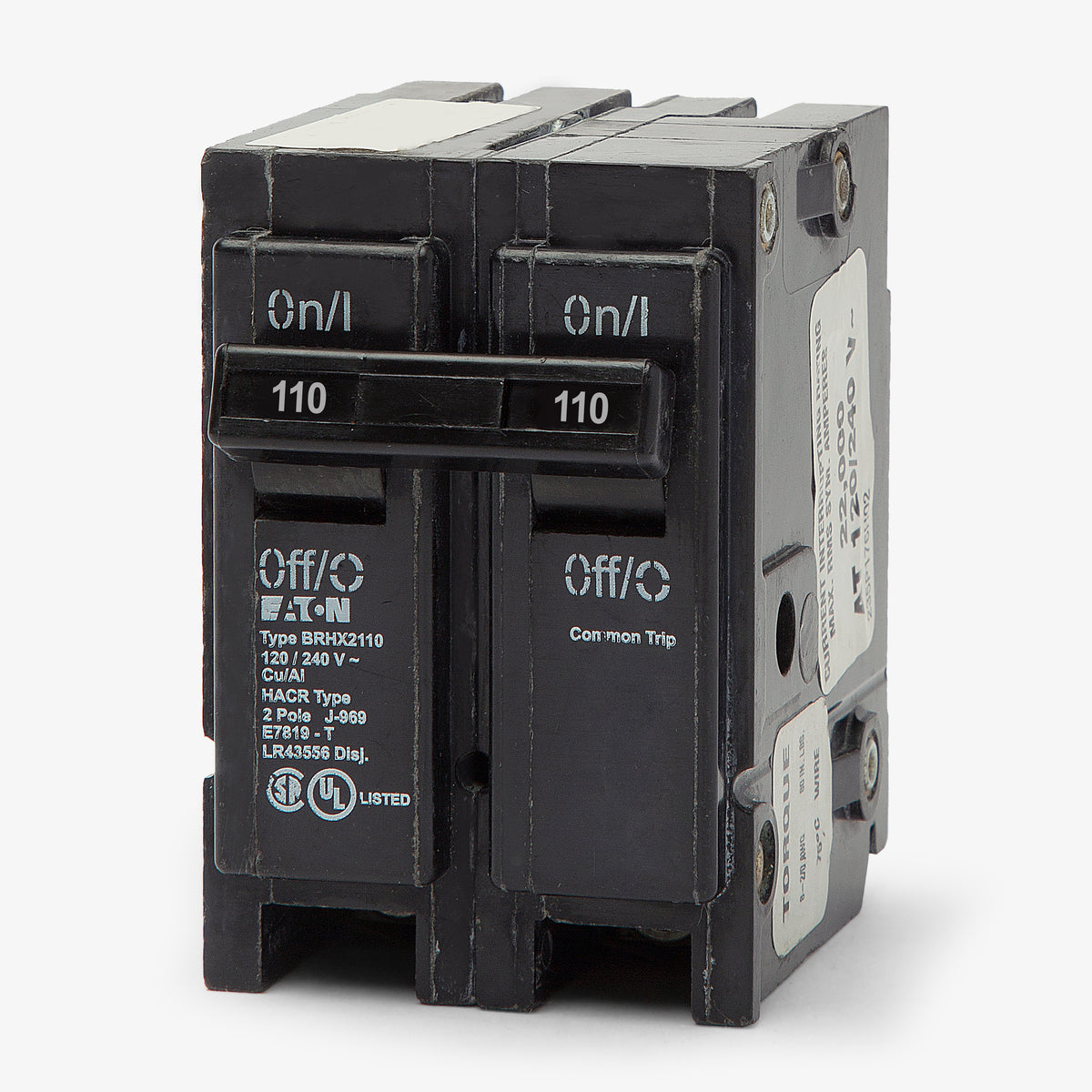

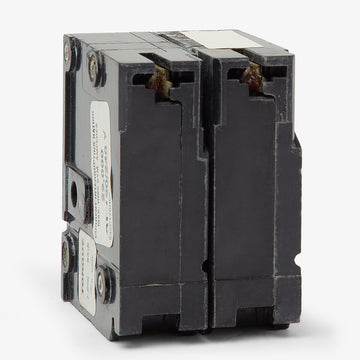

Eaton / Cutler-Hammer BRH2110 Miniature Circuit Breaker
- 110A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BRH2110
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRH2110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRH2110 - 110A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
125A 2 Pole Miniature Circuit Breaker
90A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
Description
Rated for 110 amps, this two-pole miniature breaker supplies robust overcurrent defense for residential or commercial electrical systems. The unit installs into Eaton Type BR load centers, utilizing a simple plug-on mounting style that saves time during panel upgrades. With an upgraded 22kAIC interrupting capacity, it safely clears higher fault currents compared to standard residential breakers. Box lug terminals accommodate 4-1/0 AWG conductors for secure wiring connections.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BRH2110 |
| Series | BRH |
| Amperage | 110A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | UL 489, Federal Specification W-C376, HACR |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, High Interrupting Capacity |
Product FAQs
6 answersWhat load centers are compatible with the BRH2110 breaker?
The BRH2110 is designed for use in Eaton Type BR load centers. It is also UL approved for use in legacy Cutler-Hammer, Bryant, Westinghouse, and Challenger load centers that accept Type BR breakers.
What does the H in the BRH2110 catalog number indicate?
The H indicates a high interrupting rating. While standard BR breakers are rated at 10 kAIC, the BRH series is rated at 22 kAIC, providing higher short-circuit protection for systems with higher available fault current.
What is the recommended torque for the box lug terminals on the BRH2110?
For Eaton BR breakers, the recommended terminal torque depends on the wire size. For 3 AWG to 1/0 AWG wire, torque the lugs to 45 in-lbs. For 4 AWG wire, torque to 27 in-lbs. Always verify the exact torque specifications printed on the side of the breaker.
Can the BRH2110 be used as a back-fed main breaker?
Yes, this breaker can be used as a back-fed main in compatible load centers. When installed as a back-fed main, the National Electrical Code requires it to be secured with an approved Eaton BR hold-down kit to prevent accidental removal from the bus bar.
Is the BRH2110 a direct replacement for older Bryant or Westinghouse breakers?
Yes. Eaton acquired the Bryant and Westinghouse electrical distribution lines. The Eaton BRH2110 is the direct, UL-listed replacement for obsolete Bryant, Westinghouse, and Challenger breakers with matching specifications.
What wire types are accepted by the BRH2110 terminals?
The box lugs on this breaker accept 4 AWG to 1/0 AWG copper or aluminum conductors. For proper installation, use wire rated for 60 or 75 degrees Celsius.
