Eaton / Cutler-Hammer BRH290 Miniature Circuit Breaker
- 90A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
BRH290
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRH290
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

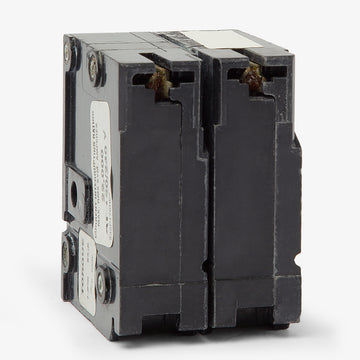

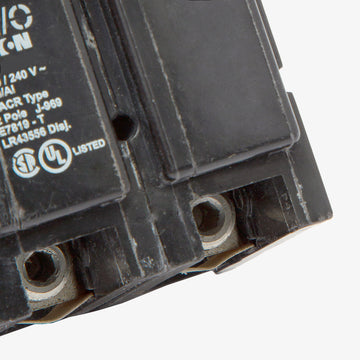

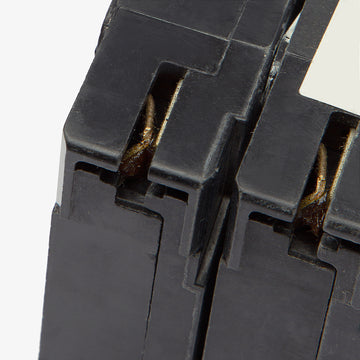

Eaton / Cutler-Hammer BRH290 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
80A 2 Pole Miniature Circuit Breaker
110A 2 Pole Miniature Circuit Breaker
70A 2 Pole Miniature Circuit Breaker
Description
Handling heavier electrical loads, this 90A two-pole miniature circuit breaker is ideal for residential and commercial branch circuits. It mounts into Eaton Type BR load centers and accommodates 4-1/0 AWG wire sizes via standard box lugs. With a high interrupting capacity of 22kAIC at 120/240VAC, this plug-on unit offers robust defense against overcurrents. The common trip design and HACR rating make it well-suited for demanding applications like air conditioning and heating systems.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRH |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 4-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | Federal Specification W-C376, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, High Interrupting Capacity |
Product FAQs
5 answersWhat load centers are compatible with the BRH290 circuit breaker?
The BRH290 is designed for use in Eaton Type BR load centers. It is also backward compatible with legacy Cutler-Hammer, Bryant, and Westinghouse load centers that accept Type BR plug-on breakers.
What is the difference between the Eaton BR290 and the BRH290?
The primary difference is the short-circuit interrupting rating. The standard BR290 is rated at 10kAIC, while the BRH290 features a higher interrupting rating of 22kAIC. The BRH290 can directly replace a BR290 in applications requiring a higher fault current rating.
What type of wire material is approved for the BRH290?
The box lugs on this breaker are dual-rated for both copper (Cu) and aluminum (Al) conductors.
Can the Eaton BRH290 replace older Bryant or Westinghouse breakers?
Yes. Because Eaton acquired Cutler-Hammer, Bryant, and Westinghouse, the Eaton BRH290 is the direct, manufacturer-approved replacement for legacy Bryant BRH290 and Westinghouse BRH290 circuit breakers.
Does the BRH290 provide AFCI or GFCI protection?
No, the BRH290 is a standard thermal-magnetic breaker. It provides overload and short-circuit protection but does not include arc fault or ground fault circuitry.
