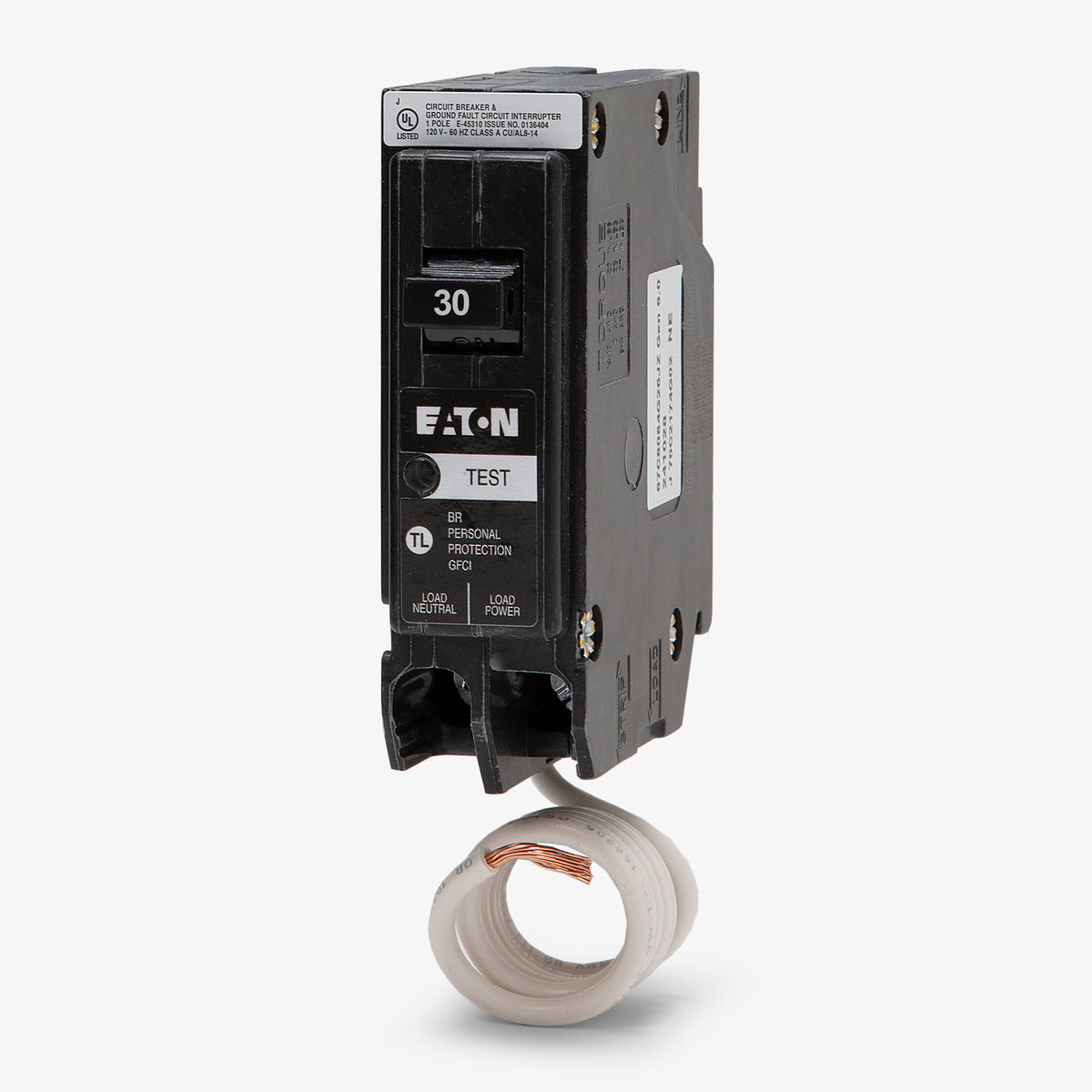

Eaton / Cutler-Hammer BRN130GF GFCI Miniature Circuit Breaker
- 30A
- 1 Pole

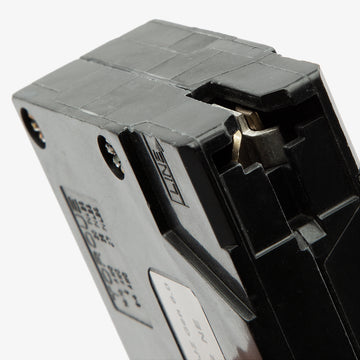

- Plug-On
Eaton / Cutler-Hammer
BRN130GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRN130GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRN130GF - 30A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Description
Engineered for residential wet locations, this 30-amp single-pole breaker delivers reliable 5mA ground-fault protection. It meets strict NEC requirements for areas like bathrooms and kitchens where water proximity poses a shock hazard. The plug-on design mounts into standard Eaton Type BR load centers and serves as a modern replacement for the legacy GFTCB130. Advanced self-test diagnostics and a trip-to-center handle provide clear visual indication of circuit status and safety.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRN |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943, CSA C22.2 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | Trip-to-Center, Self-Test, Visual Trip Indicator, Short Body |
Product FAQs
5 answersWhat older Cutler-Hammer part numbers does this breaker replace?
The BRN130GF serves as the direct replacement for the discontinued Eaton and Cutler-Hammer GFCB130 and GFTCB130 single-pole 30-amp GFCI breakers.
What panels are compatible with the BRN130GF?
This breaker is designed for use in Eaton Type BR load centers. It is also backward compatible with legacy Cutler-Hammer and Bryant panels that require 1-inch plug-on Type BR circuit breakers.

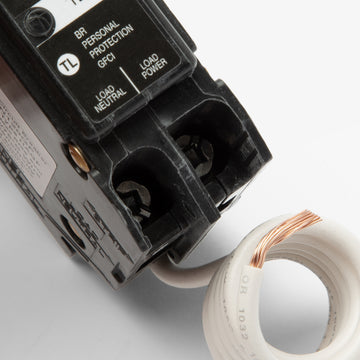

How is the neutral connection wired on this model?
This breaker is equipped with a pigtail neutral. The coiled white wire must be connected directly to the panel neutral bus bar for the ground fault circuit interrupter to function correctly.
What level of ground fault protection does the BRN130GF provide?
It provides Class A ground fault protection with a 5 mA trip sensitivity, ensuring personnel safety against electrical shock in wet areas such as kitchens, bathrooms, and outdoor installations.
What wire sizes are accepted by the breaker terminals?
The built-in box lugs accept wire gauges from 14 AWG to 8 AWG, accommodating the standard copper or aluminum conductors typically used in 30-amp branch circuits.
