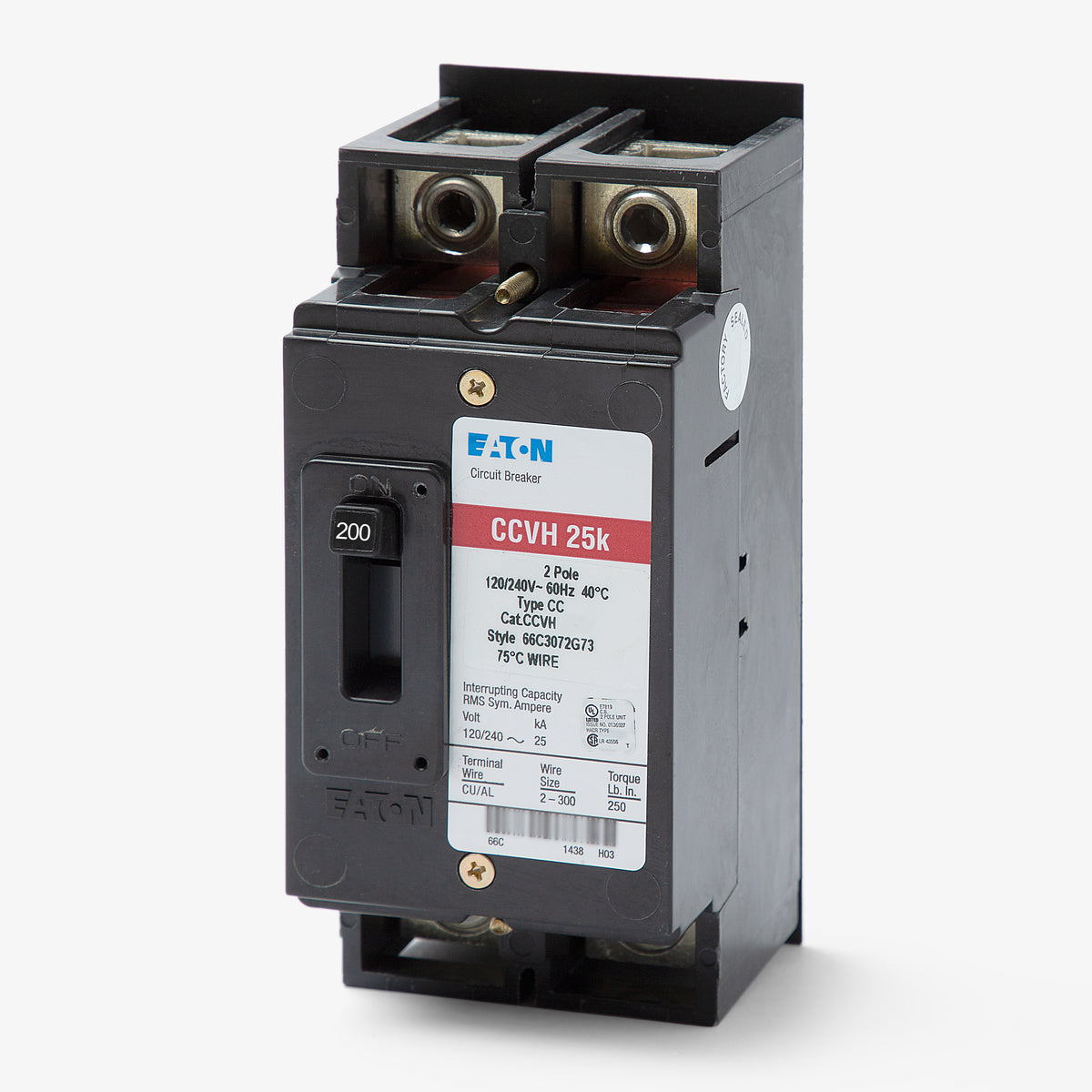

Eaton / Cutler-Hammer CCVH2200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
CCVH2200
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CCVH2200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CCVH2200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CCVH2200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CCVH2200 |
| Series | CCVH |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Group Metering Stacks (1MP, 1MM, 3MM), Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, High Interrupting Capacity |
Quantity
Eaton / Cutler-Hammer CCVH2200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CCVH2200 |
| Series | CCVH |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Group Metering Stacks (1MP, 1MM, 3MM), Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, High Interrupting Capacity |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Built for residential and commercial metering, the Eaton CCVH2200 delivers 200A of robust thermal-magnetic protection. It serves as a dedicated tenant main for multi-family or commercial electrical distribution systems. This unit mount MCCB installs into Eaton group metering stacks (1MP, 1MM, 3MM) and Type ECC unit enclosures. It accepts 2/0 AWG to 300 kcmil wire and replaces legacy CCH2200 breakers.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CCVH2200 |
| Series | CCVH |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Group Metering Stacks (1MP, 1MM, 3MM), Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, High Interrupting Capacity |
Product FAQs
6 answersWhat enclosures and metering stacks are compatible with the CCVH2200?
The CCVH2200 is designed to install directly into Eaton group metering stacks (including 1MP, 1MM, and 3MM series) and Type ECC unit enclosures, such as the ECCVH200R.
What is the difference between the Eaton CCV2200 and the CCVH2200?
The primary difference is the interrupting capacity. The standard CCV2200 has a 10kAIC rating, while the CCVH2200 features a higher 25kAIC rating for systems requiring greater fault current protection.
Can the CCVH2200 be used as a main breaker?
Yes, this breaker is specifically engineered as a tenant main circuit breaker. It serves as a primary disconnect for multi-family or commercial electrical distribution systems.
What wire sizes are accepted by the lugs on the CCVH2200?
The standard factory-installed lugs accept copper or aluminum conductors ranging from 2/0 AWG to 300 kcmil.
Can the CCVH2200 replace older Cutler-Hammer breakers?
Yes, the CCVH2200 is a direct replacement for legacy Cutler-Hammer CCH2200 tenant main breakers.
Are the trip settings on the CCVH2200 adjustable?
No, this breaker features fixed thermal and fixed magnetic trip settings for standard overload and short-circuit protection.
