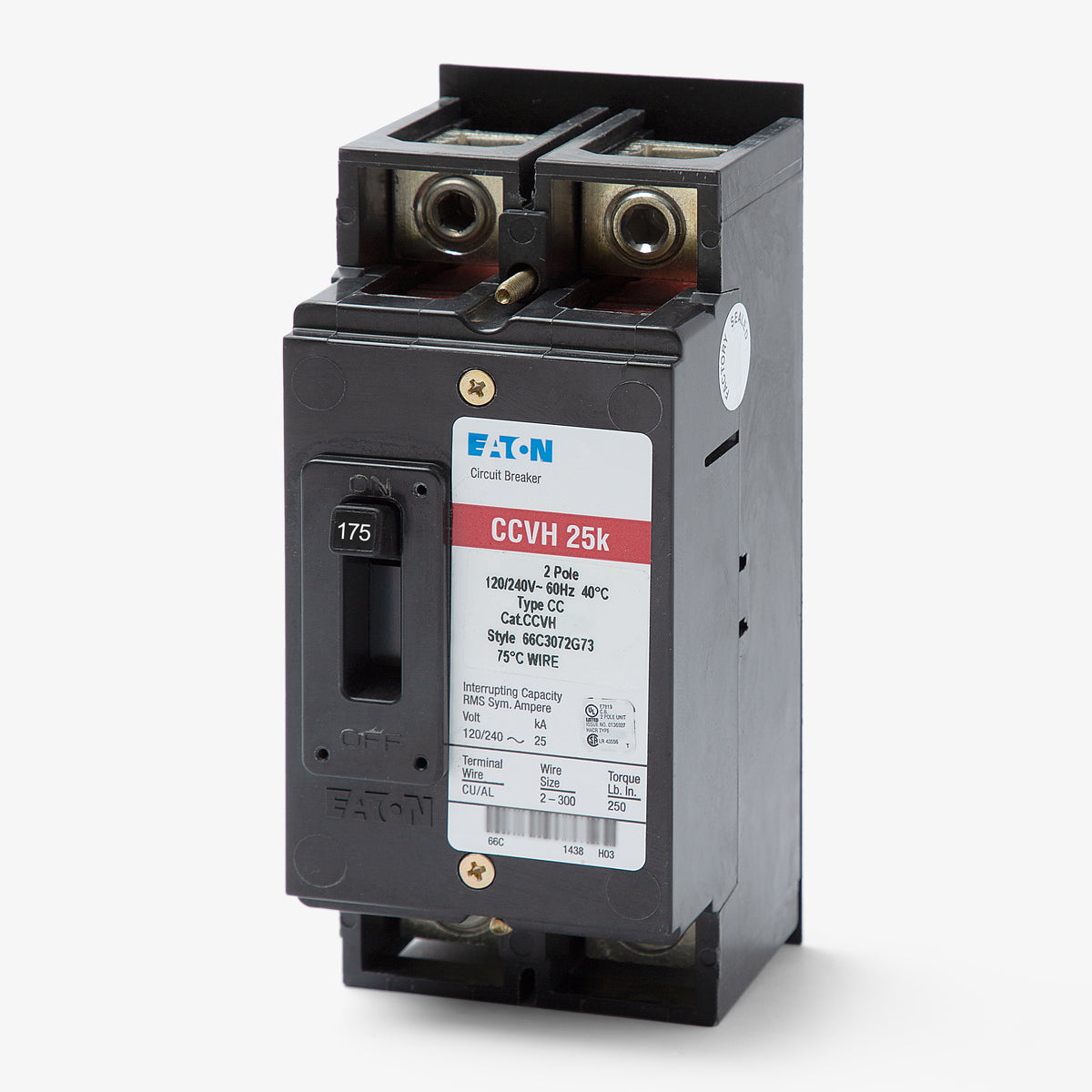

Eaton / Cutler-Hammer CCVH2175 Molded Case Circuit Breaker
- 175A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
CCVH2175
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CCVH2175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CCVH2175 - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 2 Pole Molded Case Circuit Breaker
2 Pole Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Serving as a primary disconnect for tenant spaces, this 175-amp molded case circuit breaker delivers Long-Time and Instantaneous (LI) protection. The CCV frame construction ensures long-lasting durability for commercial facilities. Designed for unit mounting, it installs easily into Eaton Type ECC enclosures and 1MP, 1MM, or 3MM group metering stacks. It replaces the discontinued CCH2175. This HACR-rated breaker features a 25 kAIC rating at 120/240VAC and includes line and load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CCVH2175 |
| Series | CCVH |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Group Metering Stacks (1MP, 1MM, 3MM), Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|

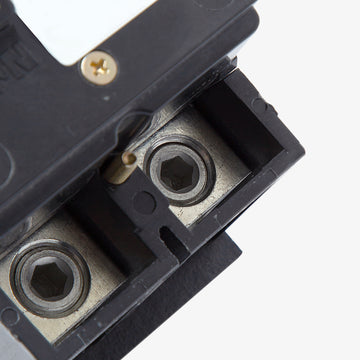

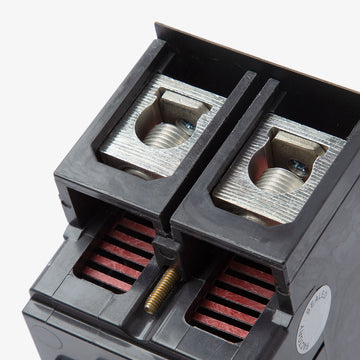

| Accessories | Line & Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, High Interrupting Capacity |
Product FAQs
6 answersWhat enclosures and metering stacks are compatible with the CCVH2175?
This tenant main breaker is designed for use in Eaton Group Metering Stacks, including the 1MP, 1MM, and 3MM series, as well as Type ECC unit enclosures.
Can this breaker be used as a tenant main disconnect?
Yes, the CCVH2175 is specifically engineered to function as a tenant main circuit breaker, providing reliable main disconnect protection for individual tenant spaces in multi-family residential and commercial group metering systems.
What is the difference between the Eaton CCV2175 and CCVH2175?
The primary difference is the interrupting capacity. The CCV2175 is rated for 10kAIC, while the CCVH2175 provides a higher interrupting rating of 25kAIC. Both breakers share the exact same physical footprint.
Can the CCVH2175 replace older CC or CCH frame breakers?
Yes, Eaton CCV and CCVH frame breakers retain the same profile and footprint as legacy CC and CCH breakers, making them backward compatible for use in the same applications.
Is the CCVH2175 rated for reverse-feed applications?
Yes, Eaton CCVH molded case circuit breakers are sealed units that allow for reverse feeding when required by your specific electrical application.
How does the CCVH2175 mount into the electrical system?
It is a unit-mount, or surface-mount, breaker that bolts directly into compatible Eaton modular metering stacks and ECC enclosures. It does not plug into a standard load center or mount on a DIN rail.
