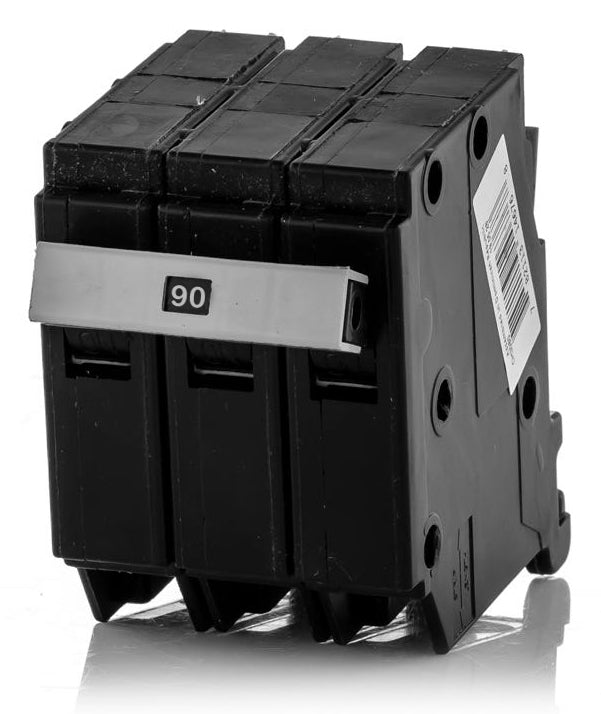

Eaton / Cutler-Hammer CH3090 Miniature Circuit Breaker
- 90A
- 3 Pole
- Plug-On
Eaton / Cutler-Hammer
CH3090
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH3090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH3090 - 90A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
100A 3 Pole Miniature Circuit Breaker
80A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
Description
Engineered for residential and commercial power distribution, this 90-amp, three-pole miniature circuit breaker delivers dependable overcurrent protection. The device utilizes a quick-make, quick-break mechanism to ensure consistent operation. This plug-on breaker installs into standard Eaton CH load centers, occupying three 3/4-inch spaces. It features box lug terminals that accommodate #10-1/0 AWG copper or aluminum wiring. With a 10 kAIC rating at 240V, the unit provides robust defense.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH3090 |
| Series | CH |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Loadcenters |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | UL, CSA |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersHow many panel spaces does the CH3090 require?
This 3-pole breaker requires three 3/4-inch spaces in a compatible Eaton CH loadcenter.
Can I install the CH3090 in a single-phase panel?
No. Because it is a 3-pole breaker, the CH3090 must be installed in a 3-phase Eaton CH loadcenter.
Is the Eaton CH3090 HACR rated?
Yes, this breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration motor loads.
Is the Eaton CH3090 interchangeable with Cutler-Hammer or Challenger versions?
Yes. Eaton acquired Cutler-Hammer and Challenger. The CH3090 is the exact same component across these legacy brand names and is fully interchangeable in Type CH panels.
Does the CH3090 feature a common trip mechanism?
Yes, this breaker features an internal common trip connection. If a fault is detected on any single pole, all three poles will open simultaneously to disconnect power safely.
