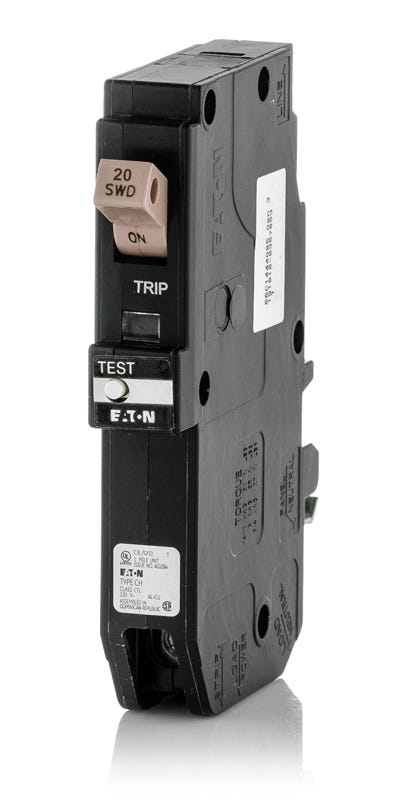

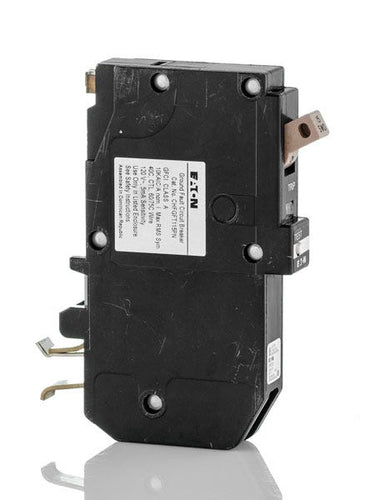

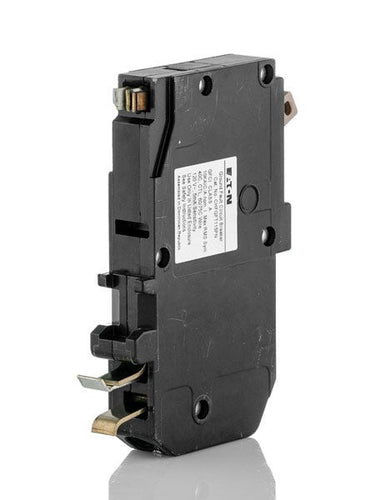

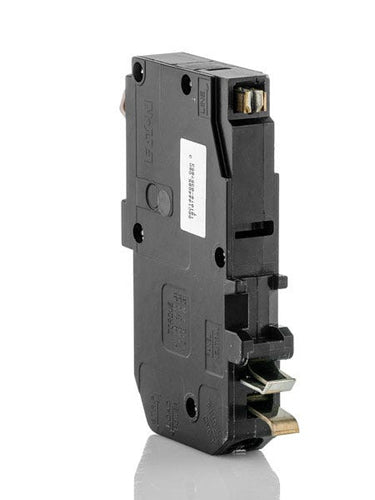

Eaton / Cutler-Hammer CHFGFT120PN GFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CHFGFT120PN
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHFGFT120PN
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHFGFT120PN - 20A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCHFGFT115PN
15A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerCHFN120GF
20A GFCI Miniature Circuit Breaker
Description
Built for residential and commercial use, the Eaton CHFGFT120PN delivers 5mA personnel ground-fault protection. This 1-pole, 20A breaker utilizes thermal-magnetic technology to defend against overloads. Designed for Eaton CH plug-on neutral load centers, it eliminates the need for a pigtail connection. This model has been replaced by the CHFP120GF substitute. Rated at 10kAIC at 120VAC, it features self-testing capabilities and a visual trip flag to identify tripped conditions.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CHF |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Plug-On Neutral Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al) or (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Trip Flag |
| Standards | UL 489, UL 943 |
| Approval | CSA, UL, UL 489, UL 943 |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Visual Trip Indicator, Self-Test |
Product FAQs
8 answersCan I install the CHFGFT120PN in a standard Eaton CH load center?
No. This breaker features a plug-on neutral connection and must be installed in an Eaton CH Plug-On Neutral load center. It does not have a pigtail wire for use in legacy panels.
What is the difference between the CHFGFT120PN and the CHFGFT120?
The CHFGFT120PN is a plug-on neutral breaker designed for PON load centers and lacks a neutral pigtail. The CHFGFT120 includes a standard curly pigtail for connection to the neutral bar in traditional CH load centers.
Will this breaker fit in an Eaton BR series panel?
No. Eaton CH series breakers are 3/4-inch wide per pole and feature a distinctive sandalwood color. They are not interchangeable with Eaton BR series breakers, which are 1-inch wide.
How many conductors can be terminated on the load lugs of the CHFGFT120PN?
The box lugs accept either a single 14-8 AWG copper or aluminum conductor, or two 14-10 AWG copper or aluminum conductors.
What level of ground fault protection does this breaker provide?
This is a Class A GFCI breaker designed for personnel protection. It will trip when a ground fault current of 5 milliamps is detected.
Does this breaker require a separate neutral wire connection to the panel bus?
No. The plug-on neutral design connects directly to the neutral bar through the breaker mounting clip, eliminating the need to route and terminate a separate pigtail wire.
Does the CHFGFT120PN include diagnostic trip indicators?
Yes. It features a mechanical trip flag to easily identify a tripped breaker, as well as a diagnostic LED that blinks a specific code to indicate the cause of the trip.
How do I test the ground fault protection after installation?
Once installed and powered, press the test button on the front of the breaker. The breaker should trip immediately, moving the handle to the tripped position and displaying the mechanical trip flag.
