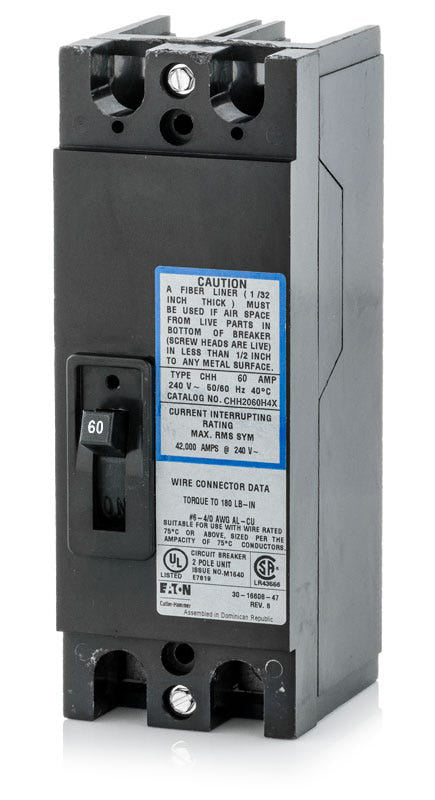

Eaton / Cutler-Hammer CHH2060H4X Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHH2060H4X
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHH2060H4X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHH2060H4X - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCHH2125H4X
125A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCHH2150H4X
150A 2 Pole Molded Case Circuit Breaker
Description
Manufactured for dependable residential and commercial service, the Eaton CHH2060H4X operates as a dedicated tenant main breaker. This 60-amp, two-pole unit installs into a variety of Eaton modular metering stacks, such as the 1MP, 1MM, 35MM, and 37MM enclosures. It features a solid 42kAIC rating at 120/240VAC, a visual trip indicator, and HACR certification for heating and cooling loads. When updating equipment, the CVS2060XMM serves as the standard factory replacement.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH2060H4X |
| Series | CHH |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 42kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Modular Metering Stacks (1MP, 1MM, 35MM, 37MM, 35SS, 37SS) |
| Wire Gauge | #2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | #2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, High Interrupting Capacity, Visual Trip Indicator |
Product FAQs
6 answersWhat specific metering equipment is compatible with the CHH2060H4X?
This tenant main breaker is engineered exclusively for Eaton modular metering stacks. Supported product lines include the 1MP, 1MM, 35MM, 37MM, 35SS, and 37SS series.
Can this breaker be used as a main breaker in a standard Eaton CH load center?
No. Despite sharing the CH family name, this is a specialized bolt-on tenant main breaker for multi-family metering stacks. It will not fit standard residential plug-on or bolt-on load centers.
Does the CHH2060H4X come with load lugs installed?
Yes, the breaker includes factory-installed load lugs ready to accept copper or aluminum conductors, streamlining installation in the metering stack.
Can I replace an older Cutler-Hammer CHH tenant breaker with this Eaton model?
Yes. Eaton acquired Cutler-Hammer, and their product lines are fully interchangeable. This Eaton breaker serves as an exact drop-in replacement for older Cutler-Hammer models sharing the same catalog number.
Are the thermal-magnetic trip functions on this breaker adjustable?
No. The long-time and instantaneous (LI) trip functions are factory-fixed. If your application requires adjustable trip settings, you will need a different frame type or an electronic trip unit.
What safety precautions should be taken before installing this tenant main breaker?
Always ensure the main power to the metering stack is completely de-energized and properly locked out before attempting to bolt on or wire the tenant main breaker. Installation should only be performed by a licensed electrician.
