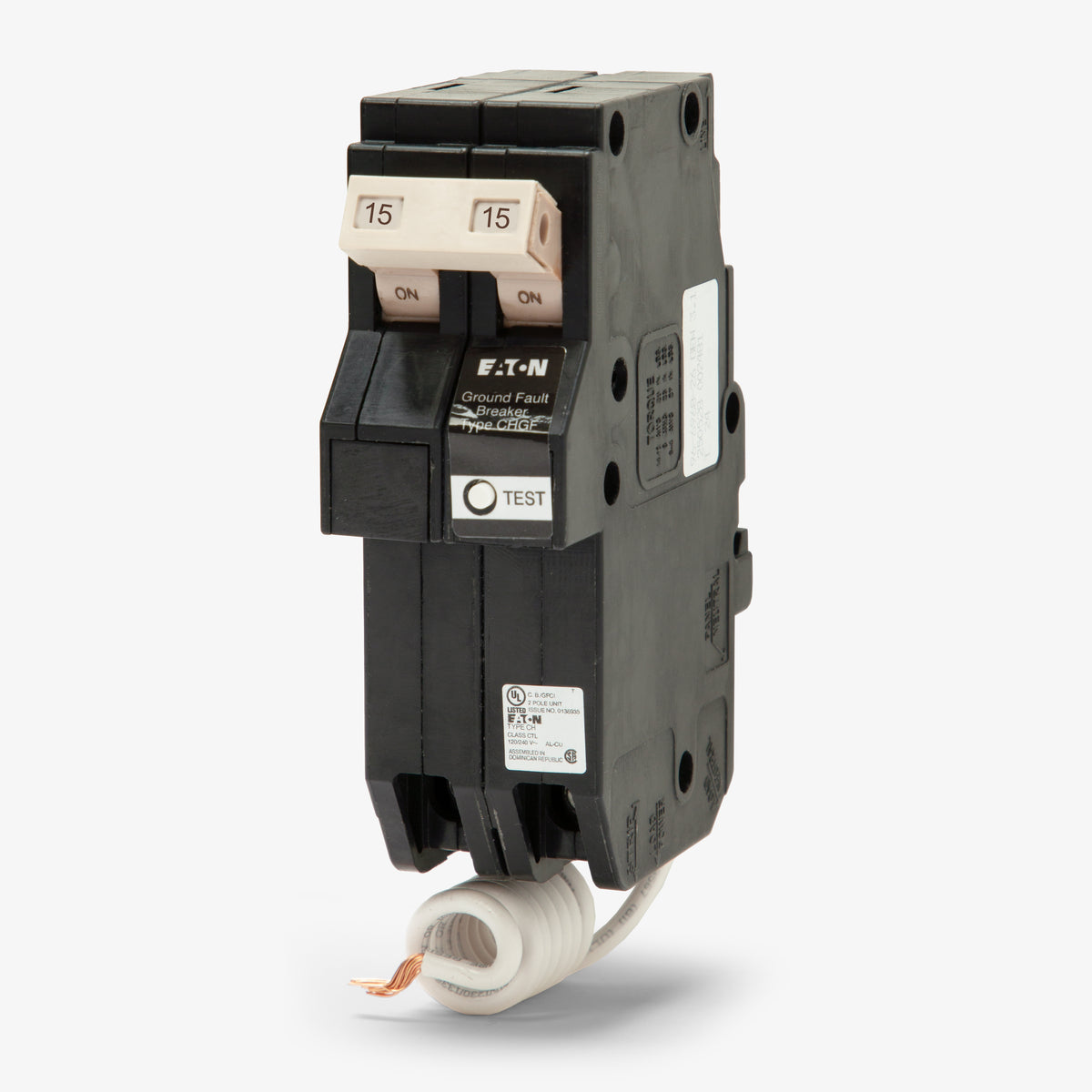

Eaton / Cutler-Hammer CHN215GF GFCI Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CHN215GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHN215GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHN215GF - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
25A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
35A GFCI Miniature Circuit Breaker
Description
Providing dedicated personnel protection, the Eaton CHN215GF is a 15A, two-pole GFCI breaker for 120/240V applications. It features a common trip mechanism and thermal-magnetic technology to ensure both poles disconnect simultaneously during a fault. This plug-on unit installs into Eaton CH load centers and includes a pigtail neutral connection. It serves as a replacement for the older CH215GF model. Rated at 10kAIC, it includes a self-test feature and trip-to-center handle.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHN215GF |
| Series | CHN |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Loadcenters, Type CH Plug-On Neutral Loadcenters |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral Wire |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Self-Test |
Product FAQs
7 answersWhat panels accept the Eaton CHN215GF?
The CHN215GF is designed exclusively for Eaton and Cutler-Hammer Type CH loadcenters. It fits both legacy standard-neutral panels and modern Type CH Plug-On Neutral (PON) loadcenters. It is not compatible with Eaton Type BR panels or panels from other manufacturers.
Will the CHN215GF fit in an Eaton CH Plug-On Neutral (PON) loadcenter?
Yes. Although it uses a traditional pigtail neutral wire, the physical casing of the CHN215GF is specially designed to install in Plug-On Neutral loadcenters without interfering with the PON neutral bar.
What is the difference between the CHN215GF and the older CH215GF or CHF215GF?
The legacy CH215GF and CHF215GF breakers have an older casing design that physically conflicts with the neutral bar in newer Eaton CH Plug-On Neutral loadcenters. The CHN215GF features an updated housing that bypasses this bar, making it backward-compatible with legacy panels and forward-compatible with new PON panels.
What level of ground fault protection does the CHN215GF provide?
This breaker is a Class A Ground Fault Circuit Interrupter (GFCI). It provides 5mA personnel protection to meet standard NEC ground-fault requirements for residential and commercial circuits.
Does the CHN215GF provide arc fault (AFCI) protection?
No. The CHN215GF provides Ground Fault Circuit Interrupter (GFCI) protection only. It does not include Arc Fault Circuit Interrupter (AFCI) or Dual Function protection.
How is the neutral wired on the CHN215GF?
This breaker features a pigtail neutral connection. You must route the attached white pigtail wire to the neutral bus bar in your loadcenter to power the internal ground-fault circuitry, regardless of whether you are installing it in a standard or Plug-On Neutral panel.
What type of trip mechanism does the CHN215GF utilize?
It uses thermal-magnetic trip technology. A thermal element provides long-time overload protection, while a magnetic element delivers instantaneous tripping for severe short-circuit conditions.
