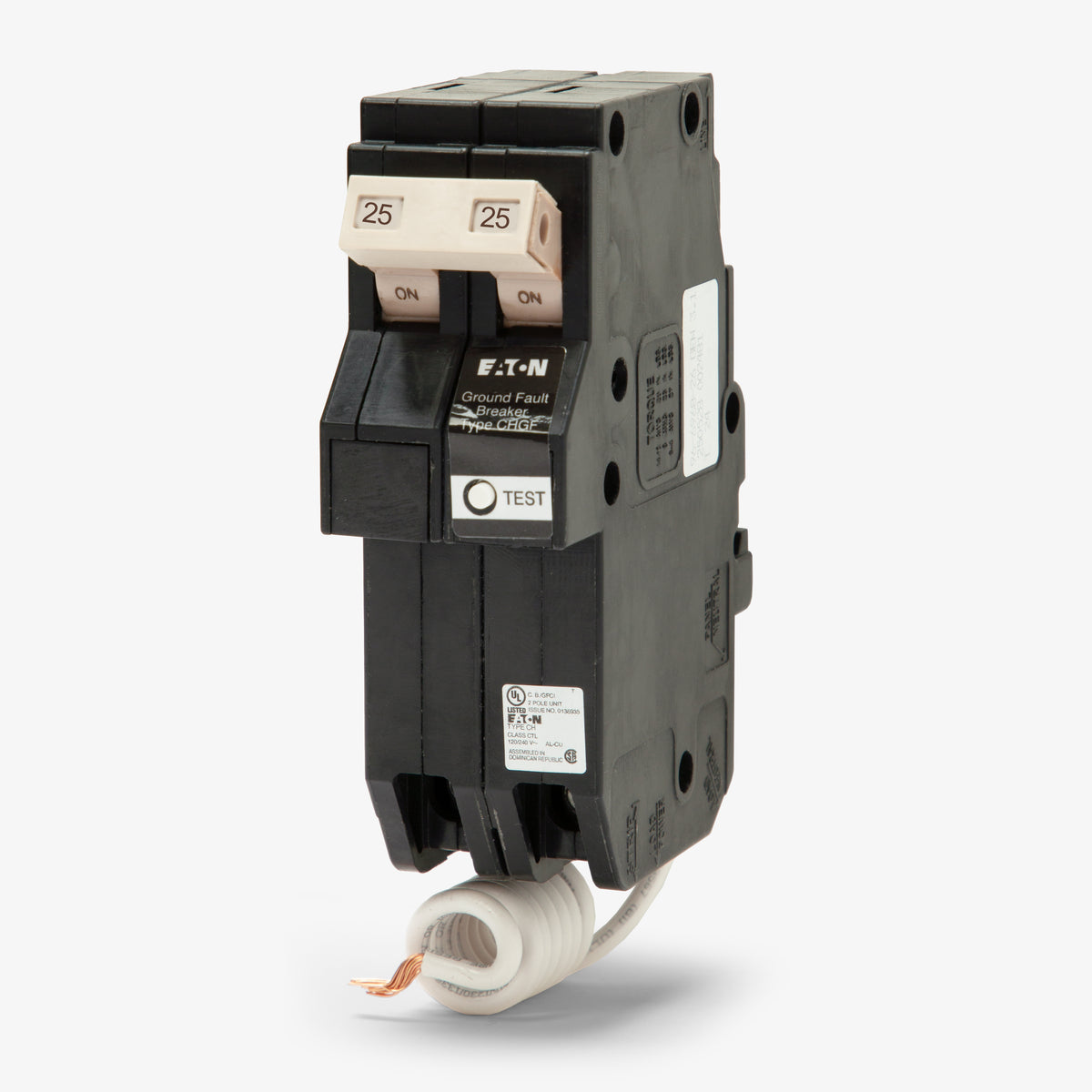

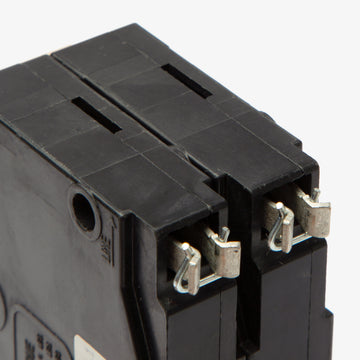

Eaton / Cutler-Hammer CHN225GF GFCI Miniature Circuit Breaker
- 25A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CHN225GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHN225GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHN225GF - 25A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFCI Miniature Circuit Breaker
35A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Description
Built for residential and commercial safety, the Eaton CHN225GF provides 25A of power distribution and 5mA Class A ground fault protection. This two-pole breaker prevents shock hazards in damp locations. Featuring a plug-on design and pigtail neutral, it installs into Eaton CH loadcenters and replaces the legacy CH225GF. Rated at 10 kAIC for 120/240V systems, this GFCI device includes self-test capabilities and common trip functionality to ensure NEC code compliance.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CHN |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Loadcenters, Type CH Plug-On Neutral Loadcenters |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral Wire |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Self-Test |
Product FAQs
8 answersWhich load centers accept the CHN225GF breaker?
It installs into standard Eaton CH load centers and is also compatible with Type CH Plug-On Neutral load centers.
Can I use this pigtail breaker in a plug-on neutral panel?
Yes. The pigtail neutral design allows it to be installed in Type CH Plug-On Neutral panels without interfering with the neutral bar, as well as in traditional panels.
Is the CHN225GF a replacement for older CH series GFCI breakers?
Yes, this model is the direct manufacturer replacement for the legacy CH225GF.
What class of ground fault protection does the CHN225GF offer?
It delivers 5mA Class A personnel protection, meeting NEC requirements for shock hazard prevention in wet or damp locations.
Does this breaker perform automatic GFCI diagnostics?
Yes, it features built-in self-test capabilities to continuously verify that the ground fault circuitry is functioning correctly.
How is the neutral connection made during installation?
You must route and terminate the attached pigtail neutral wire directly to the neutral bus bar in the load center to enable the ground fault protection.
Are both poles protected by the ground fault circuitry?
Yes, it features common trip functionality, ensuring that a ground fault or overload on either pole will simultaneously trip both legs of the 240V circuit.
Is the CHN225GF rated for use with HVAC equipment?
Yes, it is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration motor loads that require ground fault protection.
