Eaton / Cutler-Hammer BR160 Miniature Circuit Breaker
- 60A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BR160
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR160
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

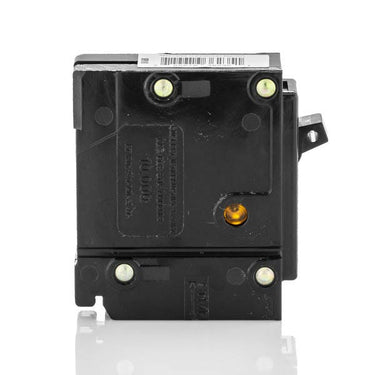

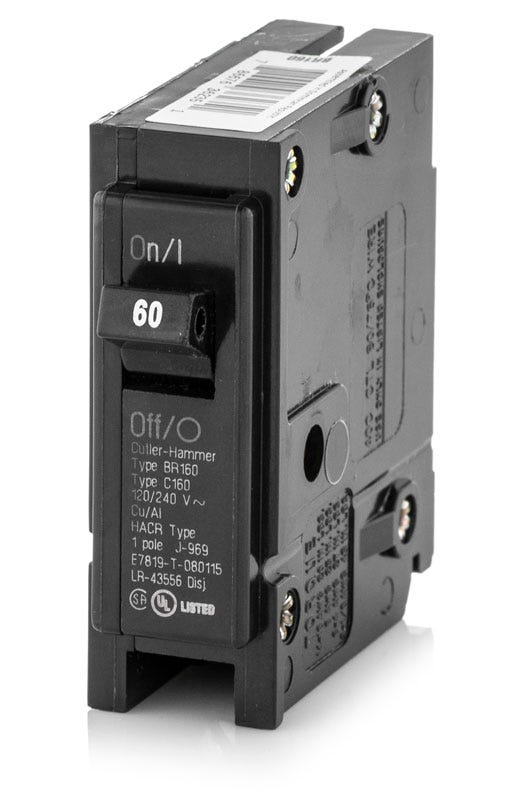

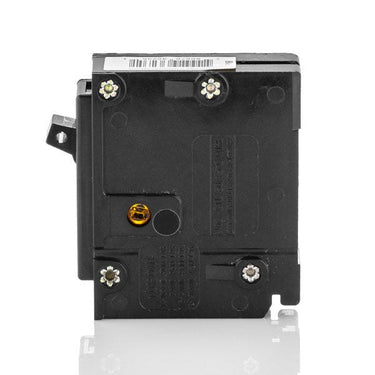

Eaton / Cutler-Hammer BR160 - 60A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
15A 1 Pole Miniature Circuit Breaker
Description
Engineered for robust performance, the Eaton BR160 is a 60-amp, single-pole miniature circuit breaker. It utilizes proven thermal-magnetic trip technology to defend residential electrical systems against damaging overloads and short circuits. This breaker is specifically designed to mount into Eaton Type BR load centers. The convenient plug-on design allows for fast installation, while the sturdy box lug terminals securely accommodate larger 4-1/0 AWG copper or aluminum wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BR |
| Amperage | 60A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | UL 489, Federal Specification W-C375 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
7 answersWhat panels are compatible with the Eaton BR160?
The BR160 is designed for Eaton Type BR load centers. It is also UL listed for use in specific legacy Westinghouse, Challenger, and Bryant panels that accept Type BR breakers. Always verify your panel labeling for compatibility.
Does the Eaton BR160 replace older Bryant or Westinghouse breakers?
Yes, Eaton manufactures the BR series to directly replace legacy Bryant, Westinghouse, and Challenger Type BR breakers of the same amperage and pole configuration.
What wire sizes does the BR160 accept?
The box lug terminals on the BR160 accommodate 4 AWG to 1/0 AWG copper or aluminum wiring. Ensure the wire size matches the circuit requirements and is torqued to the manufacturer specifications.
Is the Eaton BR160 HACR rated?
Yes, modern Eaton BR circuit breakers, including the BR160, are HACR rated for use with heating, air conditioning, and refrigeration equipment.
Can I tie two BR160 breakers together for a 240V circuit?
No. The BR160 is a single-pole breaker designed for 120V circuits. For 240V applications requiring a 60A double-pole breaker, you must use the BR260 rather than tying two BR160 breakers together.
What does the LI trip function mean on this breaker?
The LI designation indicates the breaker uses a thermal-magnetic trip unit with Long-Time (L) and Instantaneous (I) protection. The thermal element protects against sustained overloads, while the magnetic element trips instantly during a short circuit.
Can I use the BR160 in a panel that requires a 22kAIC rating?
No. The BR160 has a standard 10kAIC interrupting rating. If your panel or local utility requires a 22kAIC rating, you will need the high-interrupting version, part number BRH160.
