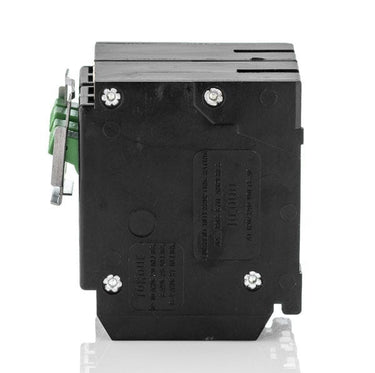

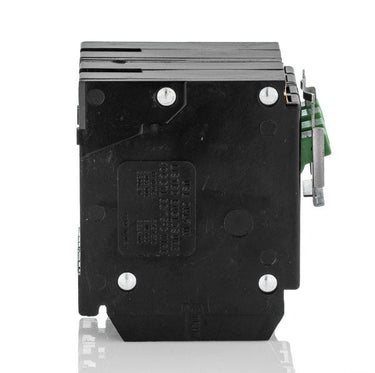

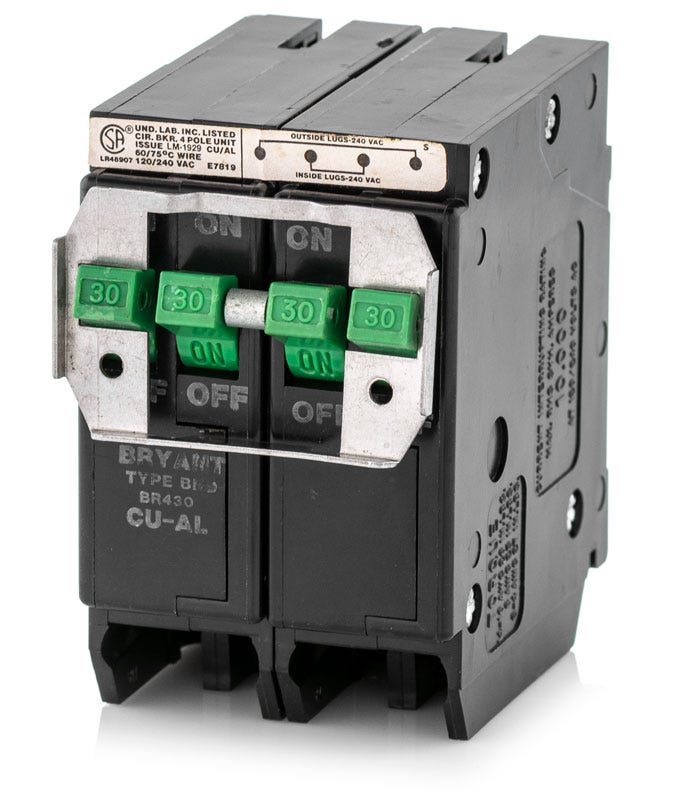

Eaton / Cutler-Hammer BR430 30/30/30/30A Quadplex Miniature Circuit Breaker
- 30/30/30/30A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BR430
30/30/30/30A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR430
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BR430 - 30/30/30/30A Quadplex Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer BR430 - 30/30/30/30A Quadplex Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BR |
| Amperage | 30/30/30/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | UL 489, Federal Specification W-C375 |
| Approval | UL |
| Temp Rating | 60C, 75C |
| Construction Features | Non-CTL, Common Trip, HACR Rated |
Quantity
Eaton / Cutler-Hammer BR430 - 30/30/30/30A Quadplex Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BR |
| Amperage | 30/30/30/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | UL 489, Federal Specification W-C375 |
| Approval | UL |
| Temp Rating | 60C, 75C |
| Construction Features | Non-CTL, Common Trip, HACR Rated |
Similar Items
Eaton / Cutler-HammerBQC230230
30/30A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBRDC230230
30/30A Quadplex Miniature Circuit Breaker
30/30A Quadplex Miniature Circuit Breaker
Description
Built for residential power distribution, the Eaton BR430 is a 30A quadplex breaker that consolidates four independent circuits into a compact two-pole space. This plug-on unit is a non-CTL replacement, meaning it lacks a rejection tab and fits older panels that require non-class CTL breakers. Rated for 10 kAIC at 120/240V, it features independent trip mechanisms for the outer and center pairs. It is fully compatible with Eaton and legacy Cutler-Hammer Type BR load centers.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BR |
| Amperage | 30/30/30/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | UL 489, Federal Specification W-C375 |
| Approval | UL |
| Temp Rating | 60C, 75C |
| Construction Features | Non-CTL, Common Trip, HACR Rated |
Product FAQs
5 answersWhich load centers are compatible with the BR430 quadplex breaker?
The BR430 is designed for use in Eaton and legacy Cutler-Hammer Type BR load centers. It is also UL approved for installation in compatible Westinghouse, Challenger, and Bryant panels that accept Type BR breakers.
Is the Eaton BR430 a CTL or Non-CTL circuit breaker?
The BR430 is a Non-CTL (Circuit Total Limiting) replacement breaker. It lacks a rejection tab, allowing it to be installed in older non-CTL load centers to maximize circuit capacity in existing panels.
How much panel space does the BR430 quadplex breaker require?
This quadplex breaker consolidates four 30A poles into a compact footprint, requiring only two standard 1-inch spaces on the panel bus.
Does the BR430 feature a common trip or independent trip mechanism?
The BR430 features independent trip mechanisms for both the outer and center poles, effectively providing four independent 120V, 30A circuits. A fault on one pole will trip independently without forcing the other circuits in the quadplex assembly to trip.
What is the difference between the BR430 and the BRDC230230?
While both are 30A quadplex breakers requiring two panel spaces, the BR430 features independent trip mechanisms for the center and outer poles. The BRDC230230 features a common trip mechanism, which is required by NEC code when supplying 240V loads that need simultaneous disconnects.
