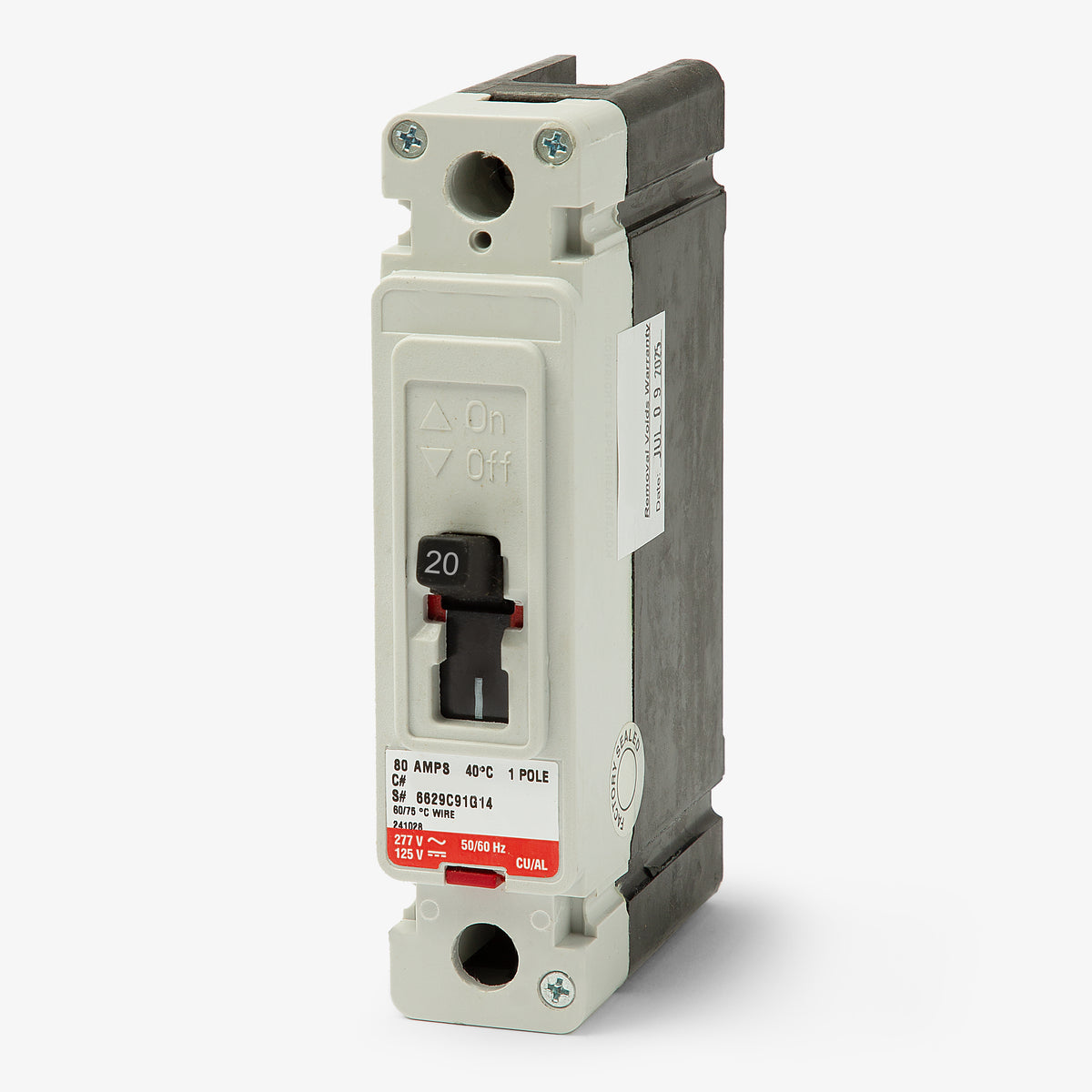

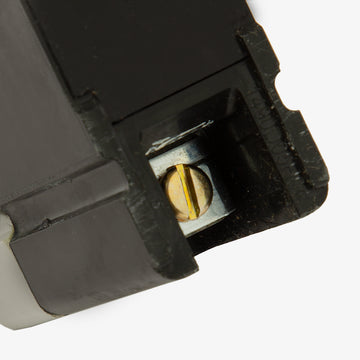

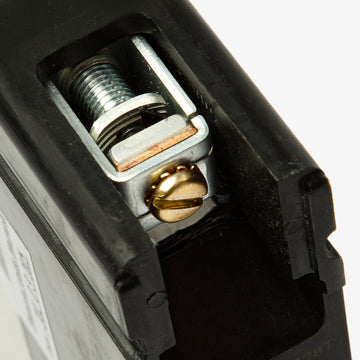

Eaton / Cutler-Hammer FD1020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
FD1020
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FD1020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FD1020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer FD1020 - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD1020 |
| Series | FD |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 35kA @ 277VAC, 10kA @ 125VDC, 18kA @ 347VAC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer FD1020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD1020-R |
| Series | FD |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 35kA @ 277VAC, 10kA @ 125VDC, 18kA @ 347VAC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
60A 1 Pole Molded Case Circuit Breaker
70A 1 Pole Molded Case Circuit Breaker
80A 1 Pole Molded Case Circuit Breaker
Description
Built for commercial environments, the Eaton FD1020 is a 1-pole, 20A molded case circuit breaker from the Series C family. It delivers dependable thermal-magnetic protection for critical electrical circuits. Featuring a bolt-on mounting style, this F-Frame breaker installs into compatible Eaton panelboards and switchboards. It replaces older Cutler-Hammer units and is superseded by the PDG11G0020TFFJ. Rated 35kAIC at 277VAC, it is fully HACR, HID, and SWD rated with reverse feed capability.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD1020-R |
| Series | FD |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 35kA @ 277VAC, 10kA @ 125VDC, 18kA @ 347VAC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
9 answersCan I install the FD1020 in a standard residential load center?
No. The FD1020 is a bolt-on molded case circuit breaker designed for Eaton Series C panelboards, switchboards, and motor control centers. It is not compatible with standard residential plug-on load centers like the BR or CH series.
What is the difference between the FD1020 and other F-frame breakers like the FDB1020 or HFD1020?
The primary difference is the interrupting capacity. The FD1020 is rated for 35kAIC at 277VAC. The FDB version has a lower rating of 14kAIC, while the HFD version offers a higher rating of 65kAIC. All three share the same physical dimensions and mountings.
Does the FD1020 come with both line and load lugs?
No. Because it is a bolt-on breaker designed for panelboards and switchboards, the FD1020 is typically supplied with load-side lugs only. The line side bolts directly to the internal bus of the enclosure.
Can the FD1020 be reverse fed?
Yes. Eaton F-frame circuit breakers, including the FD1020, are suitable for reverse feed applications because they feature fixed thermal-magnetic trip units without line or load directional restrictions.
Is the FD1020 suitable for high-intensity discharge (HID) lighting or HVAC equipment?
Yes. All Eaton F-frame circuit breakers are HACR rated for heating, air conditioning, and refrigeration applications. Additionally, 15A and 20A models like the FD1020 are fully rated for HID lighting loads.
Can the FD1020 be used in direct current (DC) control circuits?
Yes. While commonly used for 277VAC systems, this breaker is also UL listed for direct current applications up to 125VDC, providing a 10kAIC interrupting rating for DC switching and protection.
What is the correct replacement lug kit for the FD1020?
The standard replacement load lug kit for a 20A F-frame breaker accepting 14 to 1/0 AWG wire is the Eaton 3T100FB.
Is the Eaton FD1020 a direct replacement for older Cutler-Hammer models?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse product lines. The current Eaton FD1020 is the exact direct replacement for legacy Cutler-Hammer and Westinghouse FD1020 breakers, maintaining the same Series C F-frame design.
How do I test the mechanical operation of the FD1020 breaker?
You can manually exercise the operating mechanism by pressing the PUSH-TO-TRIP button located on the front of the breaker. This safely checks the tripping function and should be done periodically during routine maintenance.
