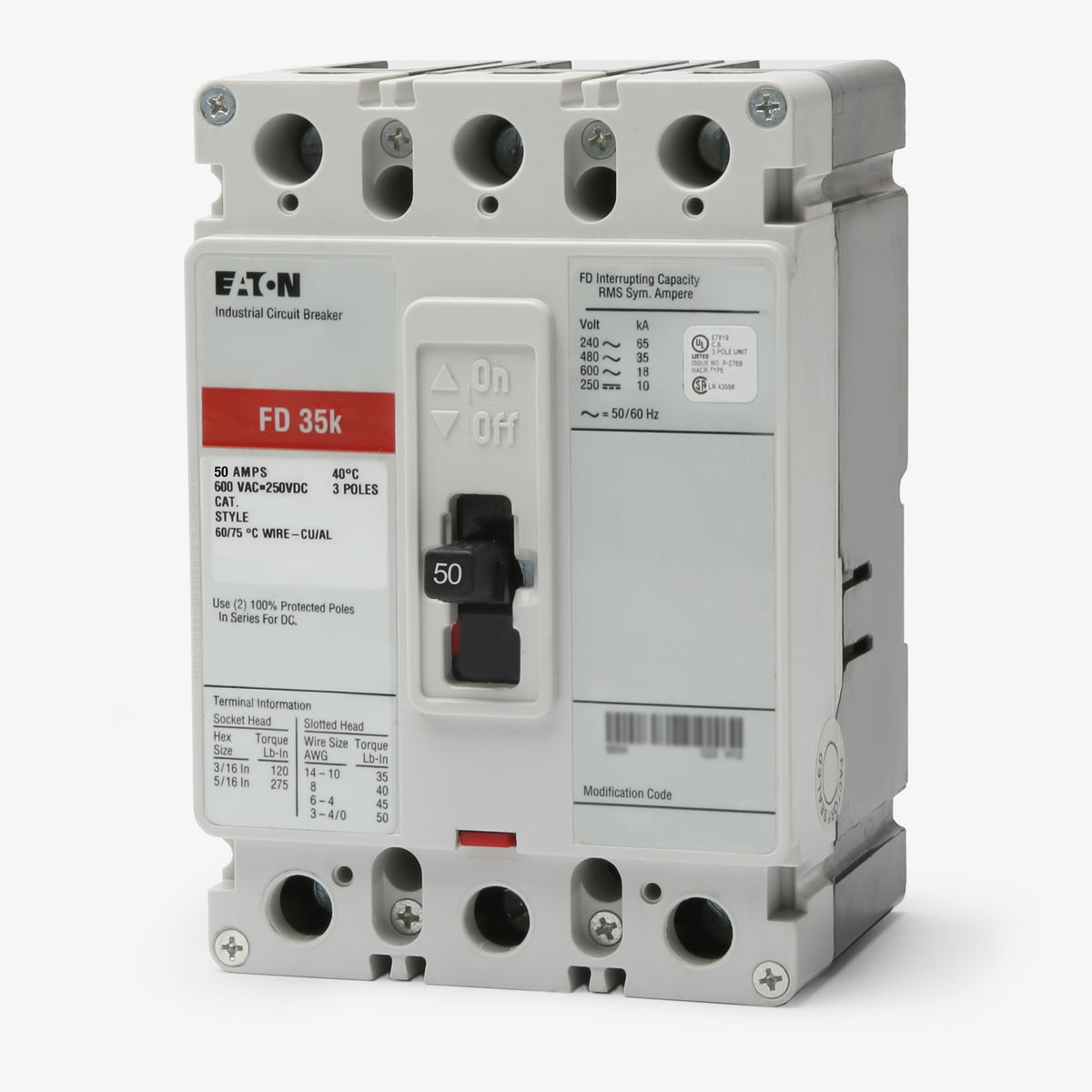

Eaton / Cutler-Hammer FD3050 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
FD3050
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FD3050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FD3050 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer FD3050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD3050 |
| Series | FD |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer FD3050 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD3050-R |
| Series | FD |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Similar Items
60A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Delivering reliable commercial power distribution, the FD3050 is a 3-pole, 50A molded case circuit breaker from Eaton. Built with a rugged F-Frame, it provides essential overcurrent protection for demanding industrial applications. This bolt-on MCCB installs into Eaton Series C panelboards, switchboards, and motor control centers. It includes load-side lugs for secure terminations. For modern upgrades, it crosses to the PDG23G0050TFFJ.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD3050-R |
| Series | FD |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panels and equipment are compatible with the FD3050?
This breaker installs directly into Eaton Series C panelboards, switchboards, and motor control centers. Because Eaton maintained the legacy mounting footprint, it will also fit into older Cutler-Hammer and Westinghouse distribution equipment designed for F-frame bolt-on breakers.
Can the FD3050 replace an older Cutler-Hammer or Westinghouse breaker with the same part number?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. The current FD3050 serves as a direct, backward-compatible replacement for legacy Cutler-Hammer or Westinghouse FD3050 models, sharing the exact same physical dimensions and mounting configuration.
Is the FD3050 suitable for reverse feed applications?
Yes. Eaton Series C F-frame circuit breakers are engineered without line and load restrictions. This makes the breaker fully suitable for reverse feed installations where backfeeding the panel is required.
Can this breaker be used for HVAC or specialized lighting circuits?
Yes. The FD3050 carries a HACR rating, making it code-compliant for heating, air conditioning, and refrigeration systems. Additionally, because its rating falls within the 10 to 50 amp range, it is certified for use with HID (high-intensity discharge) lighting loads.
How are the line and load connections configured on this breaker?
The line side features a standard bolt-on connection to attach directly to the panel bus. The load side comes equipped with standard mechanical lugs that accept 14 to 1/0 AWG copper or aluminum wire.
