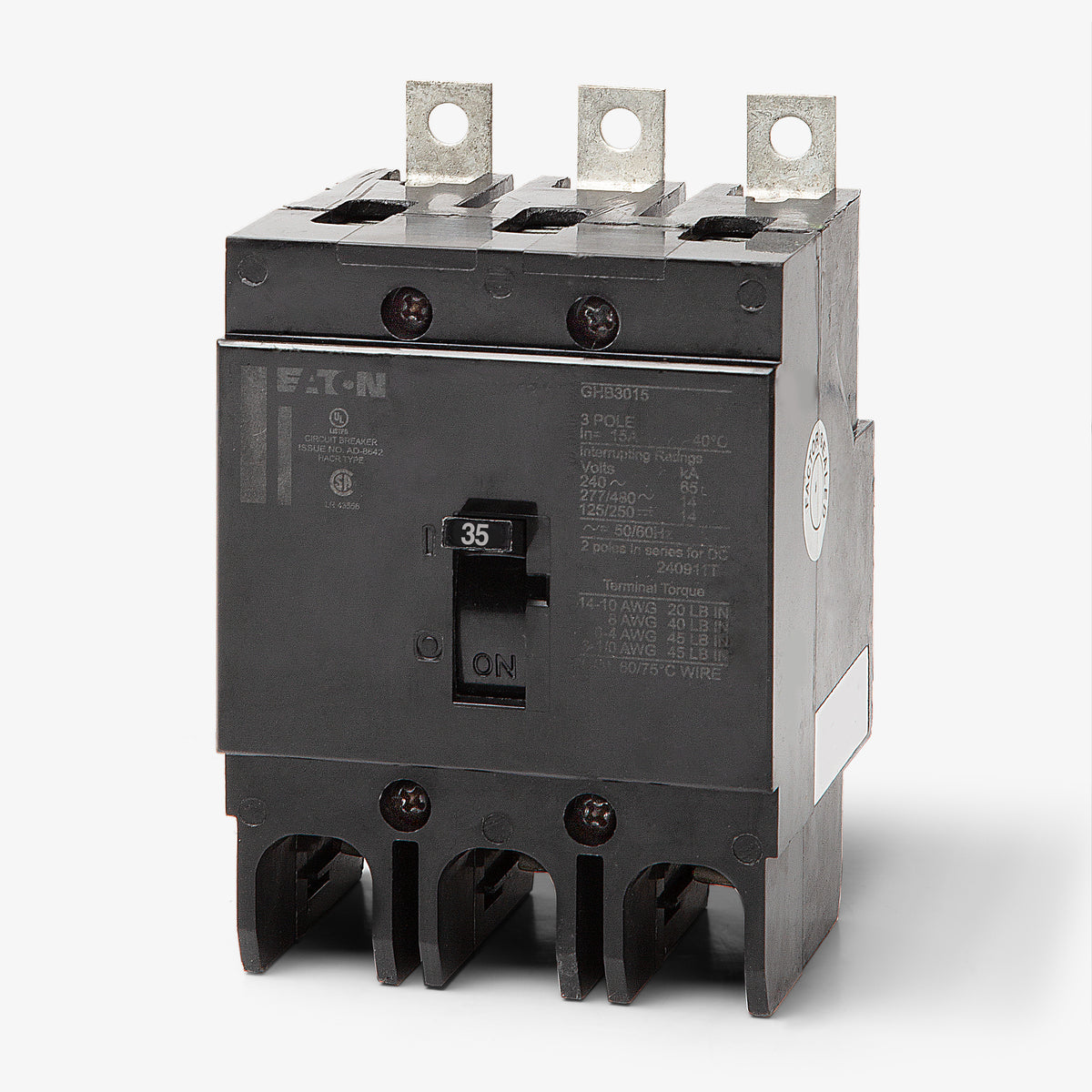

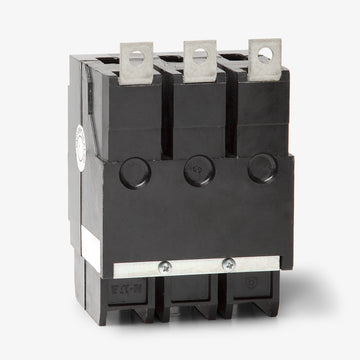

Eaton / Cutler-Hammer GHB3035 Molded Case Circuit Breaker
- 35A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB3035
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB3035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB3035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB3035 - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3035 |
| Series | GHB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line 2 (PRL2) Panelboards, Eaton Pow-R-Line 3 (PRL3) Panelboards, Series C Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Alarm Switch, Auxiliary Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer GHB3035 - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3035-R |
| Series | GHB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line 2 (PRL2) Panelboards, Eaton Pow-R-Line 3 (PRL3) Panelboards, Series C Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Alarm Switch, Auxiliary Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
Eaton / Cutler-HammerGHB3040S1
40A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3030S1
30A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial applications, this 35-amp G-Frame circuit breaker provides essential long-time and instantaneous trip functions. The bolt-on configuration ensures a secure connection within Eaton Pow-R-Line 2, Pow-R-Line 3, and Series C panelboards. Operating at up to 480Y/277VAC, it offers a 14 kA interrupting capacity to safely clear electrical faults. The unit is HACR rated and supports reverse feeding for flexible installation in complex distribution systems.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3035 |
| Series | GHB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line 2 (PRL2) Panelboards, Eaton Pow-R-Line 3 (PRL3) Panelboards, Series C Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Alarm Switch, Auxiliary Switch, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the GHB3035 circuit breaker?
This G-Frame breaker installs natively into Eaton Pow-R-Line 2 (PRL2), Pow-R-Line 3 (PRL3), and Series C panelboards. It is also completely compatible with older Cutler-Hammer and Westinghouse panelboards designed for GHB branch breakers.
Can I use this breaker to replace an old Westinghouse GHB3035?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse electrical distribution divisions. The modern Eaton GHB3035 is an authentic, direct replacement for legacy Westinghouse and Cutler-Hammer breakers carrying the exact same catalog number.

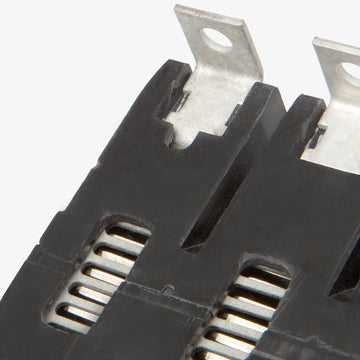

What does a bolt-on mounting style mean for the GHB3035?
As a bolt-on breaker, it fastens directly to the panelboard busbar using mechanical hardware on the line side. This provides a more secure, vibration-resistant electrical connection compared to plug-on breakers, which is frequently required in commercial and industrial specifications.

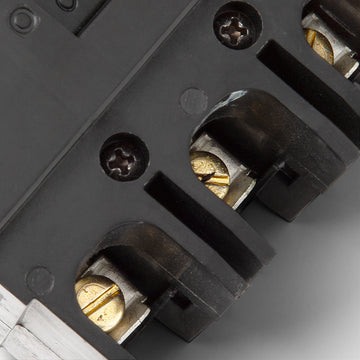

What type of wiring is permitted for the GHB3035 terminals?
The factory-installed pressure lugs are dual-rated for either copper (Cu) or aluminum (Al) conductors. They accept wire sizes ranging from 10 AWG up to 1/0 AWG, providing flexibility for various branch circuit load requirements.
How does the fixed thermal-magnetic trip unit protect the circuit?
The thermal-magnetic (LI) trip mechanism provides two essential layers of protection. The fixed thermal element uses a bimetallic strip to safely disconnect prolonged overloads, while the fixed magnetic element responds immediately to high-fault short circuits.
Is the GHB3035 rated for direct current (DC) systems?
Yes. Beyond its primary commercial 480Y/277VAC rating, this model is fully rated for 125/250VDC applications with a 14kA interrupting capacity, making it suitable for specialized DC control or battery systems.
