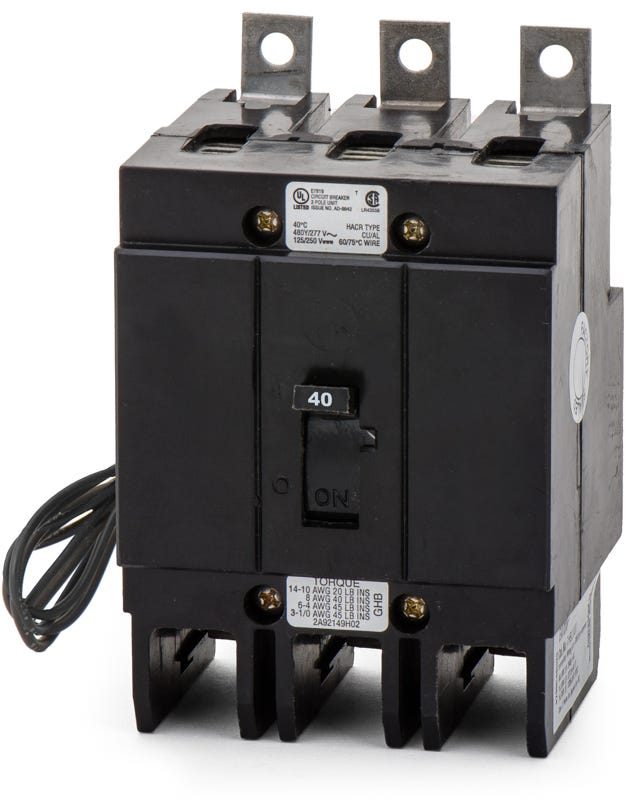

Eaton/Cutler-Hammer GHB3040S1 3 Pole Circuit Breaker
Free Shipping Over $99

Eaton / Cutler-Hammer GHB3040S1 Molded Case Circuit Breaker

  • 40A
  • 3 Pole
  • Bolt-On
Eaton / Cutler-Hammer GHB3040S1
Molded Case Circuit Breaker
Brand Eaton / Cutler-Hammer
SKU GHB3040S1
Select Item Condition
Earn 1795 SuperPoints
  • 40A
  • 3 Pole
  • Bolt-On

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
Eaton/Cutler-Hammer GHB3040S1 3 Pole Circuit Breaker

Eaton / Cutler-Hammer GHB3040S1 - 40A 3 Pole Molded Case Circuit Breaker

New

$1,795.00 In Stock

Quantity

Similar Items

Description SpecificationsProduct FAQs SuperClub Warranties Shipping Reviews 4.8 (30)

Description

Built for advanced control, the GHB3040S1 is a 3-pole, 40A molded case circuit breaker featuring a factory-installed 120VAC shunt trip. This allows facility managers to remotely open the circuit for emergency shutdowns or automated processes. This Series C G-frame breaker installs into Eaton Pow-R-Line C panelboards, switchboards, and legacy Westinghouse PRL2 panels. The bolt-on connection provides a secure fit for commercial power systems.

Specifications

Key specifications
Brand Eaton / Cutler-Hammer
Part Number GHB3040S1
Series GHB
Amperage 40A
Poles 3
Mounting Style Bolt-On
Voltage 240VAC, 480Y/277VAC, 125/250VDC
Phase 3
AIC Rating 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC
Fit and installation
Terminal Type Lugs
For Use With Eaton Pow-R-Line C Panelboards, Series C Panelboards, Westinghouse PRL2 Panelboards
Wire Gauge #10-1/0 AWG (Cu/Al)
Max Wire 1/0 AWG
Min Wire 10 AWG
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Standards and features
Available Options Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Shunt Trip (120VAC)
Standards CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed, Non-Interchangeable Trip

Product FAQs

7 answers
Which panelboards accept the GHB3040S1 circuit breaker?

This bolt-on G-frame breaker is compatible with Eaton Pow-R-Line C panelboards, Series C panelboards, and legacy Westinghouse PRL2 panelboards.

What does the S1 suffix mean on the GHB3040S1?

The S1 suffix indicates that the breaker is equipped with a factory-installed 120VAC shunt trip. This allows the breaker to be opened remotely for emergency shutdowns or automated control.

Can the GHB3040S1 replace older Westinghouse breakers?

Yes, Eaton acquired the Westinghouse circuit breaker division. The GHB3040S1 is a direct replacement for legacy Westinghouse GHB breakers with the same catalog number and shunt trip requirements.

Can the GHB3040S1 be reverse fed?

Yes, this thermal magnetic breaker is suitable for reverse feed applications, allowing it to be used as a main breaker or in back-fed setups where permitted by local codes.

What wire sizes are supported by the terminals on the GHB3040S1?

The standard lugs accept 10 AWG to 1/0 AWG wire and are rated for both copper and aluminum conductors.

Can the GHB3040S1 be used in DC power systems?

Yes, this breaker is rated for use in direct current applications up to 125/250VDC, providing a 14kA interrupting capacity for DC circuits.

Are the thermal and magnetic trip settings adjustable on this breaker?

No, the GHB3040S1 features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) protection functions are factory set and cannot be field adjusted.
