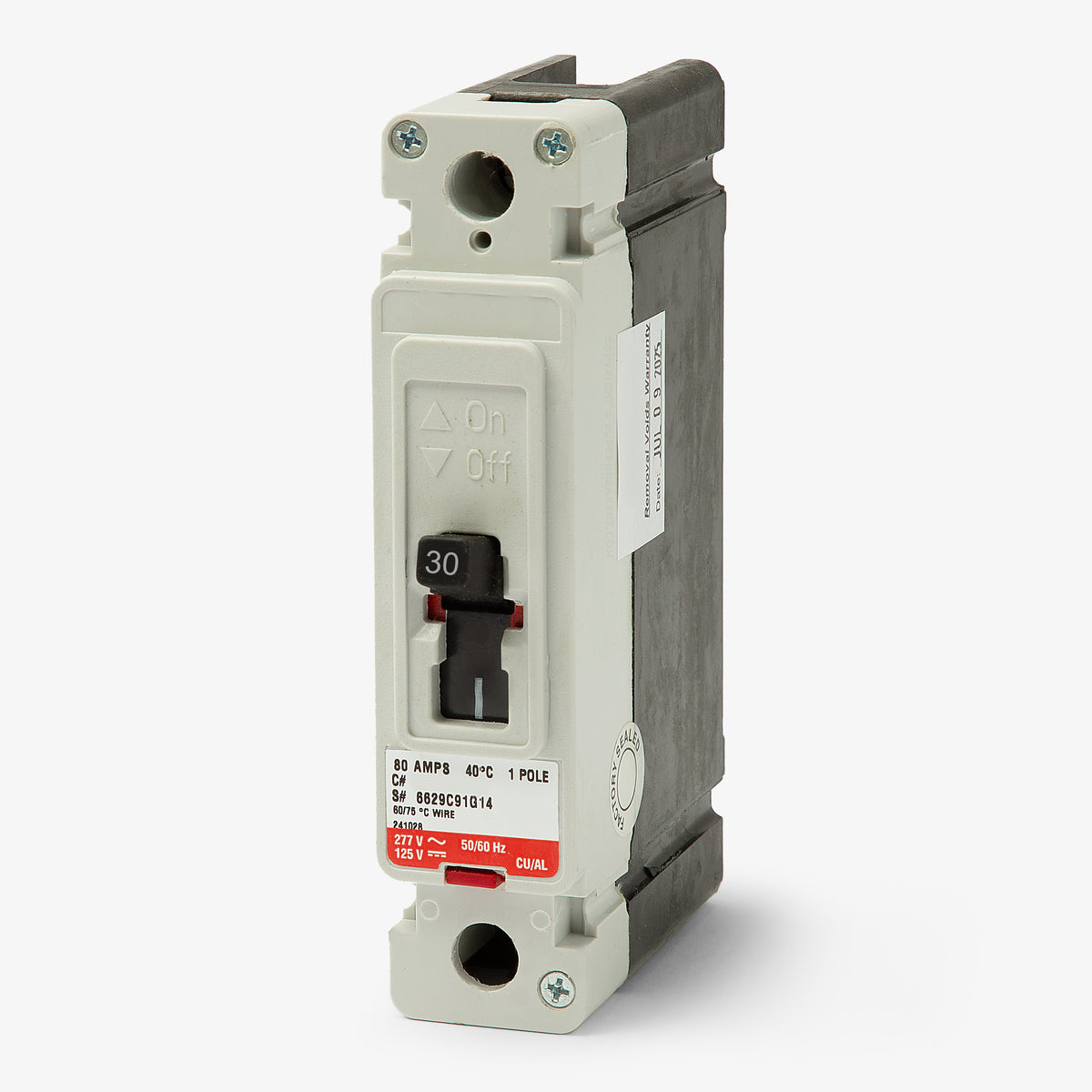

Eaton / Cutler-Hammer HFD1030 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
HFD1030
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFD1030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFD1030 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer HFD1030 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD1030 |
| Series | HFD |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 277VAC, 10kA @ 125VDC, 35kA @ 347VAC |
| Frame Type | FD |
|---|---|

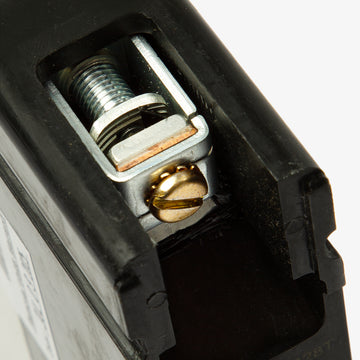

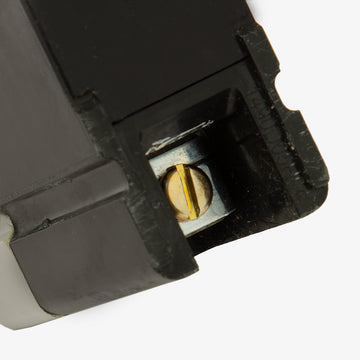

| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Lock |
|---|---|
| Accessories | Load Side Lug |
| Standards | HACR, HID, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, High Interrupting Capacity, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer HFD1030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD1030-R |
| Series | HFD |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 277VAC, 10kA @ 125VDC, 35kA @ 347VAC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Lock |
|---|---|
| Accessories | Load Side Lug |
| Standards | HACR, HID, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, High Interrupting Capacity, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Similar Items
20A 1 Pole Molded Case Circuit Breaker
80A 1 Pole Molded Case Circuit Breaker
90A 1 Pole Molded Case Circuit Breaker
Description
Designed for high-capacity power distribution, this 30A thermal-magnetic breaker delivers reliable overcurrent protection. It mounts into Eaton Series C enclosures, Pow-R-Line panelboards, and motor control centers using a standard bolt-on configuration. With a 65kAIC rating at 277VAC, this current-limiting device minimizes let-through energy during faults. It carries HACR and HID certifications, making it highly versatile for heavy-duty lighting and HVAC equipment loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD1030 |
| Series | HFD |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 277VAC, 10kA @ 125VDC, 35kA @ 347VAC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Lock |
|---|---|
| Accessories | Load Side Lug |
| Standards | HACR, HID, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, High Interrupting Capacity, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Product FAQs
4 answersWhat is the difference between the Eaton FD1030 and HFD1030 circuit breakers?
Both are 1-pole, 30-amp Series C F-frame breakers with identical physical dimensions, but they have different interrupting capacities. The "H" in HFD1030 designates a high-interrupting rating of 65kAIC at 277VAC, whereas the standard FD1030 has a lower short-circuit rating.
Can the Eaton HFD1030 replace older Westinghouse or Cutler-Hammer HFD breakers?
Yes. Eaton acquired the distribution equipment divisions of both Westinghouse and Cutler-Hammer. The modern Eaton HFD1030 is a direct, backward-compatible replacement for older Westinghouse and Cutler-Hammer breakers sharing the same catalog number.
Can the HFD1030 circuit breaker be reverse fed?
Yes. Eaton Series C F-frame thermal-magnetic circuit breakers, including the HFD1030, are suitable for reverse feed applications.
What equipment is compatible with the HFD1030 breaker?
The HFD1030 is designed for installation in Eaton Series C panelboards, Pow-R-Line panelboards, switchboards, and motor control centers that are configured to accept F-frame bolt-on circuit breakers.
