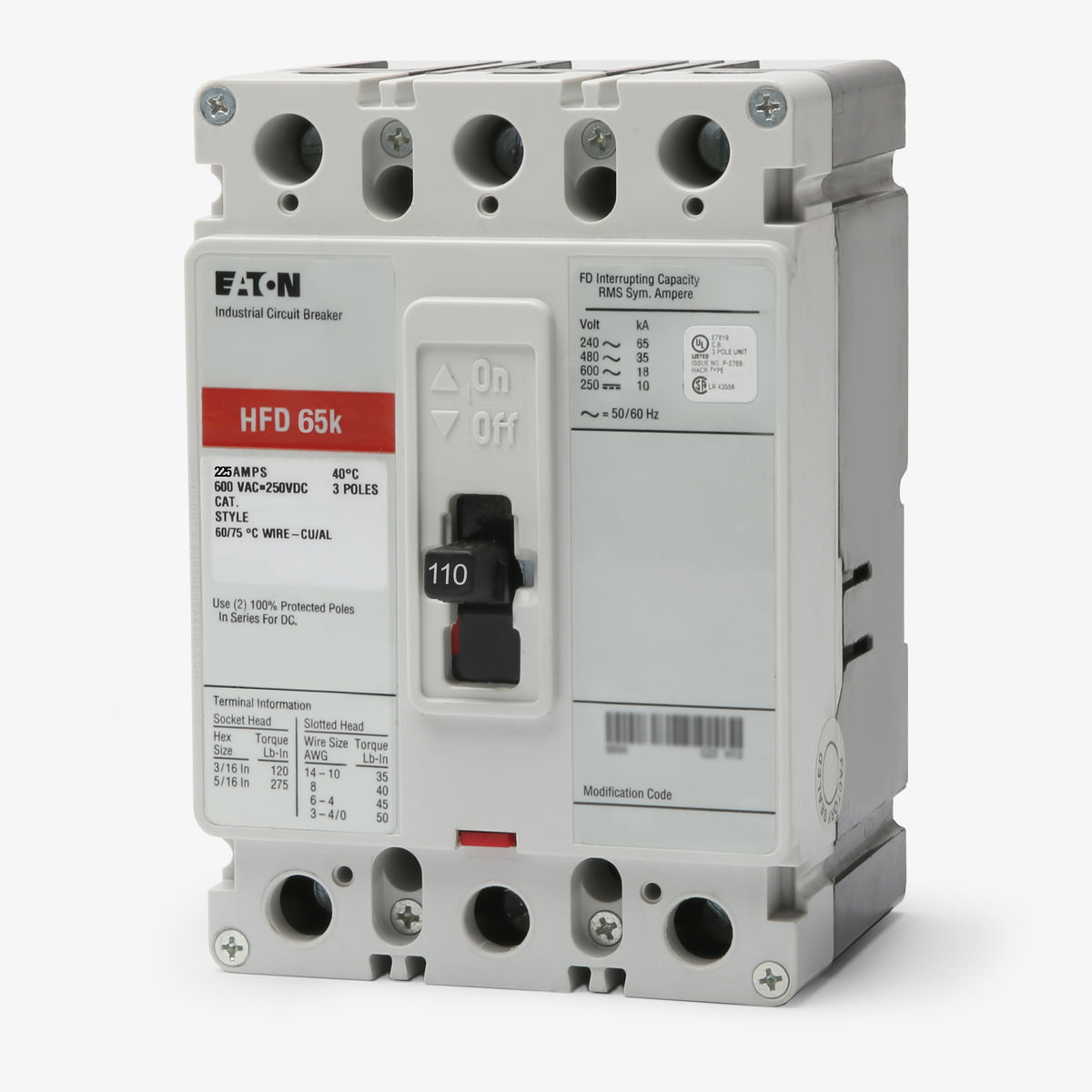

Eaton / Cutler-Hammer HFD3110 Molded Case Circuit Breaker
- 110A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
HFD3110
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFD3110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFD3110 - 110A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer HFD3110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3110 |
| Series | HFD |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed |
Quantity
Eaton / Cutler-Hammer HFD3110 - 110A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3110-R |
| Series | HFD |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Serving as a core component in commercial power distribution, this 110A molded case breaker delivers proven long-time and instantaneous trip functions. The unit installs into standard Eaton Series C panelboards and switchboards requiring F-Frame dimensions. With a robust 65kAIC interrupting capacity at 480VAC, it handles demanding fault conditions effectively. Facilities looking to modernize their infrastructure can substitute this unit with the newer Power Defense PDG23M0110TFFJ model.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3110-R |
| Series | HFD |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed |
Product FAQs
7 answersWhat panelboards are compatible with the HFD3110 circuit breaker?
This F-Frame breaker installs into Eaton and Cutler-Hammer Series C panelboards, switchboards, and motor control centers. It is commonly used in Pow-R-Line 3a (PRL3a) distribution panels.
How does the HFD3110 differ from the FD3110 and FDC3110?
The difference is the maximum interrupting capacity (AIC) at 480VAC. The standard FD3110 is rated for 35kA, the HFD3110 is rated for 65kA, and the FDC3110 provides a 100kA rating.
What is the modern Power Defense replacement for the HFD3110?
Facilities upgrading to the newer Eaton Power Defense platform can replace this unit with catalog number PDG23M0110TFFJ. Note that installing a Power Defense breaker into older Series C equipment requires updated mounting hardware.
Can the HFD3110 be reverse fed?
Yes. Standard thermal-magnetic Eaton Series C F-Frame circuit breakers are suitable for reverse feed applications.
Is this 110A Eaton breaker HACR rated?
Yes, all Eaton Series C F-Frame molded case circuit breakers carry an HACR rating, making them suitable for overcurrent protection in heating, air conditioning, and refrigeration equipment circuits.
Can this 3-pole breaker be used in a single-phase application?
Yes. When using this 3-pole breaker for a 2-pole or single-phase application, Eaton recommends wiring the load using the two outside poles.
What wire sizes do the factory lugs on the HFD3110 accept?
The included standard pressure terminals accept copper or aluminum (Cu/Al) conductors ranging from 4 AWG to 4/0 AWG.
