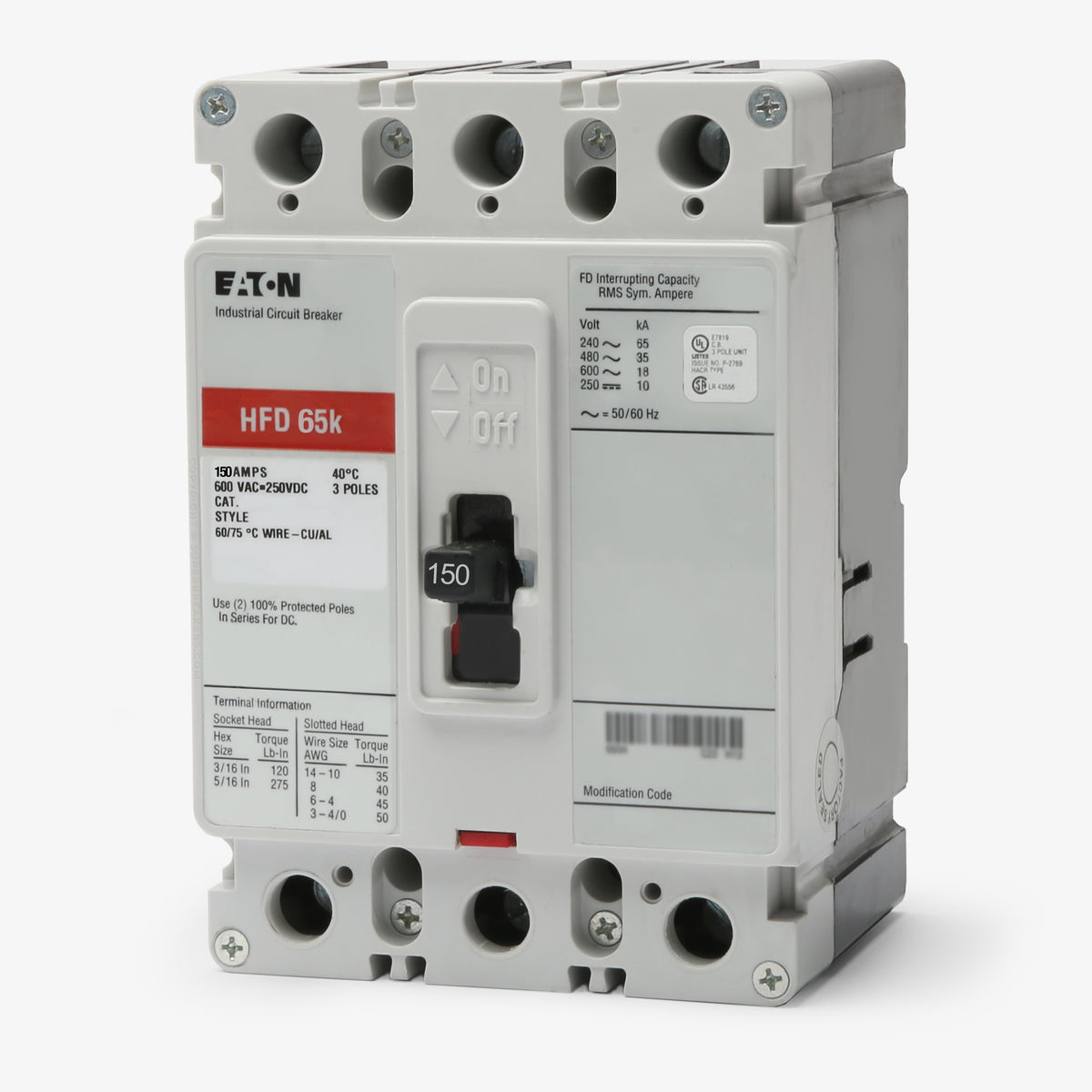

Eaton / Cutler-Hammer HFD3150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
HFD3150
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFD3150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFD3150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer HFD3150 - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3150 |
| Series | HFD |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4-4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed |
Quantity
Eaton / Cutler-Hammer HFD3150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3150-R |
| Series | HFD |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4-4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed |
Similar Items
100A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Providing essential branch circuit protection, the Eaton HFD3150 is a 150A, 3-pole molded case circuit breaker. It utilizes fixed thermal-magnetic trip units to safeguard electrical systems against overloads. As an F-Frame breaker, it integrates into Eaton Series C switchboards and panelboards. Facilities looking to modernize can substitute this unit with the Power Defense PDG23M0150TFFJ. With a 65kAIC rating at 480VAC, it offers excellent fault current limitation and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3150-R |
| Series | HFD |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4-4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed |
Product FAQs
6 answersWhat is the difference between Eaton FD and HFD circuit breakers?
Both belong to the Eaton Series C F-frame family and share the exact same physical dimensions and mounting footprint. The difference lies in their short-circuit interrupting capacity. The HFD is the high-interrupting version, whereas the standard FD frame has lower fault ratings.
Can the Eaton HFD3150 replace an older Westinghouse HFD3150?
Yes. Eaton acquired the Westinghouse distribution equipment business and continues to manufacture the Series C line. The current Eaton HFD3150 is a direct, UL-listed drop-in replacement for legacy Cutler-Hammer and Westinghouse breakers bearing the same catalog number.
Is the HFD3150 suitable for reverse feed installations?
Yes. Eaton Series C F-frame thermal-magnetic breakers, including this 150A model, do not have line and load side restrictions. They are fully tested and approved for reverse feed applications.
Can this breaker be installed in a residential load center?
No. The HFD3150 is a panel-mount, molded case circuit breaker designed for commercial and industrial Eaton Series C panelboards, switchboards, and motor control centers. It will not physically fit or connect into standard plug-on residential breaker boxes.
What is required to use this breaker in a 250VDC system?
While this breaker is rated for up to 250VDC, applying a 3-pole molded case circuit breaker in a DC circuit typically requires specific pole-wiring configurations, such as wiring multiple poles in series, to safely clear DC faults. Electricians must consult the manufacturer's DC wiring diagrams prior to installation.
Is the HFD3150 HACR rated?
Yes. All Eaton Series C F-frame circuit breakers carry a HACR rating, making them suitable and code-compliant for group motor applications in heating, air conditioning, and refrigeration equipment.
