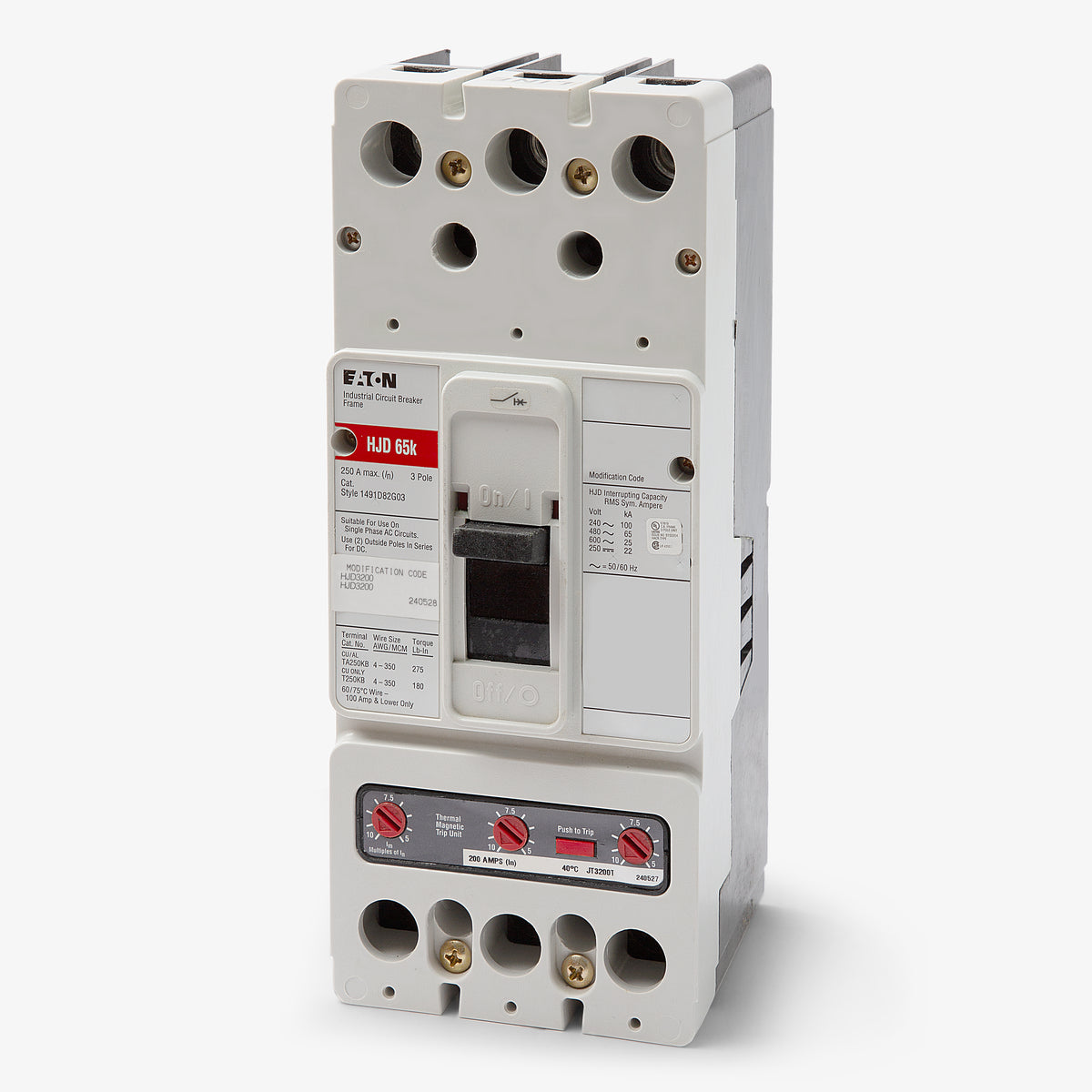

Eaton / Cutler-Hammer HJD3200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
HJD3200
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HJD3200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HJD3200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer HJD3200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HJD3200 |
| Series | HJD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Legacy Westinghouse Panelboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity, Interchangeable Trip Unit |
Quantity
Eaton / Cutler-Hammer HJD3200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HJD3200-R |
| Series | HJD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Legacy Westinghouse Panelboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity, Interchangeable Trip Unit |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty industrial power distribution, the Eaton HJD3200 delivers 200 amps of reliable molded case circuit protection. It provides thermal-magnetic protection with long-time and instantaneous (LI) trip functions to safeguard critical circuits. This unit installs into Eaton Series C panelboards, motor control centers, and legacy Westinghouse enclosures. It comes standard with TA250KB line and load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HJD3200 |
| Series | HJD |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Legacy Westinghouse Panelboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, High Interrupting Capacity, Interchangeable Trip Unit |
Product FAQs
6 answersWhat is the difference between the HJD3200 and the standard JD3200?
The HJD3200 is the high-interrupting capacity version of Eaton's Series C J-Frame. It delivers a 65kA short-circuit rating at 480VAC, while the standard JD3200 is rated for 35kA at 480VAC. Both share the exact same physical footprint and panelboard compatibility.

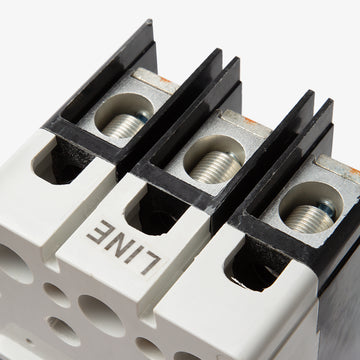

Which lug kit comes standard with this 200A breaker?
This unit is typically equipped with TA250KB line and load lugs. These dual-rated aluminum/copper terminals accept wire gauges from 4 AWG up to 350 kcmil.
What enclosures and equipment will accept the HJD3200?
It is designed for unit-mount installation in Eaton Series C panelboards, motor control centers, and switchboards. It is also backward compatible with legacy Westinghouse enclosures built for standard J-Frame breakers.

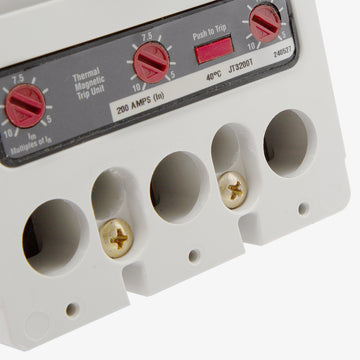

How does the adjustable magnetic trip function operate on this model?
The thermal overload protection is fixed at 200A, but the instantaneous magnetic trip is adjustable. This allows you to dial in the short-circuit pickup threshold, typically between 1000A and 2000A, to ensure proper selective coordination with downstream devices.

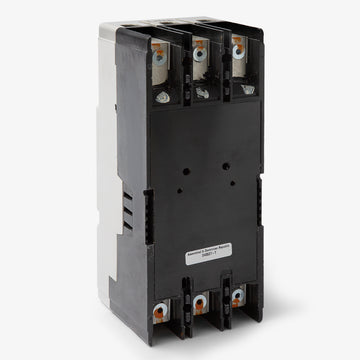

Does this breaker plug onto a busbar or bolt down?
The HJD3200 is a unit-mount (bolt-on) breaker. It requires mechanical fasteners to secure the frame to the equipment chassis or mounting pan, and it cables directly to the bus or load using the provided lug terminals.
Is this circuit breaker HACR rated?
Yes, the HJD3200 carries an HACR rating, making it suitable for use in heating, air conditioning, and refrigeration applications where group motor installations require specifically certified overcurrent protection.
