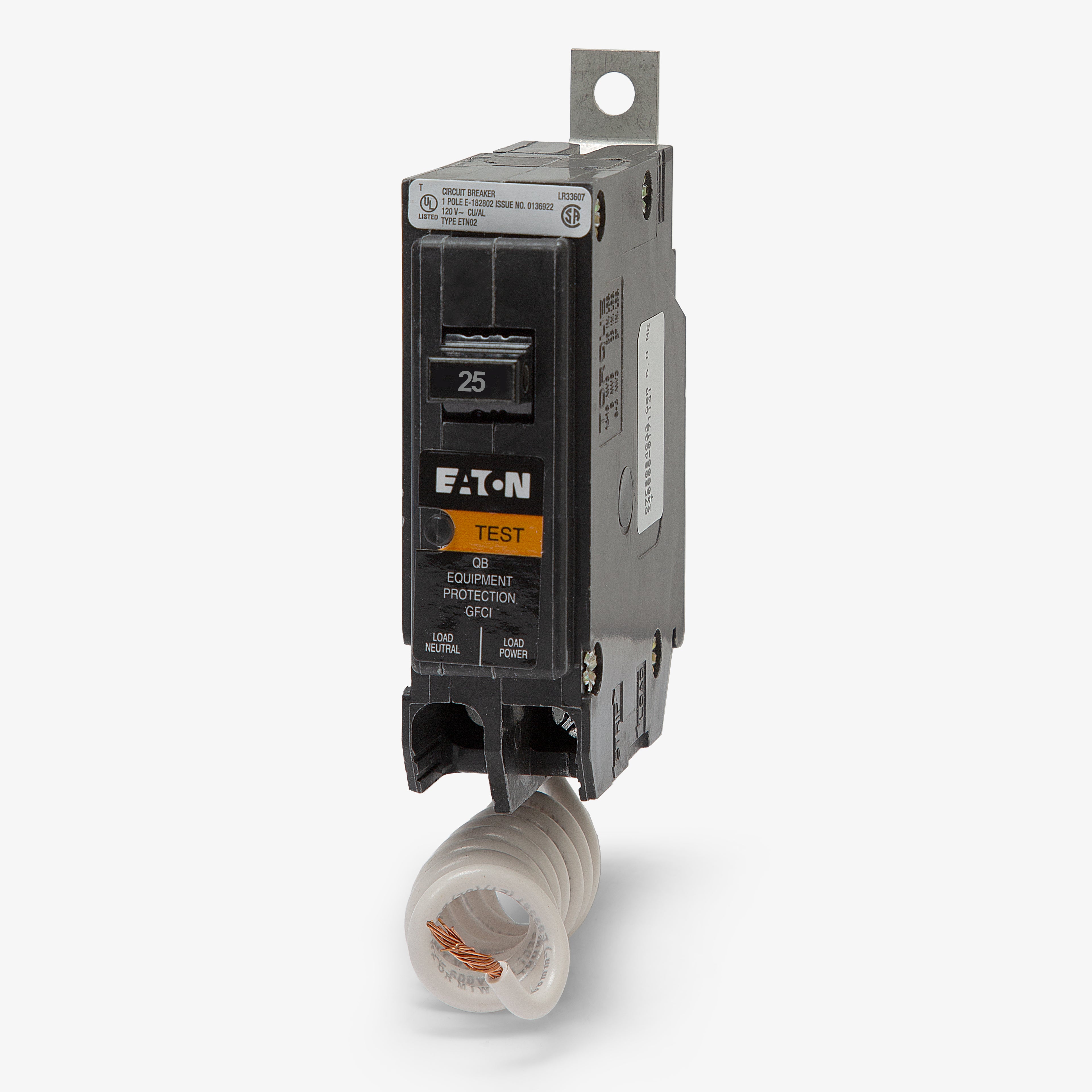

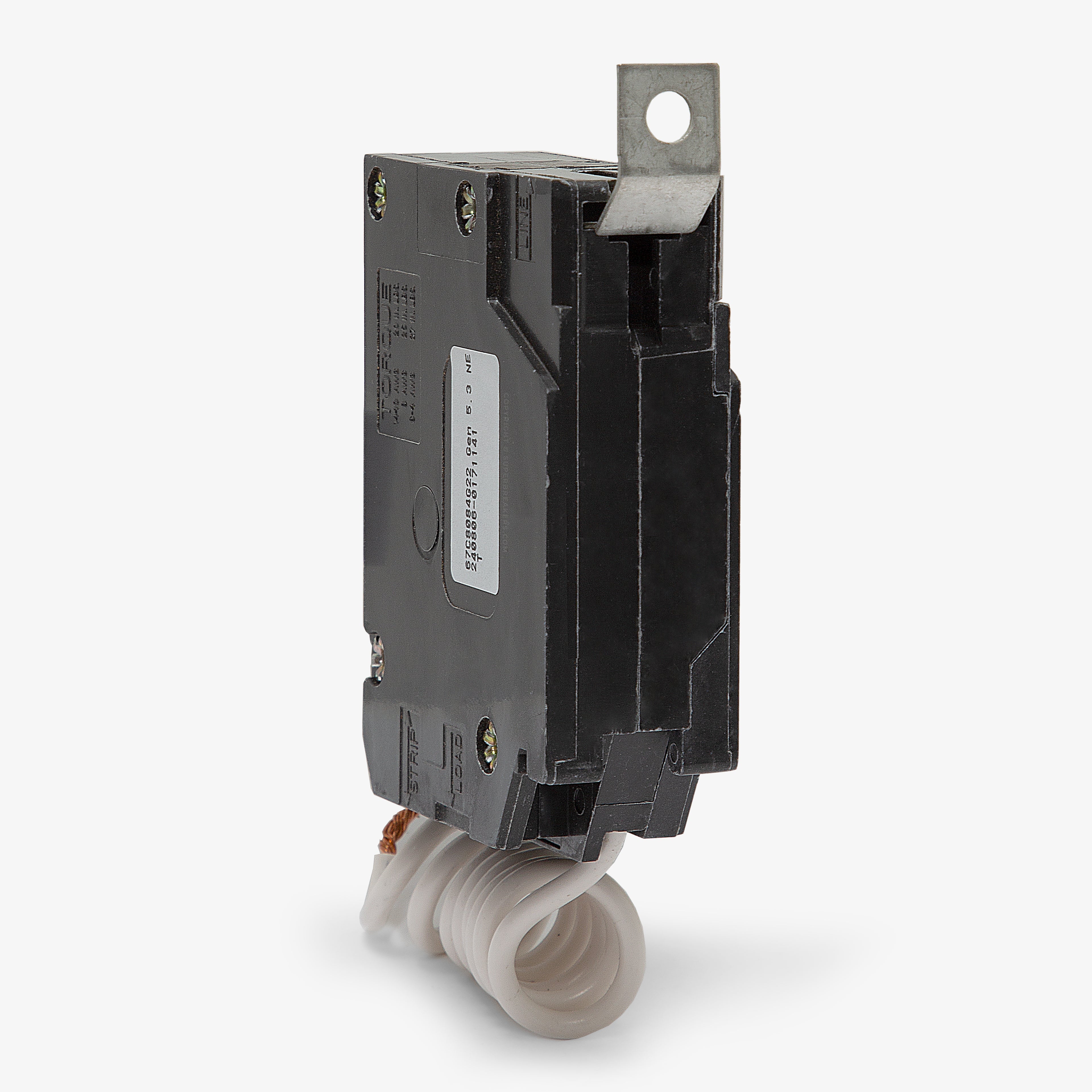

Eaton / Cutler-Hammer QB1025EP GFEP Miniature Circuit Breaker
- 25A
- 1 Pole

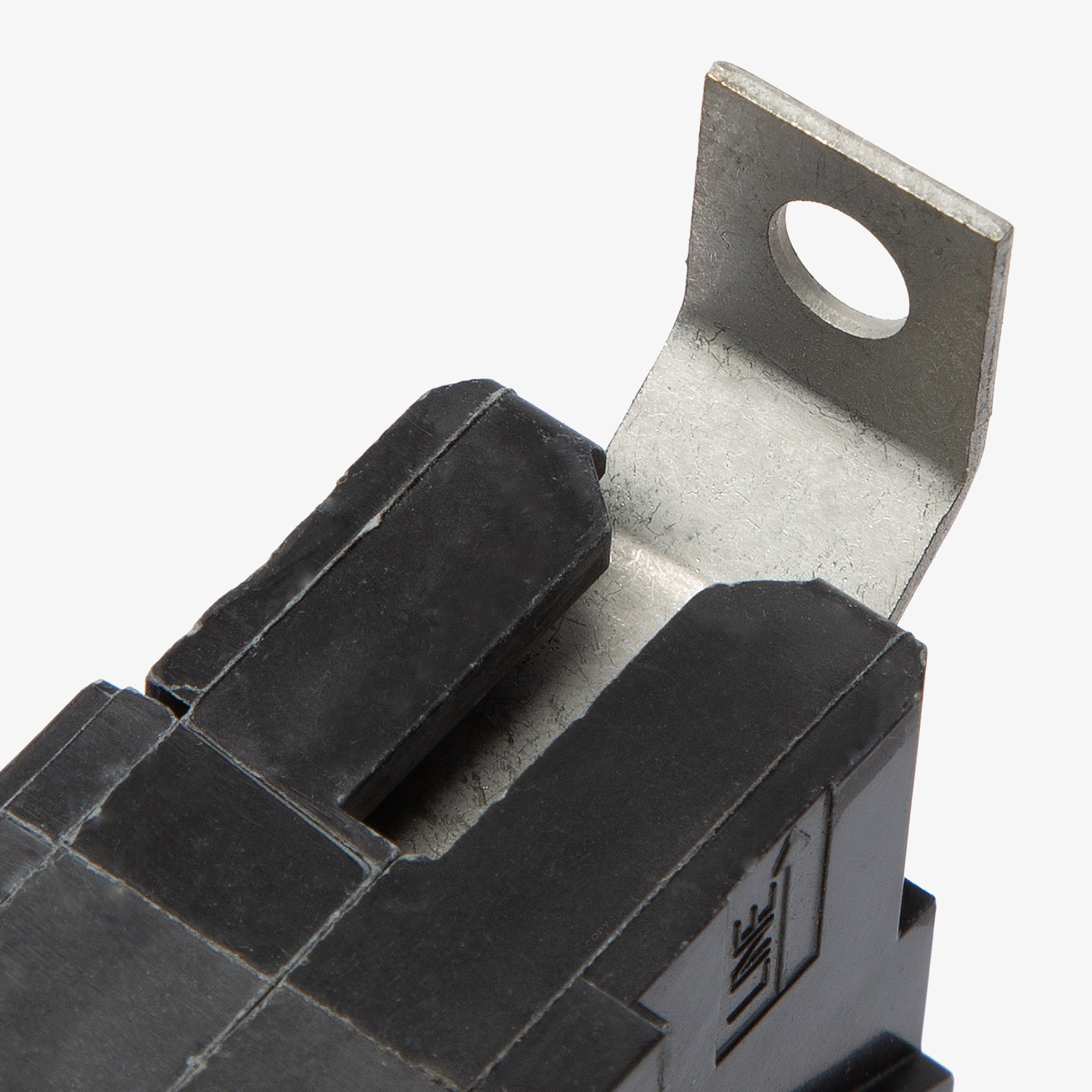

- Bolt-On
Eaton / Cutler-Hammer
QB1025EP
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QB1025EP
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QB1025EP - 25A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFEP Miniature Circuit Breaker
15A GFEP Miniature Circuit Breaker
Description
Built for commercial applications, the Eaton QB1025EP is a 25A, single-pole equipment protection breaker. It provides thermal-magnetic overcurrent defense and ground fault monitoring. This bolt-on unit installs into Eaton Pow-R-Line panelboards. It replaces the legacy QBGFEP1025, ensuring seamless integration into 120/240VAC systems. Featuring a 30mA trip sensitivity, it is calibrated for equipment protection rather than personnel safety. It delivers a 10kAIC interrupting rating.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | QB |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included, Pigtail Neutral |
| Standards | HACR, UL 489, UL 1053 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Equipment Protection |
Product FAQs
5 answersWhat is the difference between the QB1025EP and a standard GFCI breaker?
The EP suffix in the catalog number stands for Equipment Protection. It features a 30mA ground fault trip threshold designed to protect machinery and heat tracing equipment, whereas standard GFCI breakers have a 5mA threshold for personnel safety.
Which panelboards accept the QB1025EP circuit breaker?
This BAB-frame breaker is designed exclusively for Eaton and Cutler-Hammer Pow-R-Line commercial panelboards. It requires a bolted connection directly to the panel busbar.
How does the ground fault sensing wire connect in the panel?

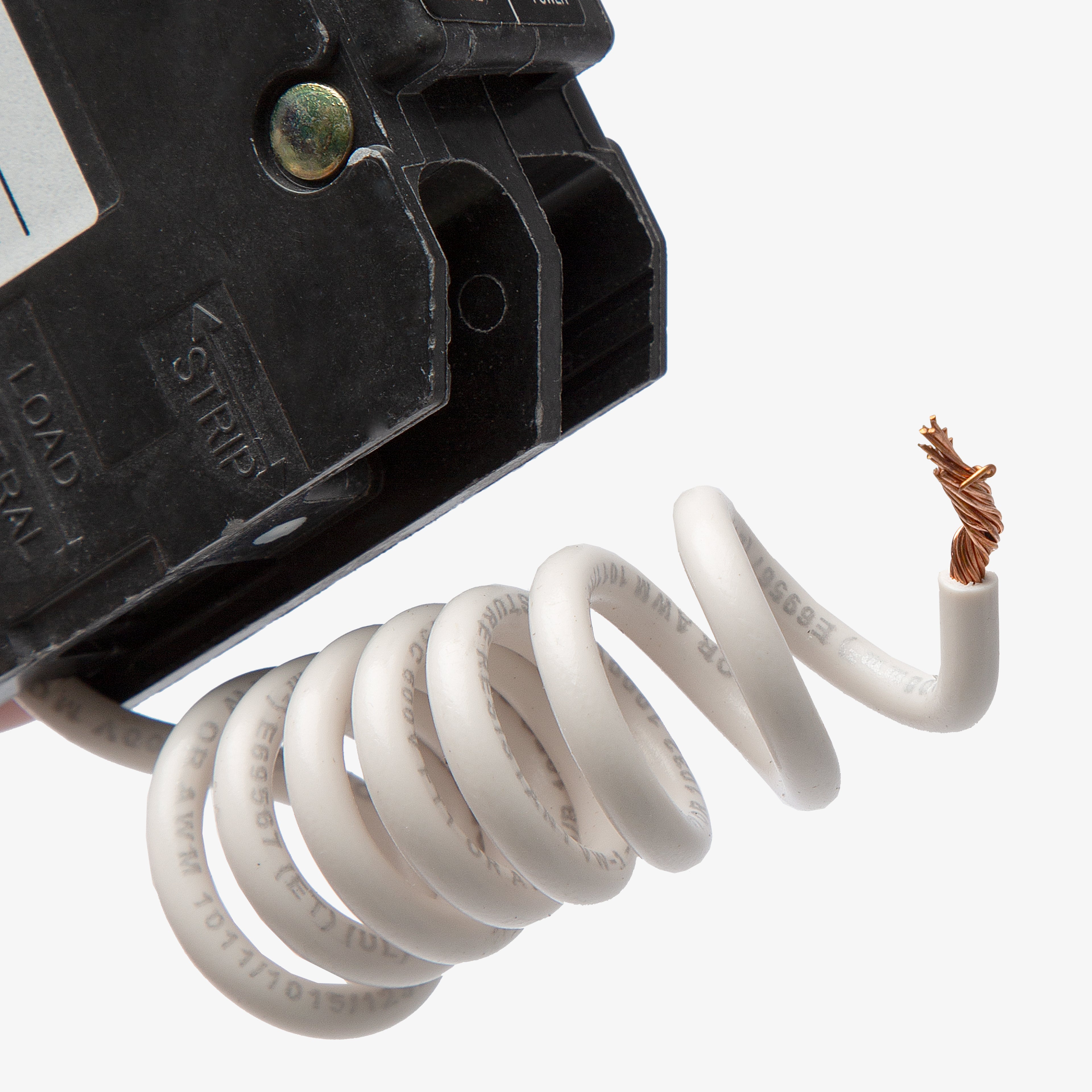

The breaker is equipped with a pigtail neutral wire. This pigtail must be routed and terminated directly to the neutral bus bar in the panelboard for the ground fault equipment protection to function properly.
What is the direct replacement for the legacy QBGFEP1025?
The QB1025EP is the current, direct replacement for the legacy Cutler-Hammer QBGFEP1025 catalog number. Both share the same physical dimensions, 30mA equipment protection rating, and bolt-on mounting.
What wire types and sizes are compatible with the load terminals?
The integrated box lugs accept either copper or aluminum wiring ranging from 14 AWG to 4 AWG. Ensure proper torque specifications are followed during installation.
