Eaton / Cutler-Hammer CVH2060XMM Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CVH2060XMM
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CVH2060XMM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

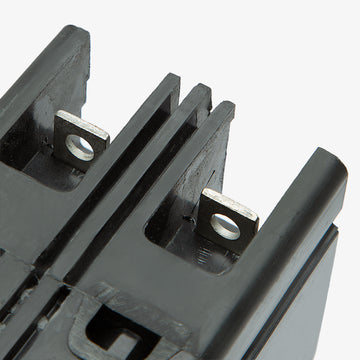

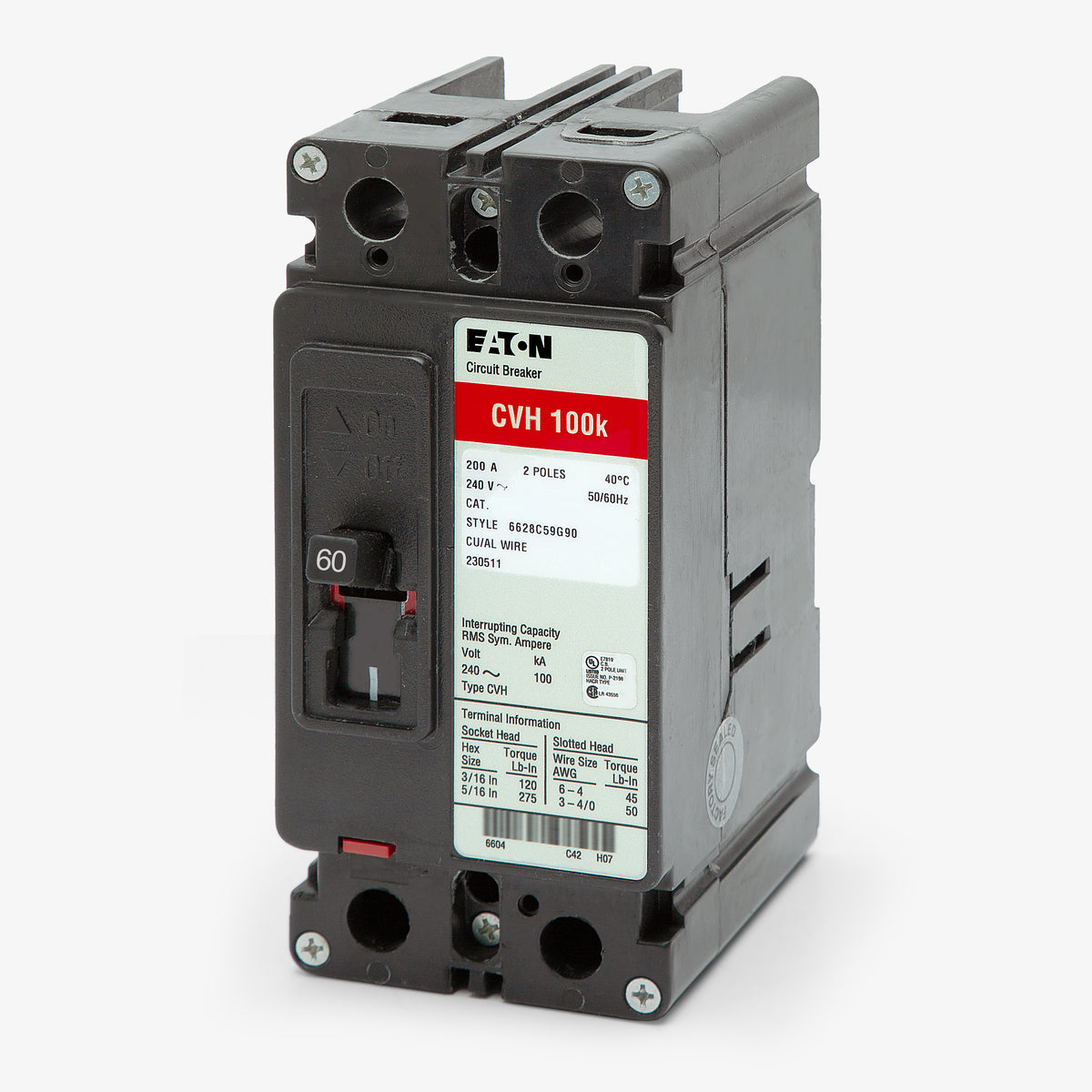

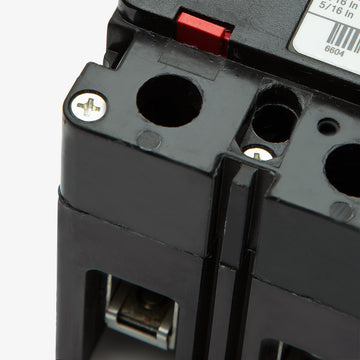

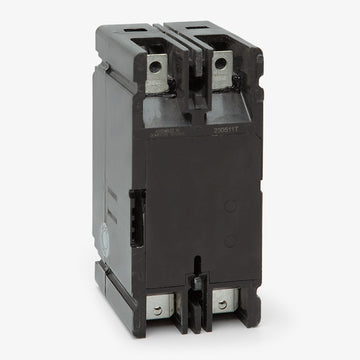

Eaton / Cutler-Hammer CVH2060XMM - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCVH2125XMM
125A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCVH2150XMM
150A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCVH2175XMM
175A 2 Pole Molded Case Circuit Breaker
Description
Built for multi-family service entrances, the CVH2060XMM is a 60A, 2-pole molded case circuit breaker. It features a thermal-magnetic trip unit tailored for residential and commercial group metering. The breaker bolts into Eaton 1MM, 3MM, and 1MP meter stacks using the included MM-suffix mounting kit. It also serves as a drop-in replacement for discontinued CHH2060 models. Boasting a 100 kAIC rating at 120/240VAC, this HACR-rated unit safely clears severe fault currents.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CVH2060XMM |
| Series | CVH |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120/240VAC |
| Frame Type | CV |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Meter Stacks (1MM, 3MM, 1MP) |
| Wire Gauge | 6 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Mounting Kit (Suffix MM) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Tenant Main |
Product FAQs
6 answersWhat legacy circuit breaker does the CVH2060XMM replace?
This unit serves as a direct drop-in replacement for discontinued Eaton and Cutler-Hammer CHH2060 tenant main circuit breakers.
What does the XMM suffix indicate on this Eaton CVH breaker?
The X indicates that the load terminals accept up to 4/0 AWG wire. The MM signifies that the breaker includes the required mounting hardware kit for installation in Eaton 1MP, 1MM, and 3MM residential meter stacks.
What is the difference between Eaton CVS, CV, and CVH tenant main breakers?
The prefix indicates the short circuit interrupting capacity of the breaker frame. CVS is rated for 42 kAIC, CV is rated for 65 kAIC, and CVH is rated for 100 kAIC at 120/240VAC.
Where is the CVH2060XMM typically installed?
This breaker is designed for use as a tenant main circuit breaker in multi-family and commercial group metering applications. It bolts directly into the meter stack and provides a centralized disconnect for individual tenant feeds.
Does this breaker require a separate mounting kit for meter stack installation?
No, the CVH2060XMM ships standard with the necessary mounting hardware kit for bolt-on installation into compatible Eaton residential and commercial meter stacks.
Is the Eaton CVH2060XMM suitable for use with heating, air conditioning, and refrigeration equipment?
Yes, this molded case circuit breaker is HACR rated, making it suitable for protecting multi-family HVAC and refrigeration circuits.
