Eaton / Cutler-Hammer CVH2150XMM Molded Case Circuit Breaker
- 150A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CVH2150XMM
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CVH2150XMM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

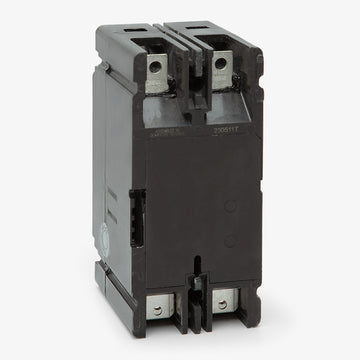

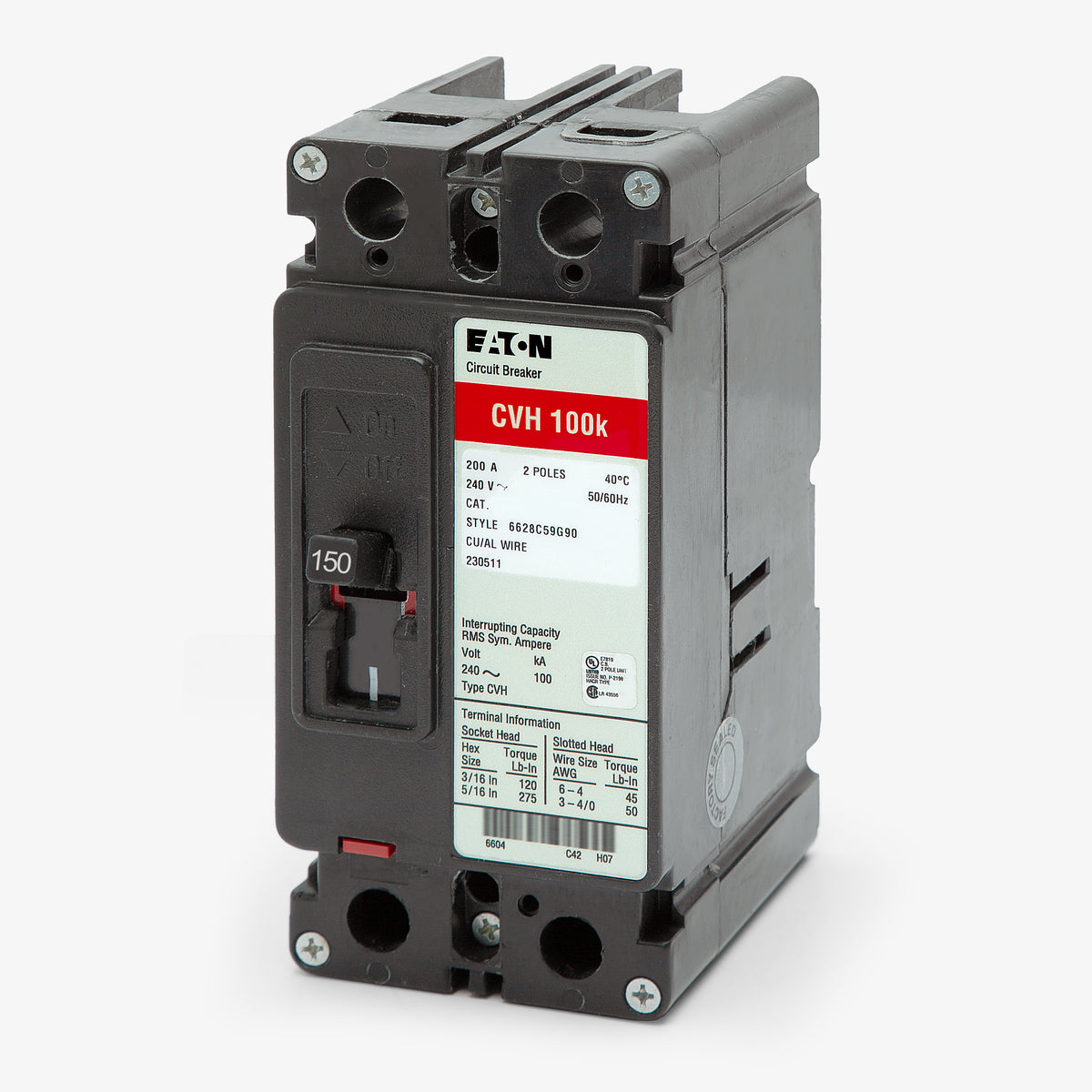

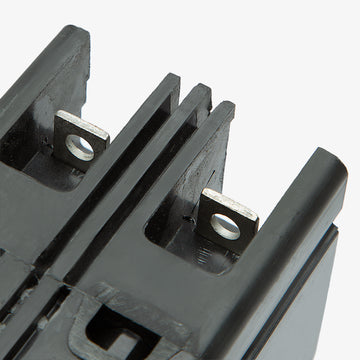

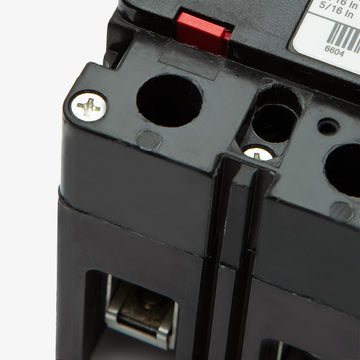

Eaton / Cutler-Hammer CVH2150XMM - 150A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCVH2125XMM
125A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCVH2200XMM
200A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCVH2100XMM
100A 2 Pole Molded Case Circuit Breaker
Description
Part of the CV frame family, this 150A tenant main breaker provides reliable overcurrent protection for residential and commercial multi-metering applications. It mounts into Eaton 1MM, 3MM, and 1MP meter stacks, utilizing the included MM suffix mounting hardware for a secure fit. Rated at a robust 100kAIC at 120/240V, it easily handles high available fault currents. This unit also serves as a functional drop-in replacement for legacy CHH2150 models in existing installations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CVH2150XMM |
| Series | CVH |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Meter Stacks (1MM, 3MM, 1MP) |
| Wire Gauge | 6 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Mounting Kit (Suffix MM) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Tenant Main |
Product FAQs
7 answersWhat meter stacks are compatible with the CVH2150XMM?
This tenant main breaker is designed specifically for group metering applications. It mounts directly into Eaton 1MM, 3MM, and 1MP residential modular meter stacks.
What does the XMM suffix indicate on this Eaton breaker?
The X indicates that the load terminals accept up to 4/0 AWG wire. The MM suffix signifies that the breaker includes the 1MMCBK mounting hardware kit required for installation in 200A modular metering stacks.
Can the CVH2150XMM replace older Cutler-Hammer tenant breakers?
Yes, this breaker serves as a functional drop-in replacement for legacy Cutler-Hammer CHH2150 tenant main breakers in existing multi-metering installations.
How does the CVH2150XMM differ from the CV2150 and CVS2150?
While these models share the same physical CV frame and 150A rating, they feature different short-circuit interrupting capacities. The CVS is rated at 42kAIC, the standard CV is rated at 65kAIC, and the CVH provides the maximum 100kAIC rating for systems with high available fault currents.
Do I need to purchase a separate mounting kit to install this breaker?
No. The required mounting hardware for securing the breaker to the meter stack bus is included with this specific XMM catalog number. If you were using a standard CVH2150, you would need to order the 1MMCBK kit separately.
What wire sizes are accepted by the load terminals?
The factory-installed load lugs accept copper or aluminum conductors ranging from 6 AWG up to 4/0 AWG. Always torque the terminal screws to the specifications printed directly on the breaker label.
Does this breaker provide ground fault or arc fault protection?
No. The CVH2150XMM is a standard thermal magnetic circuit breaker designed to provide overload and short-circuit protection. It does not include GFCI or AFCI circuitry.
