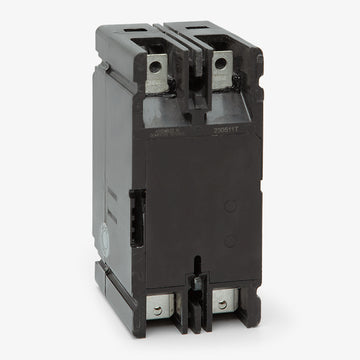

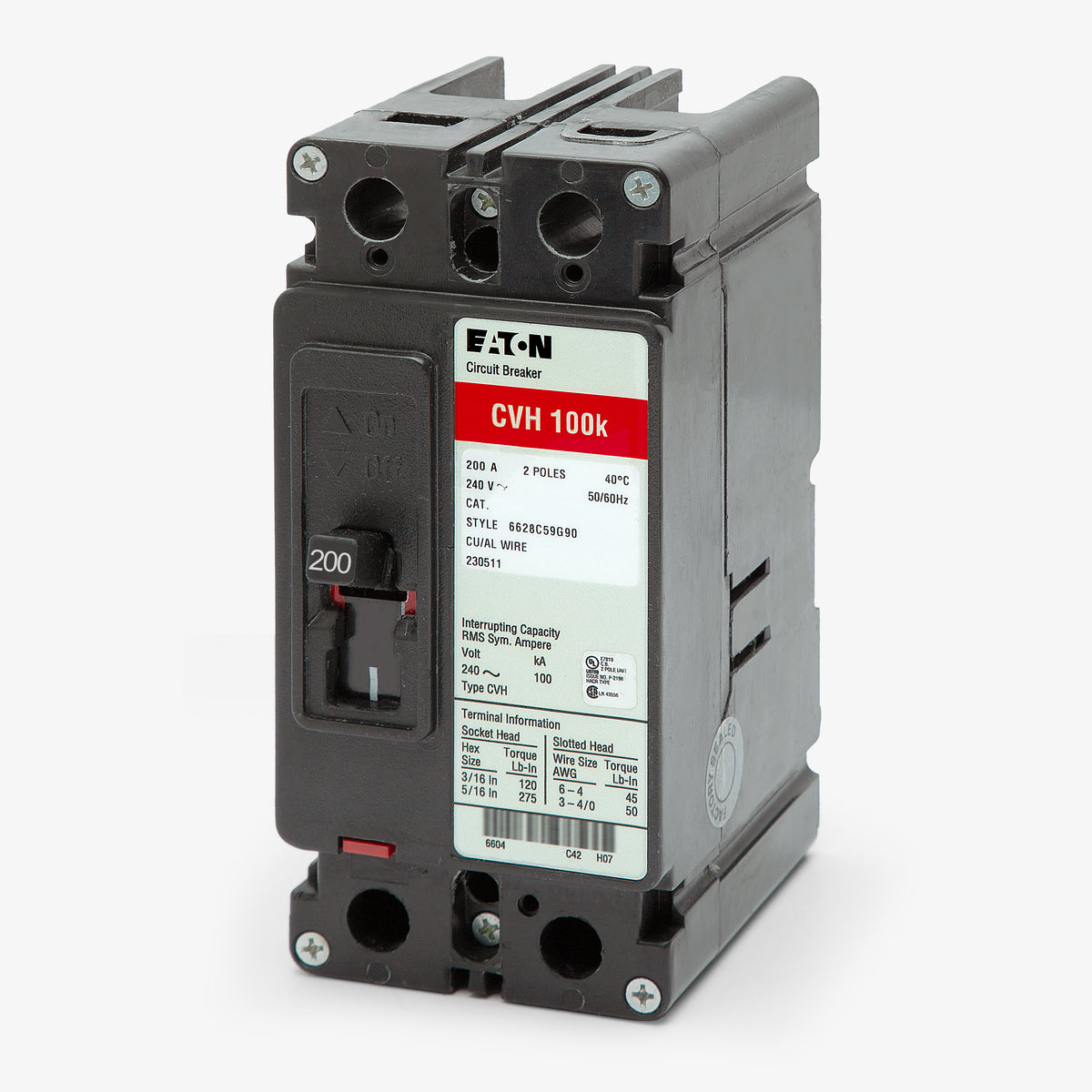

Eaton / Cutler-Hammer CVH2200XMM Molded Case Circuit Breaker
- 200A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CVH2200XMM
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CVH2200XMM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CVH2200XMM - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCVH2175XMM
175A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCVH2150XMM
150A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCVH2125XMM
125A 2 Pole Molded Case Circuit Breaker
Description
Engineered for multi-family residential and commercial applications, the CVH2200XMM delivers reliable 200-amp service disconnect capabilities. This two-pole tenant main features a high interrupting capacity of 100 kAIC at 120/240V. The unit installs into Eaton 1MM, 3MM, and 1MP modular meter stacks. The "MM" suffix indicates the inclusion of the required mounting kit. It also serves as a functional replacement for older CHH2200 components. Standard fixed trip settings provide LI protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CVH2200XMM |
| Series | CVH |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Meter Stacks (1MM, 3MM, 1MP) |
| Wire Gauge | 6 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Mounting Kit (Suffix MM) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, High Interrupting Capacity |
Product FAQs
6 answersWhat meter stacks are compatible with the CVH2200XMM?
This breaker is designed for use as a tenant main in Eaton 1MP, 1MM, and 3MM residential and commercial meter stacks.
What does the XMM suffix in the CVH2200XMM catalog number indicate?
The XMM suffix indicates two factory modifications. The X denotes load terminals that accept up to 4/0 AWG wire, and the MM indicates the inclusion of a mounting hardware kit for 200A 1MP, 1MM, and 3MM meter stacks.
Is the CVH2200XMM suitable for systems with high available fault currents?
Yes, the CVH series features a 100kAIC interrupting rating at 240V, providing robust protection for multi-tenant metering applications where high fault currents are present.
What wire sizes are accepted by the load terminals on the CVH2200XMM?

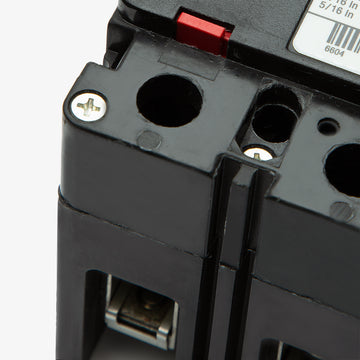

The factory-installed load lugs accept 6 AWG through 4/0 AWG copper or aluminum conductors.
How does the CVH2200XMM connect to the meter stack bus?

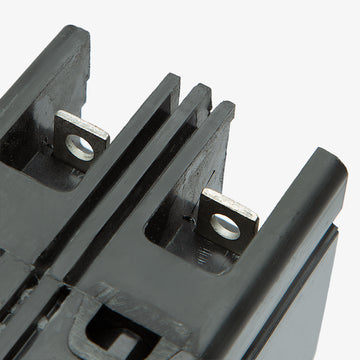

The breaker features a bolt-on line connection that mounts directly to the meter stack bus, while the load side utilizes standard mechanical lugs for the tenant feeder wires.
Can the CVH2200XMM replace older Cutler-Hammer tenant main breakers?
Yes, the Eaton CVH series serves as a direct replacement for legacy Cutler-Hammer CHH tenant main circuit breakers in compatible group metering applications.
