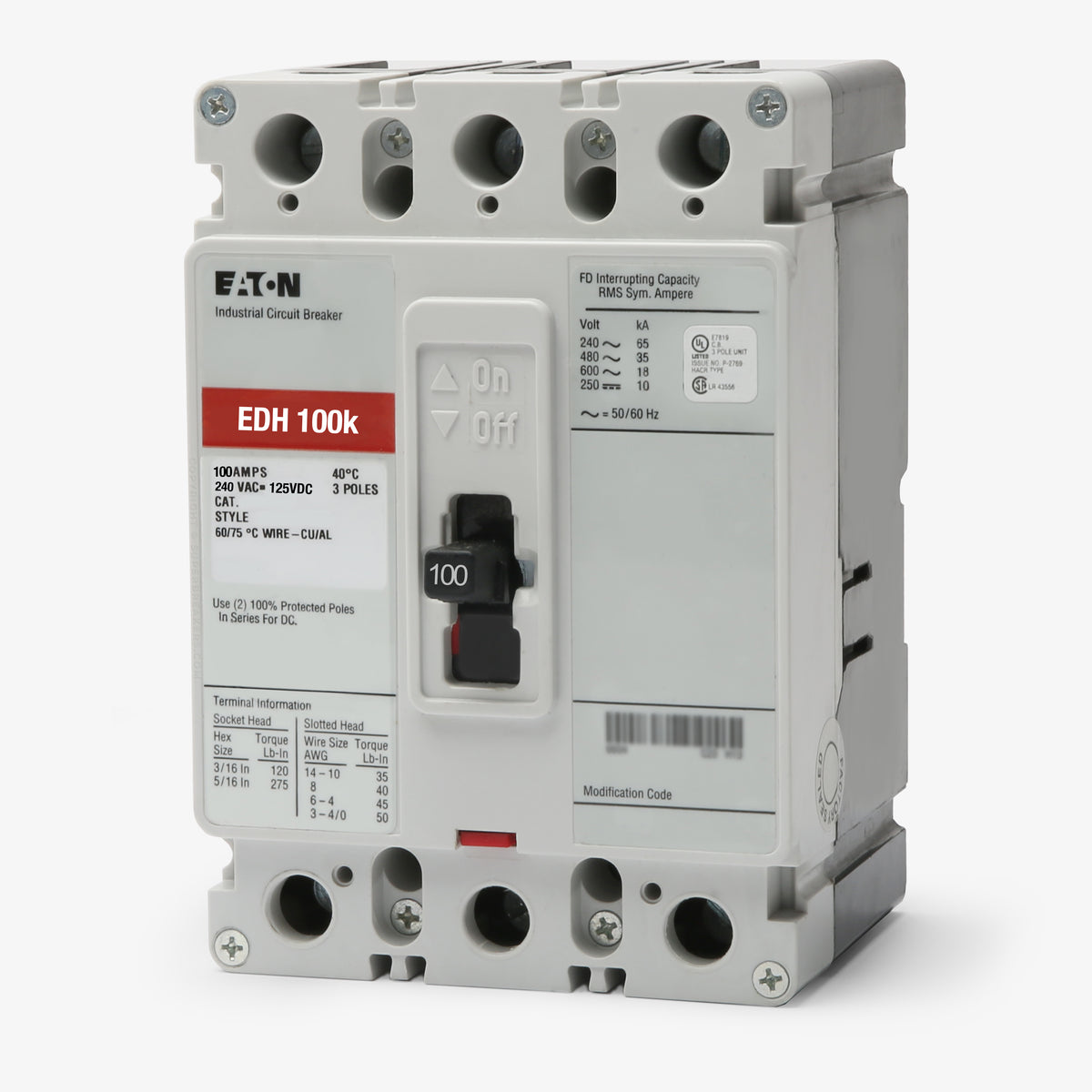

Eaton / Cutler-Hammer EDH3100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
EDH3100
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EDH3100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EDH3100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer EDH3100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EDH3100 |
| Series | EDH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 10kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer EDH3100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EDH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 10kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Designed for three-phase commercial systems, the EDH3100 is a 100A molded case circuit breaker in the Series C family. It uses fixed thermal-magnetic trip units for accurate LI protection. The bolt-on configuration allows secure mounting into Series C panelboards and switchboards. It replaces legacy HFD3100 units and crosses to the PDG23M0100TFFL. Rated for 100 kAIC at 240VAC, this F-Frame breaker handles severe short circuits. It includes load side lugs and reverse feed capability.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EDH3100 |
| Series | EDH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 10kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat types of enclosures and panels are compatible with the EDH3100?
The EDH3100 is designed for use in Eaton Series C panelboards, switchboards, and motor control centers that accept bolt-on F-Frame circuit breakers.
What is the difference between the Eaton ED3100 and the EDH3100?
The H in EDH designates a high interrupting capacity. While the standard ED3100 is rated for 65kAIC at 240VAC, the EDH3100 can safely interrupt fault currents up to 100kAIC at 240VAC.
Can the EDH3100 circuit breaker be reverse fed?
Yes, because it uses a fixed thermal-magnetic trip unit without electronic components, this F-Frame breaker is suitable for reverse feed applications.
What is the modern Power Defense replacement for the legacy EDH3100?
The Eaton Power Defense PDG23M0100TFFL is the direct modern cross-reference for the legacy Series C EDH3100 circuit breaker.
Can the EDH3100 replace older HFD3100 breakers?
Yes, the EDH3100 shares the same physical F-Frame dimensions and 100kAIC rating at 240VAC as the legacy HFD3100, making it a suitable replacement for 240V systems.
Does the EDH3100 provide ground fault or arc fault protection?
No, this is a standard thermal-magnetic circuit breaker providing only long-time overload and instantaneous short-circuit protection. It does not include GFCI or AFCI circuitry.
