Eaton / Cutler-Hammer EDH3200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
EDH3200
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EDH3200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

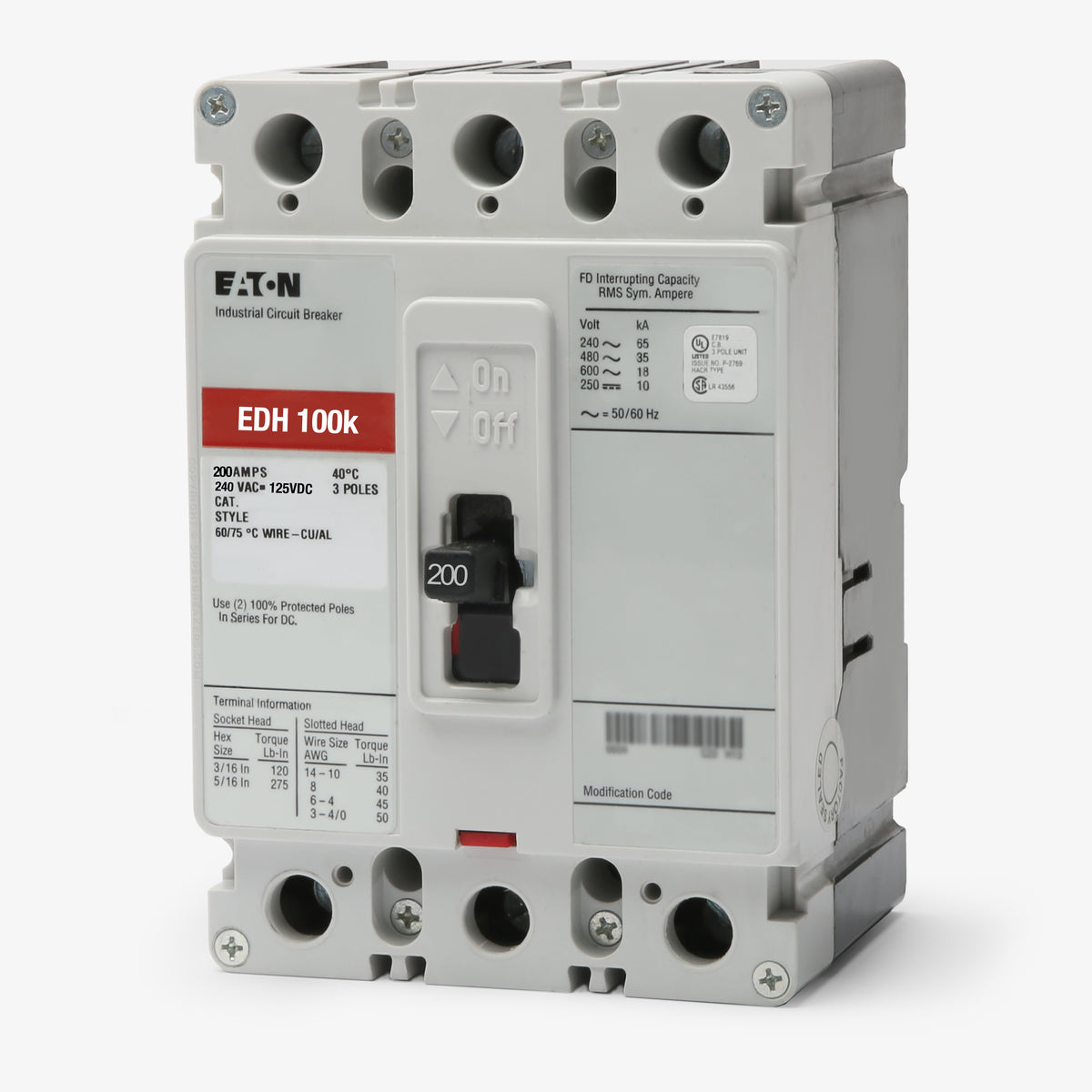

Eaton / Cutler-Hammer EDH3200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer EDH3200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EDH3200 |
| Series | EDH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 10kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 4/0 AWG |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Quantity
Eaton / Cutler-Hammer EDH3200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EDH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 10kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 4/0 AWG |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Eaton EDH3200 provides 200A of continuous power within the Series C family. It features fixed thermal and magnetic trip units to deliver dependable long-time and instantaneous (LI) protection. Designed as a bolt-on F-Frame device, it installs into Eaton panelboards and motor control centers. Rated at 100 kAIC at 240VAC, it delivers high interrupting capacity and serves as a replacement for legacy installations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EDH3200 |
| Series | EDH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 10kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 4/0 AWG |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
6 answersWhat panelboards are compatible with the EDH3200 circuit breaker?
This F-frame breaker is designed to mount in Eaton Series C panelboards, switchboards, and motor control centers that accept bolt-on ED, EDH, or EDC frame breakers.
Can the EDH3200 replace an older Cutler-Hammer ED3200 breaker?
Yes, the EDH3200 has the exact same physical dimensions and mounting footprint as the standard ED3200. The H in the catalog number indicates a higher interrupting rating of 100kAIC at 240VAC, compared to the 65kAIC rating of the standard ED3200.
Is the EDH3200 suitable for reverse feed applications?
Yes, this thermal-magnetic breaker is suitable for reverse feed applications, meaning power can be supplied to either the line or load terminals.
What size wire is accepted by the lugs on the EDH3200?
The standard load-side lugs accept wire gauges from 4 AWG to 4/0 AWG. Always verify the specific lug installed and follow the torque specifications printed on the breaker faceplate.
Does the EDH3200 provide GFCI or AFCI protection?
No, this is a standard thermal-magnetic breaker providing only long-time and instantaneous (LI) trip functions for overload and short-circuit protection. It does not include ground fault or arc fault circuitry.
What does the H in the EDH3200 catalog number signify?
The H designates this as a high-interrupting capacity breaker. It is rated to safely interrupt up to 100,000 amps (100kAIC) at 240VAC, whereas the standard ED frame is rated for 65kAIC.
