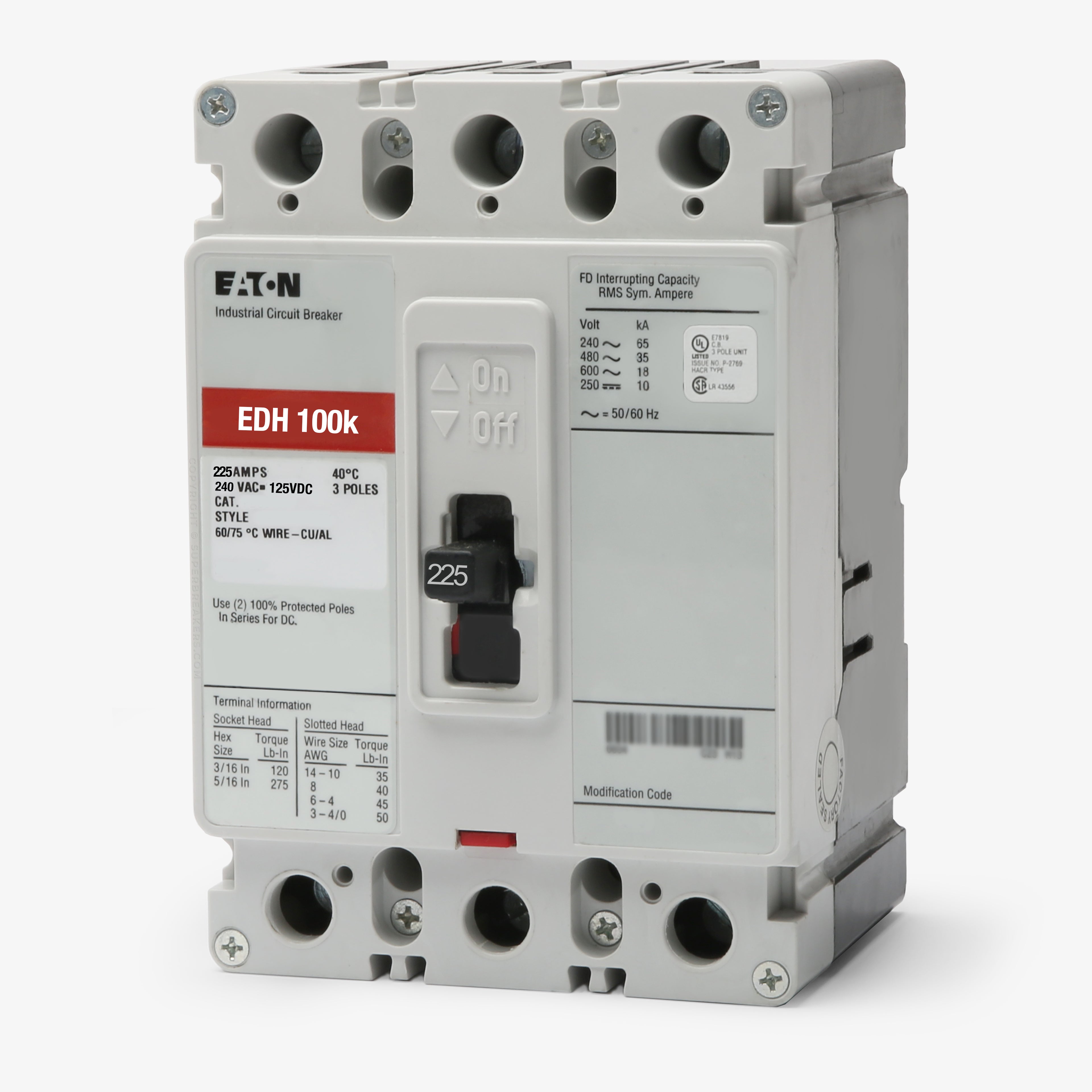

Eaton / Cutler-Hammer EDH3225 - 225A 3 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU EDH3225
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Eaton / Cutler-Hammer EDH3225 - 225A 3 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU EDH3225
Select Item Condition
Earn 1334 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Eaton / Cutler-Hammer EDH3225 - 225A 3 Pole Molded Case Circuit Breaker

New

$1334.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Part of the reliable Series C family, this 225A F-Frame breaker provides robust thermal-magnetic protection for commercial and industrial environments. It installs seamlessly into Eaton panelboards, switchboards, and motor control centers requiring a bolt-on configuration. Featuring a high interrupting capacity of 100kAIC at 240VAC, it handles severe fault currents. Note that this legacy component is officially replaced by the newer Power Defense PDG23M0225TFFL model.

Specifications

Brand Eaton / Cutler-Hammer
Series EDH
Part Number EDH3225
Amperage 225A
Voltage 240VAC, 125VDC
Poles 3
Phase 3
AIC Rating 100kA @ 240VAC, 10kA @ 125VDC
Mounting Style Bolt-On
Terminal Type Lugs
For Use With Eaton Series C Panelboards, Switchboards, Motor Control Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 4 AWG - 4/0 AWG
Max Wire 4/0 AWG
Min Wire 4 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Lock
Accessories Load Side Lugs
Standards HACR, IEC 60947-2, NEMA AB 1, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed, Non-Interchangeable Trip, High Interrupting Capacity
