Eaton / Cutler-Hammer EGB2040FFG - 40A 2 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU EGB2040FFG
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

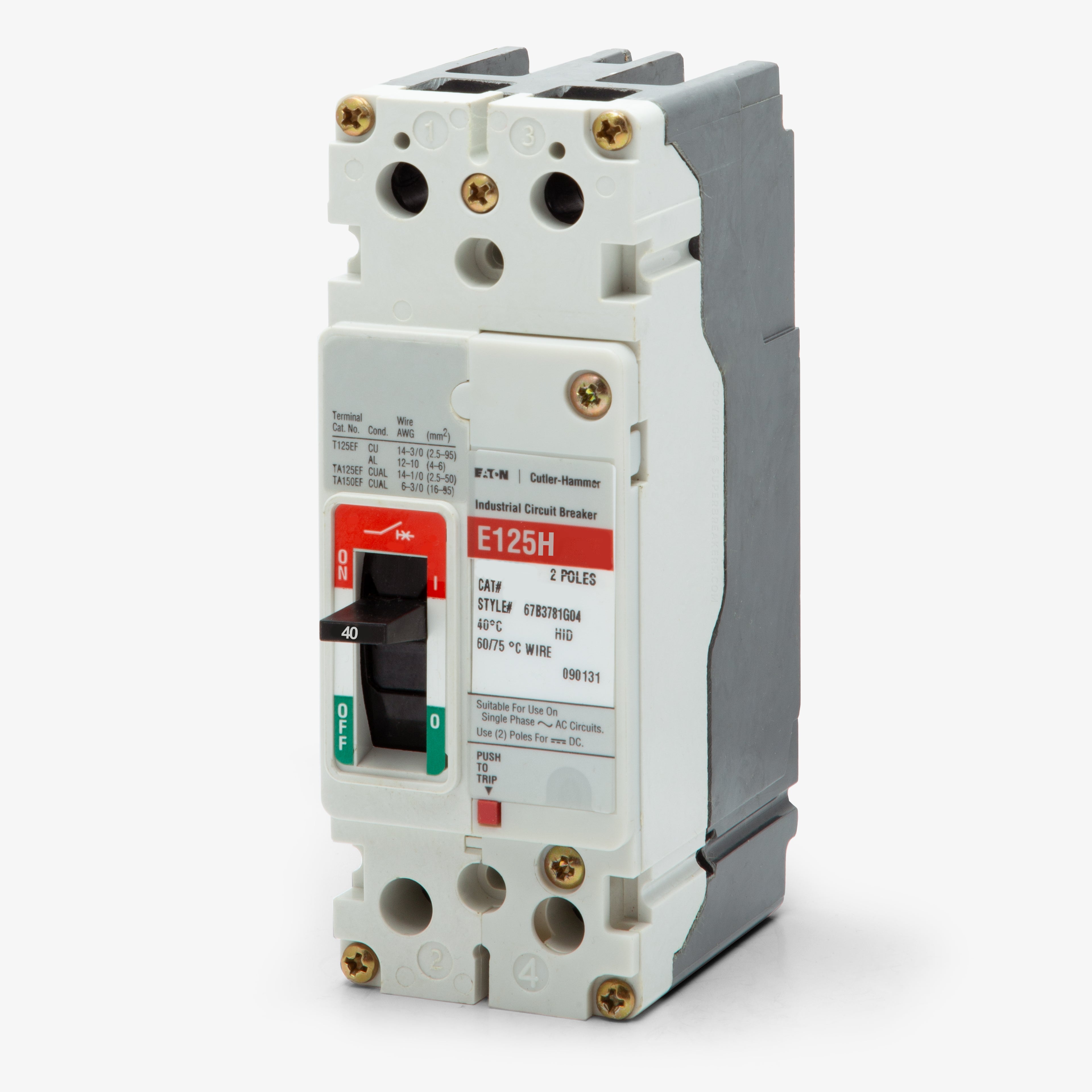

Eaton / Cutler-Hammer EGB2040FFG - 40A 2 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU EGB2040FFG
Select Item Condition
Earn 606 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Eaton / Cutler-Hammer EGB2040FFG - 40A 2 Pole Molded Case Circuit Breaker

New

$606.10 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Delivering 40 amps of continuous power, this Series G MCCB is optimized for industrial electrical systems. It utilizes a fixed thermal and magnetic trip unit to provide precise long-time and instantaneous protection. Designed for unit-mount installations, it fits perfectly into Eaton switchboards, motor control centers, and standard enclosures. It functions as a reliable cross-reference for the PDG12C0040TFFJ. The breaker features a current-limiting design and standard line and load lugs.

Specifications

Brand Eaton / Cutler-Hammer
Series EGB
Part Number EGB2040FFG
Amperage 40A
Voltage 240VAC, 480VAC, 250VDC
Poles 2
Phase 1
AIC Rating 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Eaton Series G Enclosures, Switchboards, Motor Control Centers, OEM Panels
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-1/0 AWG
Max Wire 1/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
Accessories Line and Load Lugs
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489
Approval CE, CSA, IEC, UL
Temp Rating 40C
Construction Features HACR Rated, Current Limiting, Reverse Feed
