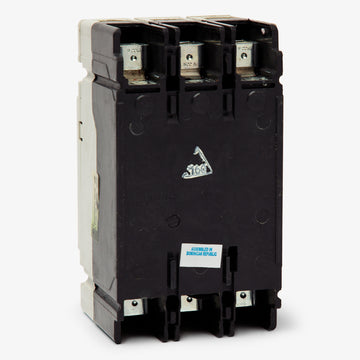

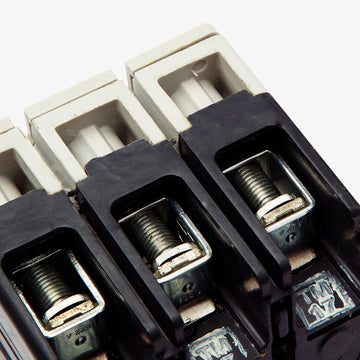

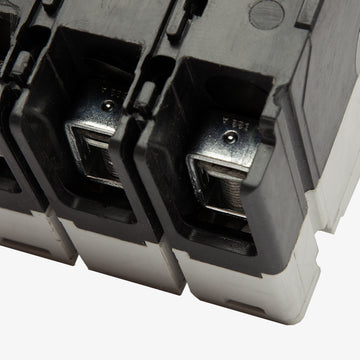

Eaton / Cutler-Hammer EGB3030FFG Molded Case Circuit Breaker
- 30A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGB3030FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGB3030FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EGB3030FFG - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGB3025FFG
25A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGB3040FFG
40A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGB3020FFG
20A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the EGB3030FFG is a 3-pole, 30A molded case circuit breaker from Eaton's Series G family. It delivers robust current-limiting performance in a space-saving EG-frame footprint. This unit mount breaker installs into Eaton Series G enclosures, switchboards, and Pow-R-Line panelboards, providing reliable long-time and instantaneous (LI) protection. Rated at 18 kAIC at 480VAC, it includes factory-installed line and load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EGB3030FFG |
| Series | EGB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 125/250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series G Enclosures, Switchboards, MCCs, Pow-R-Line Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Lock, Multi-Wire Lugs |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
6 answersWhat does the FFG suffix mean in the EGB3030FFG catalog number?
The FFG suffix indicates that the breaker features a fixed thermal and fixed magnetic trip unit, and it comes factory-equipped with standard line and load terminals.
Which panelboards and enclosures are compatible with the EGB3030FFG?
This EG-frame breaker is designed for installation in Eaton Pow-R-Line panelboards, Series G enclosures, motor control centers (MCCs), and switchboards.
Can the EGB3030FFG be mounted on a DIN rail?
Yes, while it is a unit mount breaker by default, it can be adapted for DIN rail mounting using the Eaton EGDIN adapter kit.
Is the EGB3030FFG suitable for direct current applications?
Yes, this breaker is rated for DC systems, providing a 10 kAIC interrupting capacity at 125/250VDC.
What wire sizes are accepted by the standard lugs on this breaker?
The factory-installed line and load lugs accept wire gauges ranging from 14 AWG up to 1/0 AWG.
Are the trip settings adjustable on the EGB3030FFG?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip thresholds cannot be adjusted in the field.
