Eaton / Cutler-Hammer EGB3025FFG Molded Case Circuit Breaker
- 25A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGB3025FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGB3025FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

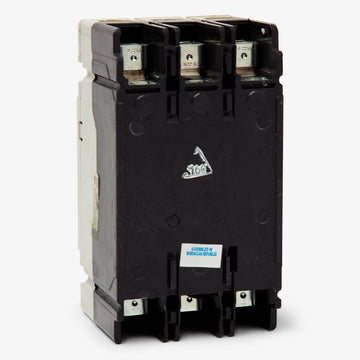

Eaton / Cutler-Hammer EGB3025FFG - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGB3020FFG
20A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGB3035FFG
35A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGB3015FFG
15A 3 Pole Molded Case Circuit Breaker
Description
Engineered for demanding electrical systems, the Eaton EGB3025FFG is a 3-pole, 25A molded case circuit breaker. It belongs to the Series G family, offering robust performance within a compact EG-frame. This unit mount device connects via line and load lugs, making it suitable for commercial and industrial switchboards or motor control centers. With an 18 kAIC rating at 480VAC and blow-open contact action, it ensures rapid fault clearing. This model is replaced by the newer PDG13C0025TFFJ.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EGB3025FFG |
| Series | EGB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series G Enclosures, Switchboards, MCCs |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed |
Product FAQs
7 answersWhat enclosures and panels are compatible with the EGB3025FFG?
This unit mount EG-frame breaker is designed for use in Eaton Series G enclosures, switchboards, and motor control centers (MCCs).
What does the FFG suffix mean in the EGB3025FFG catalog number?
The first F indicates it is an EG-frame breaker, the second F specifies fixed thermal and fixed magnetic trip units, and the G means it includes both line and load side lug terminals.
Is there a newer direct replacement for the EGB3025FFG?
Yes, Eaton is transitioning the Series G line to the Power Defense series. The direct replacement for this model is the Power Defense PDG13C0025TFFJ.
Are line and load lugs included with the EGB3025FFG?

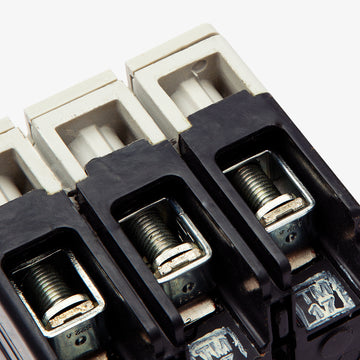

Yes, this breaker comes factory-equipped with standard line and load lugs that accept 14 to 1/0 AWG copper or aluminum wire.
Can the EGB3025FFG be reverse fed?
Yes, this thermal-magnetic breaker is suitable for reverse feed applications.
Is the EGB3025FFG suitable for HVAC applications?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
Is this a bolt-on or plug-in breaker?
The EGB3025FFG is a unit mount (bolt-on) breaker. It is not compatible with snap-in or plug-on load centers.
