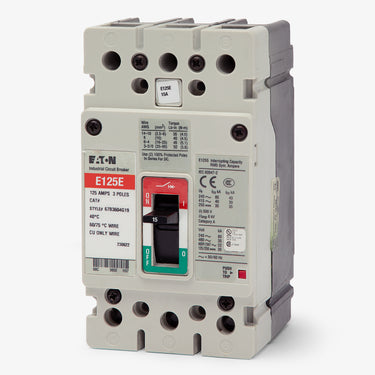

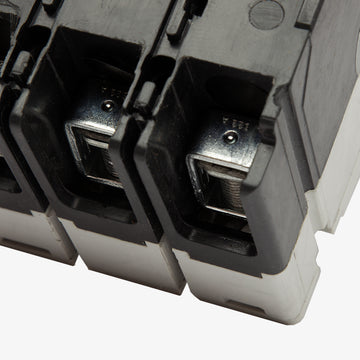

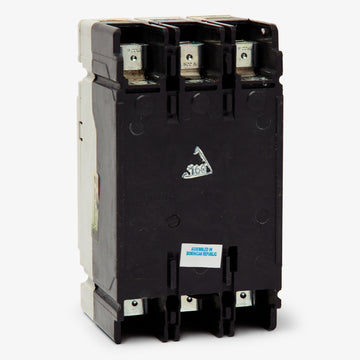

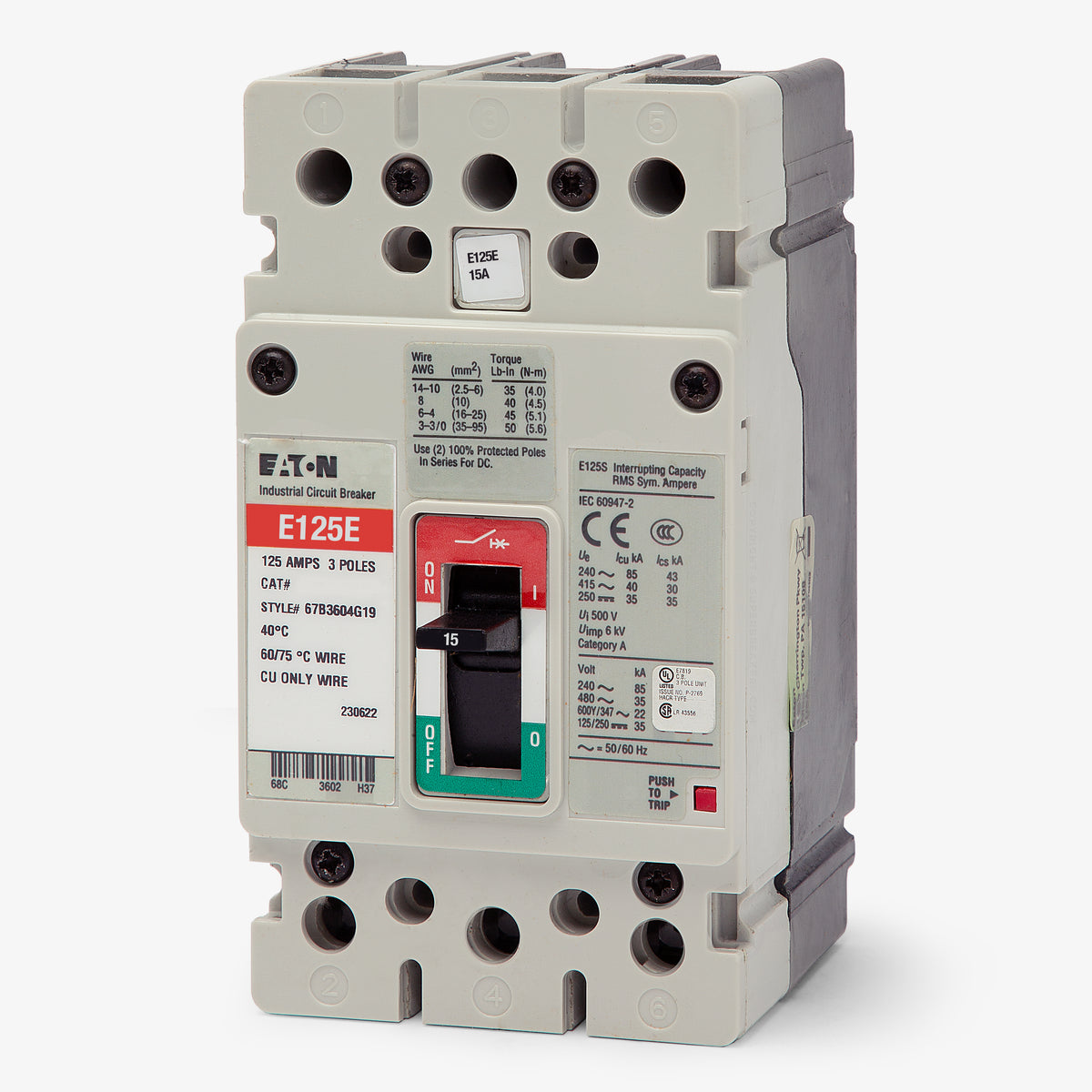

Eaton / Cutler-Hammer EGE3015FFG Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGE3015FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGE3015FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EGE3015FFG - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer EGE3015FFG - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EGE3015FFG |
| Series | EGE |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers, Series G Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Flex Shaft |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, HID Rated, Reverse Feed |
Sold out
Quantity
Eaton / Cutler-Hammer EGE3015FFG - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EGE |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers, Series G Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Flex Shaft |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, HID Rated, Reverse Feed |
Similar Items
Eaton / Cutler-HammerEGE3025FFG
25A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGE3030FFG
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGE3035FFG
35A 3 Pole Molded Case Circuit Breaker
Description
Providing robust three-phase protection, the EGE3015FFG is a 15A, 3-pole MCCB in the Eaton Series G family. It features a thermal-magnetic trip unit for reliable LI defense. This EG-frame breaker utilizes a unit-mount design for installation into Pow-R-Line panelboards, switchboards, MCCs, and Series G enclosures. Rated 35 kAIC at 240VAC, it uses a current-limiting design to restrict let-through energy. It is HID and HACR rated for specialized loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EGE3015FFG |
| Series | EGE |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers, Series G Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Flex Shaft |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, HID Rated, Reverse Feed |
Product FAQs
6 answersWhat does the FFG suffix mean in the EGE3015FFG catalog number?
The FFG suffix indicates the breaker has a fixed thermal and fixed magnetic trip unit, and it comes factory-equipped with standard line and load terminals.
Is the trip unit on the EGE3015FFG adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit. Neither the long-time nor the instantaneous trip functions can be adjusted in the field.

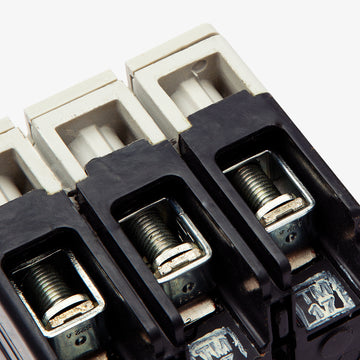

What wire sizes are accepted by the standard lugs on this breaker?
The factory-installed lugs accept wire gauges from 14 AWG up to 1/0 AWG. Always torque the terminals to the manufacturer specifications printed directly on the breaker faceplate.
Which panelboards are compatible with the EGE3015FFG?
This EG-frame breaker is designed for use in Eaton Pow-R-Line panelboards, switchboards, motor control centers, and dedicated Series G enclosures.
Does this breaker support DIN rail mounting?
Yes, the EGE3015FFG can be mounted on a standard 35mm DIN rail using the appropriate Eaton mounting adapter, or it can be directly panel mounted using screws.
Can the EGE3015FFG be used in DC applications?
Yes, this breaker is rated for DC systems up to 250VDC, providing a 10kA interrupting capacity for direct current applications.
