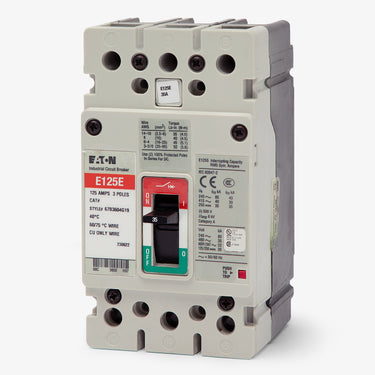

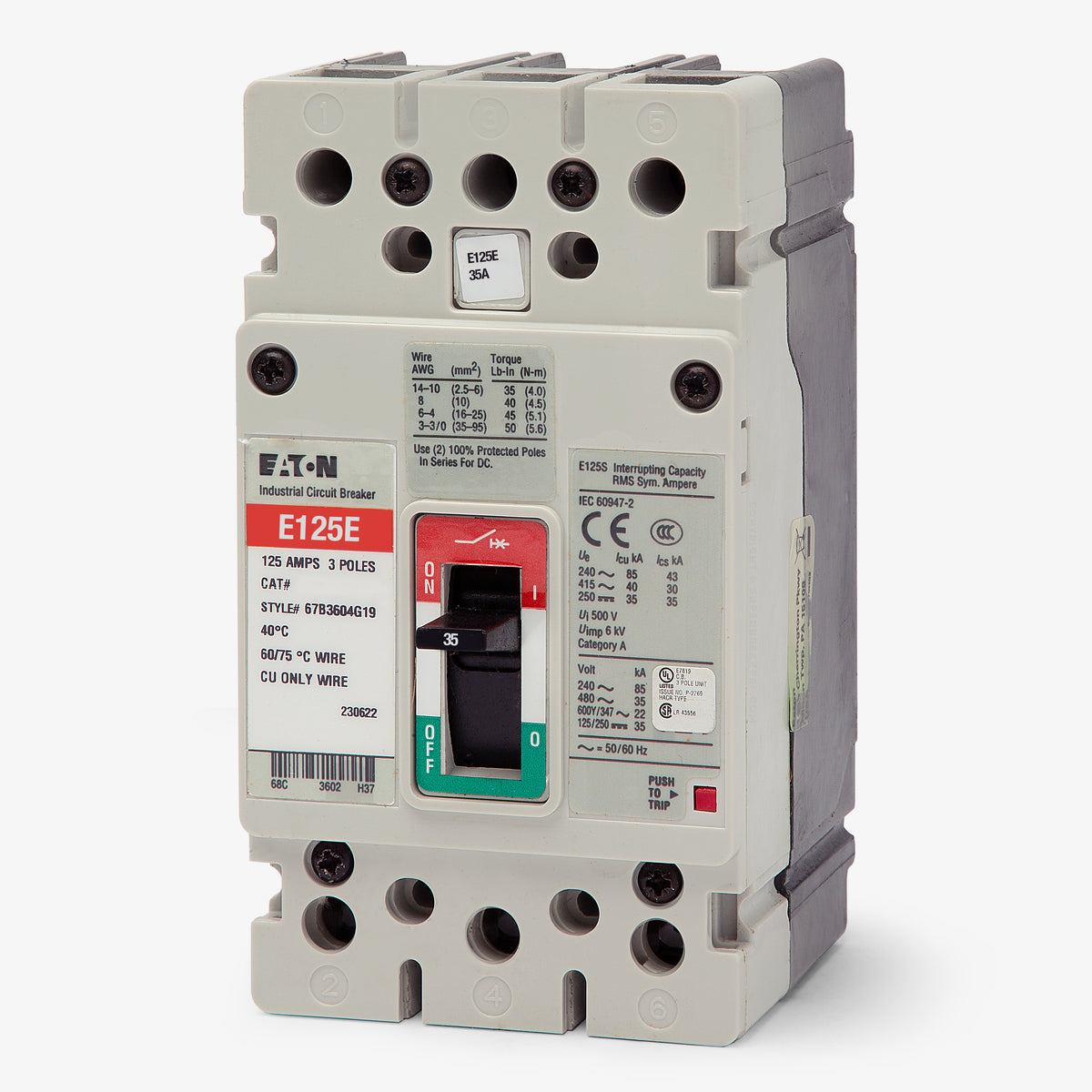

Eaton / Cutler-Hammer EGE3035FFG Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGE3035FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGE3035FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EGE3035FFG - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer EGE3035FFG - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EGE3035FFG |
| Series | EGE |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 125/250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Pow-R-Xpress, Series G Panelboards, Switchboards, MCCs |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Trip-Free Mechanism |
Sold out
Quantity
Eaton / Cutler-Hammer EGE3035FFG - 35A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EGE |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 125/250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Pow-R-Xpress, Series G Panelboards, Switchboards, MCCs |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Trip-Free Mechanism |
Similar Items
Eaton / Cutler-HammerEGE3030FFG
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGE3045FFG
45A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGE3025FFG
25A 3 Pole Molded Case Circuit Breaker
Description
This EG-frame molded case circuit breaker provides 35A of thermal-magnetic protection. The Eaton EGE3035FFG is engineered for robust performance in commercial environments. Designed for unit mounting, it integrates into Eaton Pow-R-Line panelboards, Pow-R-Xpress units, and switchboards. It transitions to the Power Defense PDG13F0035TFFJ. Offering 35kAIC at 240V, it includes fixed thermal and magnetic trip units. The device features reverse feed capabilities and high-speed blow-open action.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EGE3035FFG |
| Series | EGE |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 125/250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Pow-R-Xpress, Series G Panelboards, Switchboards, MCCs |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Trip-Free Mechanism |
Product FAQs
8 answersWhat equipment is the EGE3035FFG circuit breaker designed to fit?
This EG-frame breaker is compatible with Eaton Pow-R-Line panelboards, Pow-R-Xpress units, Series G panelboards, switchboards, and motor control centers (MCCs).

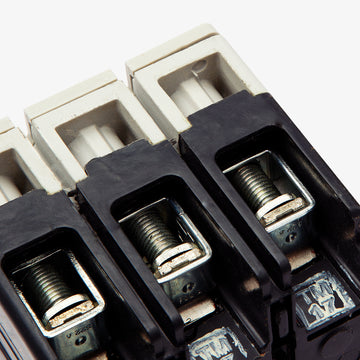

What wire sizes are supported by the standard lugs on the EGE3035FFG?
The factory-installed lugs accommodate copper or aluminum conductors ranging from 14 AWG to 1/0 AWG.
Is the EGE3035FFG suitable for direct current (DC) systems?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for 125/250VDC systems, providing a 10kAIC interrupting capacity for DC applications.
Can I install field accessories like shunt trips on the EGE3035FFG?
Yes, the Eaton Series G EG-frame platform supports a variety of field-installable internal accessories, including shunt trips, auxiliary contacts, and undervoltage releases (UVR).
What do the letters "FFG" indicate in the EGE3035FFG part number?
The "FF" specifies that the breaker is equipped with a fixed thermal and fixed magnetic trip unit, meaning the trip settings cannot be adjusted. The "G" indicates it belongs to the Series G global family.
Does the EGE3035FFG plug onto a panelboard bus?
No, this is a unit-mount (feed-thru) breaker. It must be bolted to a backpan or mounting surface and connected to the circuit using the provided wire lugs.
Is there a newer Power Defense equivalent for the EGE3035FFG?
Yes, Eaton is transitioning Series G breakers to the Power Defense line. The direct replacement for this model is the Power Defense PDG13F0035TFFJ.
Does the EGE3035FFG provide ground fault or earth leakage protection?
No, this specific model features standard long-time and instantaneous (LI) thermal-magnetic protection. Ground fault protection would require a separate earth leakage module or a different trip unit.
