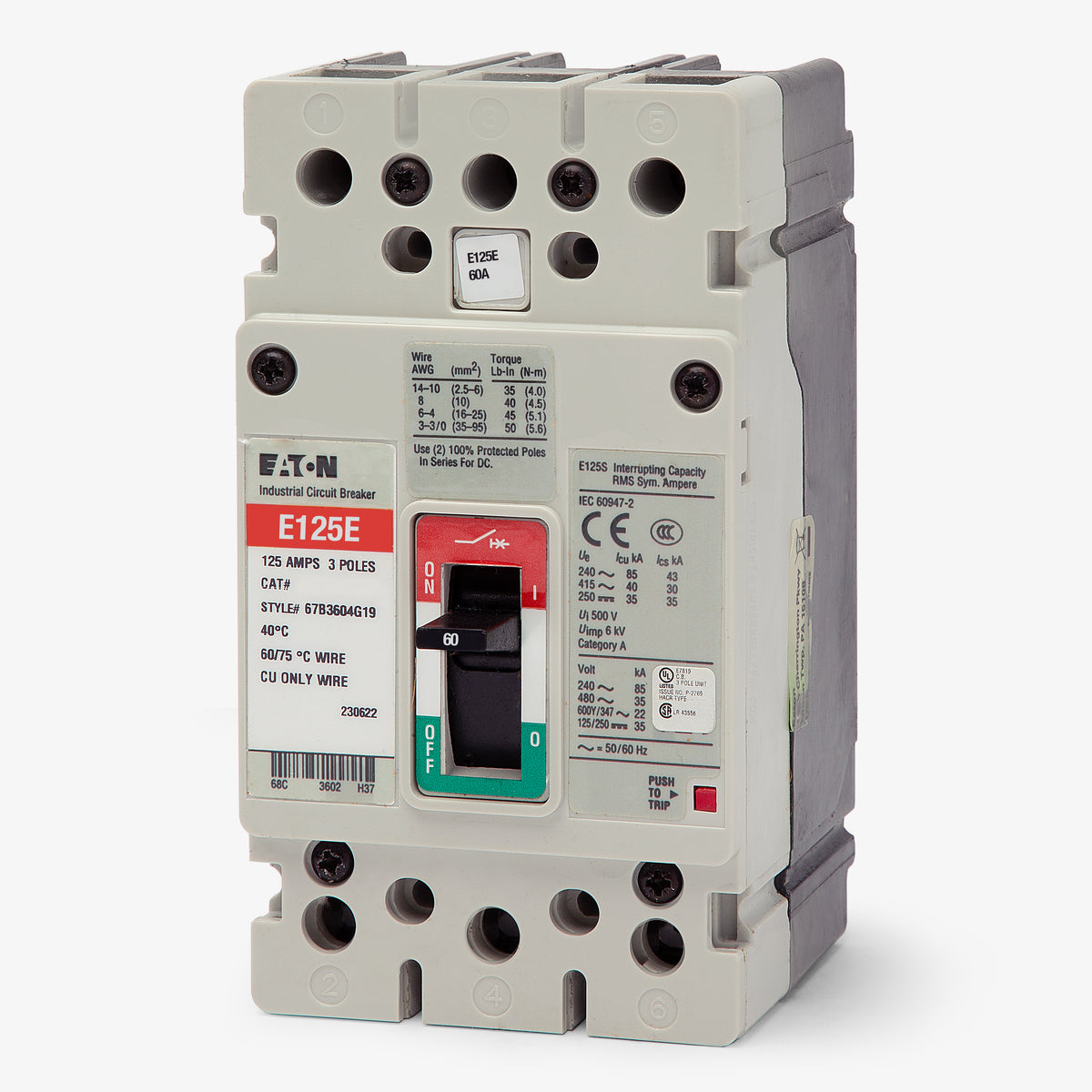

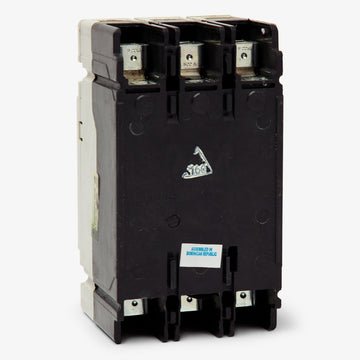

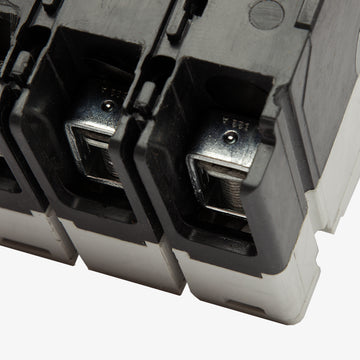

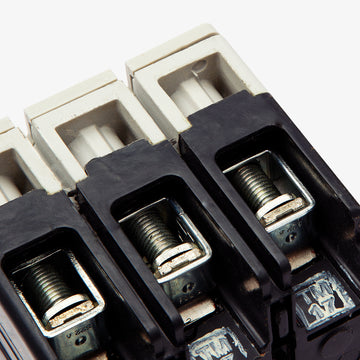

Eaton EGE3060FFG Circuit Breaker
- 60
- 3 Pole
- Unit
Eaton
EGE3060FFG
Circuit Breaker
Brand
Eaton
SKU
EGE3060FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton EGE3060FFG 3 Pole Circuit Breaker
New
Quantity
Quantity
Eaton EGE3060FFG 3 Pole Circuit Breaker
New
Quantity
| Brand | Eaton |
|---|---|
| Part Number | EGE3060FFG |
| Series | G |
| Amperage | 60 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 125/250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Pow-R-Xpress, Series G Panelboards, Switchboards, MCCs |
| Wire Gauge | AWG 14 to AWG 1/0 |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Trip-Free Mechanism |
Quantity
Eaton EGE3060FFG 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton |
|---|---|
| Series | G |
| Amperage | 60 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 125/250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Pow-R-Xpress, Series G Panelboards, Switchboards, MCCs |
| Wire Gauge | AWG 14 to AWG 1/0 |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Trip-Free Mechanism |
Similar Items
Eaton / Cutler-HammerEGE3050FFG
50A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGE3045FFG
45A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGE3040FFG
40A 3 Pole Molded Case Circuit Breaker
Description
Eaton EGE3060FFG 3 Pole Circuit Breaker
The Eaton EGE3060FFG is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 600Y/347VAC. It has an interrupting rating of 25kAIC at 480VAC, 18kAIC at 600Y/347VAC. The EGE3060FFG has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton |
|---|---|
| Part Number | EGE3060FFG |
| Series | G |
| Amperage | 60 A |
| Poles | 3 |
| Mounting Style | Unit |
| Voltage | 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 125/250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Pow-R-Xpress, Series G Panelboards, Switchboards, MCCs |
| Wire Gauge | AWG 14 to AWG 1/0 |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Trip-Free Mechanism |
Product FAQs
5 answersWhat does the "FFG" suffix mean in the EGE3060FFG catalog number?
The "FFG" suffix indicates that the breaker features a fixed thermal and fixed magnetic trip unit, and it comes factory-equipped with both line and load side terminals.
Can this EG-frame breaker be mounted on a DIN rail?
Yes, the EGE3060FFG can be DIN rail mounted, but it requires a separate DIN rail adapter kit (catalog number EGDIN) designed for multi-pole EG-frame breakers.
Is the EGE3060FFG suitable for reverse feed applications?
Yes, Eaton Series G EG-frame molded case circuit breakers are suitable for reverse feed use.
Is this circuit breaker HACR rated?
Yes, Eaton EG-frame circuit breakers carry an HACR rating, making them suitable for heating, air conditioning, and refrigeration equipment protection.
What type of protection does the LI trip function provide on this breaker?
The thermal-magnetic LI trip unit provides Long-Time (thermal) protection against overloads and Instantaneous (magnetic) protection against short circuits.
