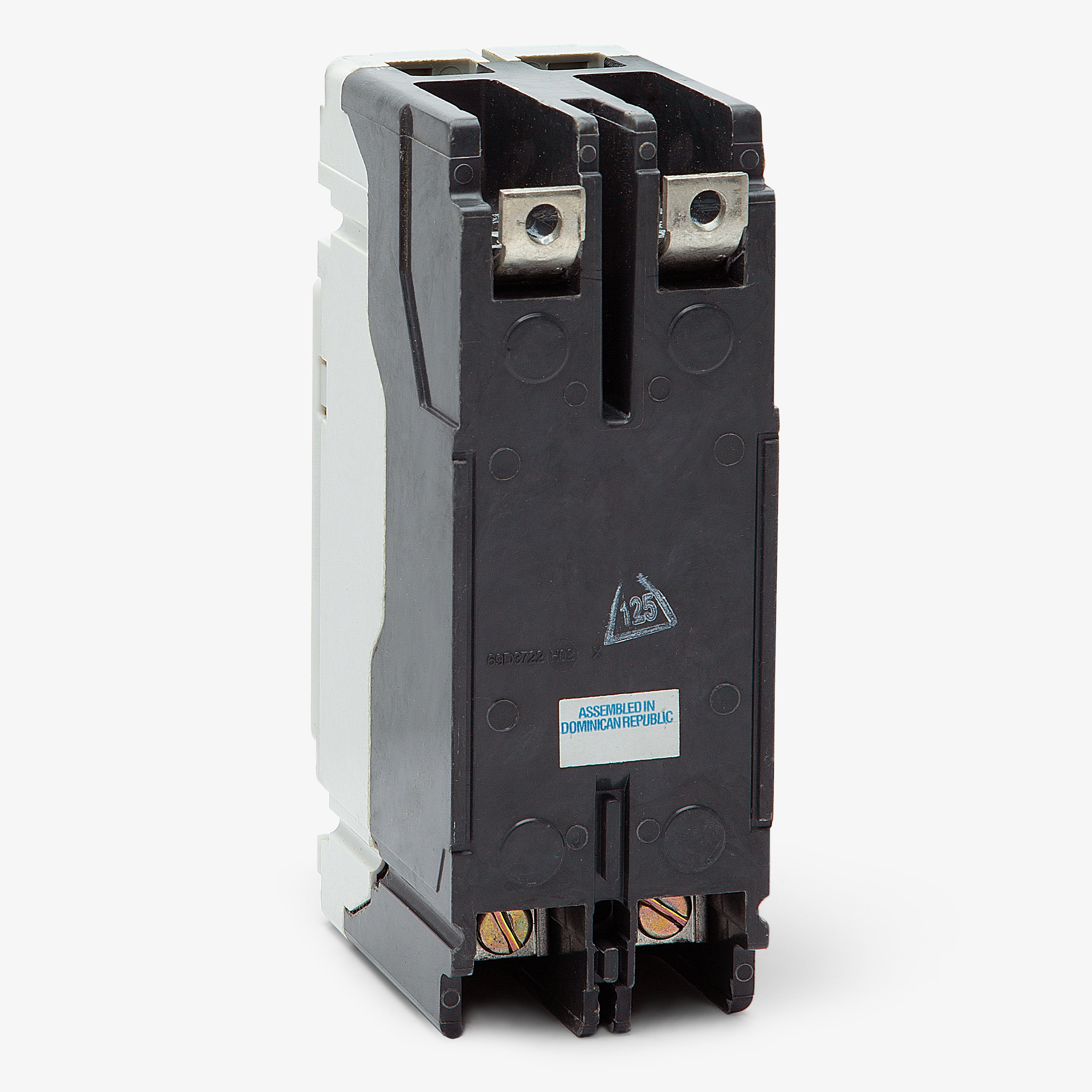

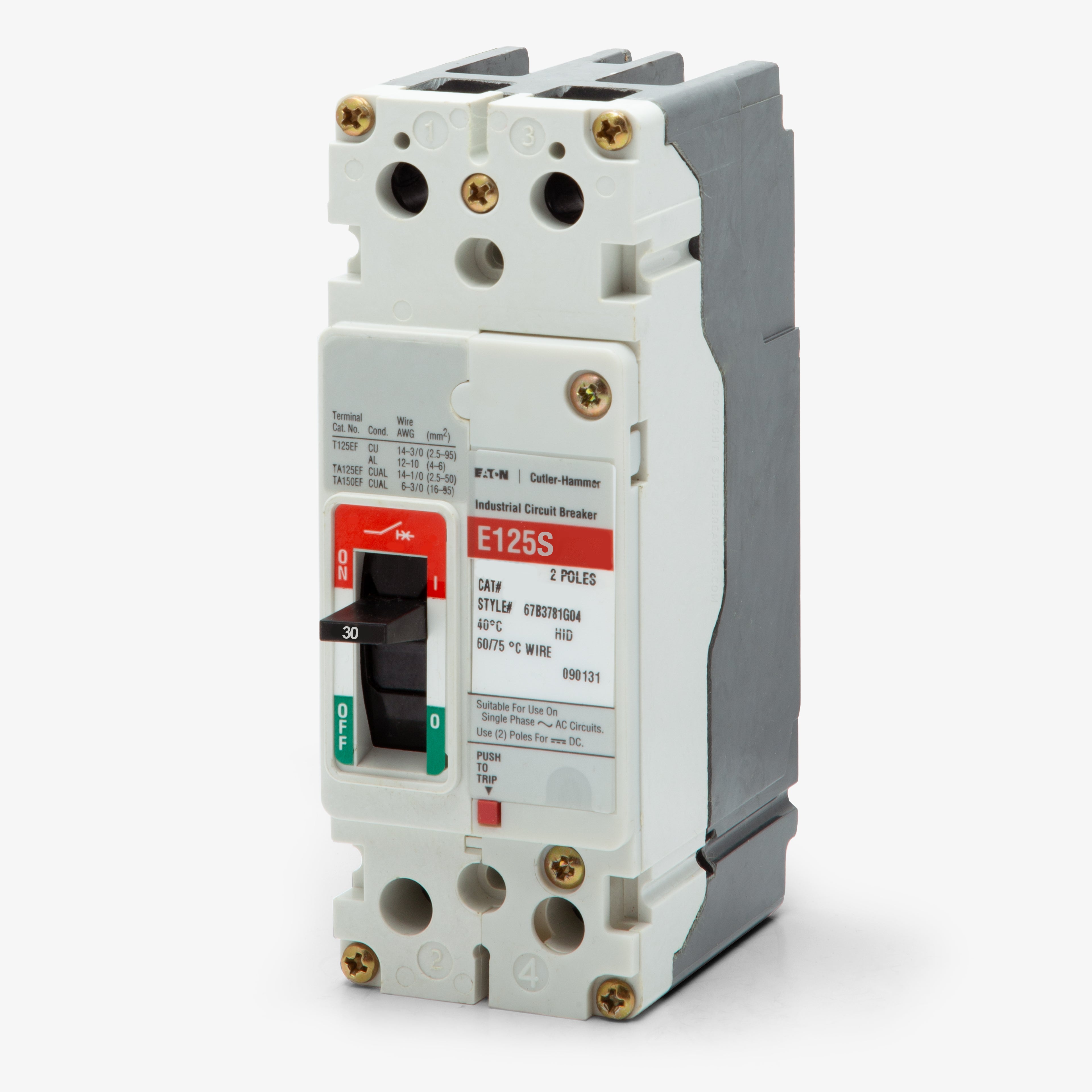

Eaton / Cutler-Hammer EGH2030FFB - 30A 2 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU EGH2030FFB
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Eaton / Cutler-Hammer EGH2030FFB - 30A 2 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU EGH2030FFB
Select Item Condition
Earn 633 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Eaton / Cutler-Hammer EGH2030FFB - 30A 2 Pole Molded Case Circuit Breaker

New

$633.91 No stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Built for commercial and industrial applications, the EGH2030FFB is a 2-pole, 30A molded case circuit breaker from Eaton's Series G family. It installs into Pow-R-Line panelboards using a secure bolt-on mounting style. Rated at 100kAIC at 240V and 65kAIC at 480V, this EG-frame breaker features fixed thermal-magnetic trip units and high-speed blow-open action for superior current-limiting performance. It serves as a reliable solution and is replaced by the PDG12M0030TFFB model.

Specifications

Brand Eaton / Cutler-Hammer
Series EGH
Part Number EGH2030FFB
Amperage 30A
Voltage 240VAC, 480VAC, 600Y/347VAC, 250VDC
Poles 2
Phase 1
AIC Rating 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 42kA @ 250VDC
Mounting Style Bolt-On

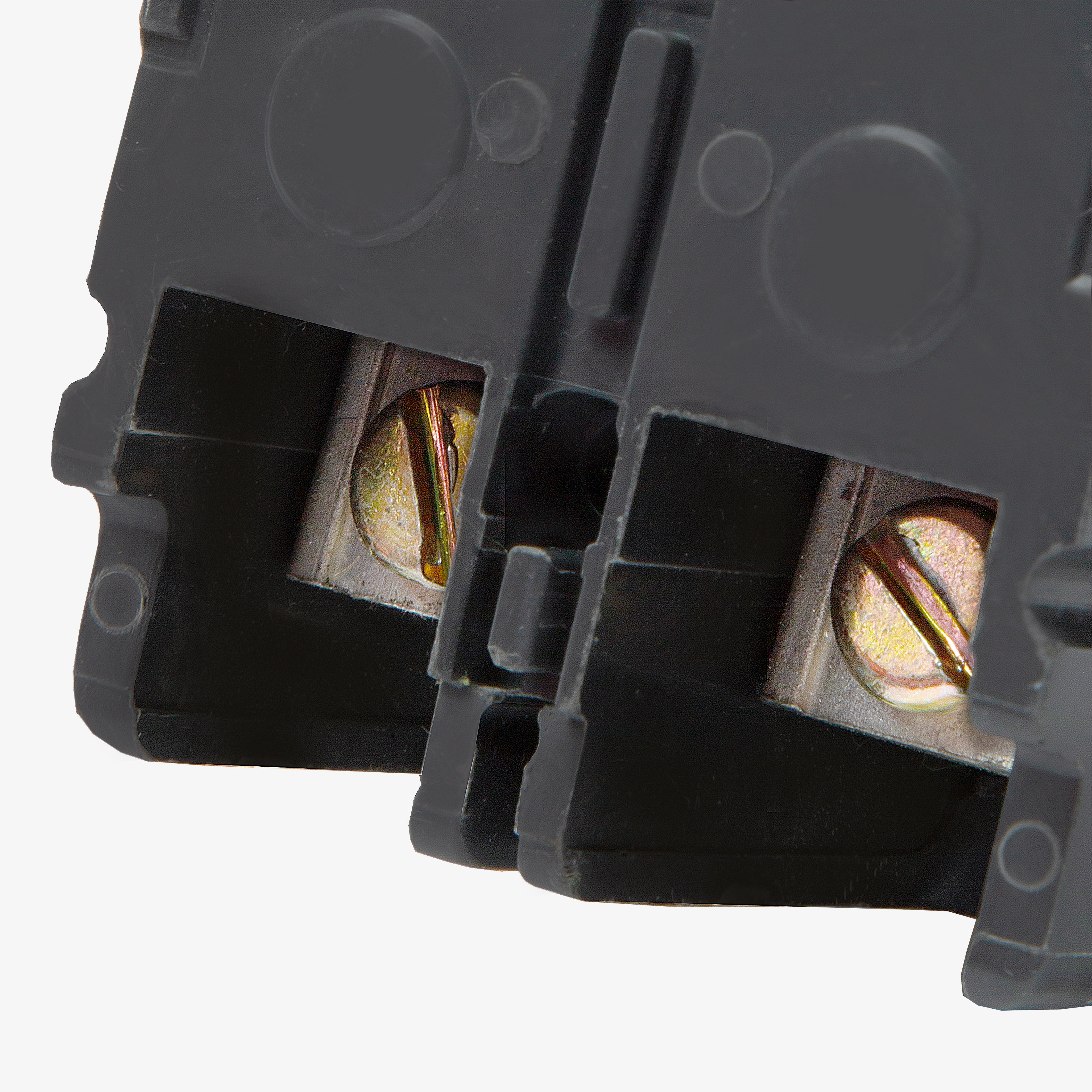

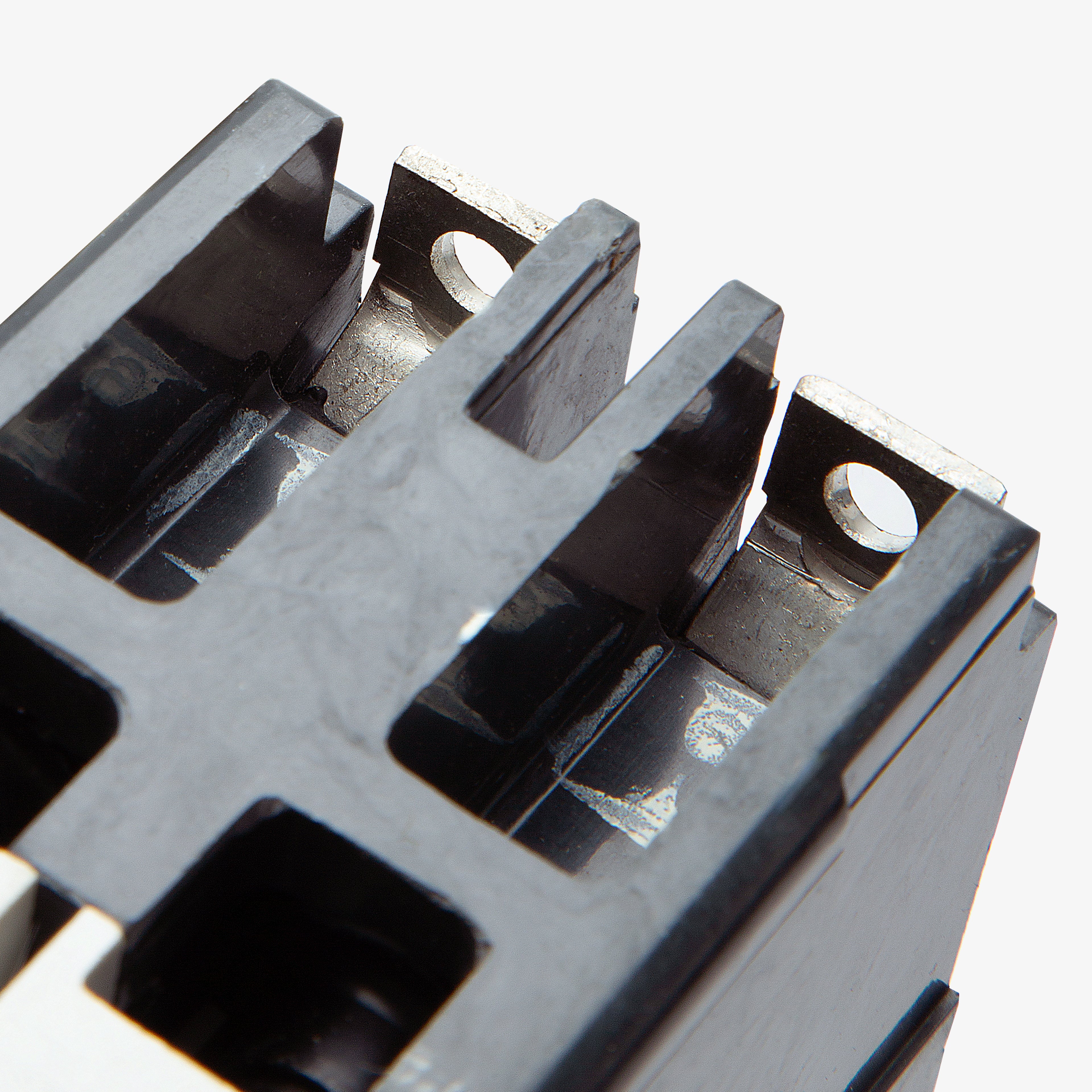

Terminal Type Lugs
For Use With Eaton Pow-R-Line Panelboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 14-1/0 AWG (Cu/Al)
Max Wire 1/0 AWG
Min Wire 14 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch
Accessories Load Side Lugs, Mounting Hardware
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CE, CSA, IEC, KEMA, UL
Temp Rating -20C to 70C
Construction Features HACR Rated, Current Limiting, Reverse Feed, Blow-Open Action, Non-Interchangeable Trip
