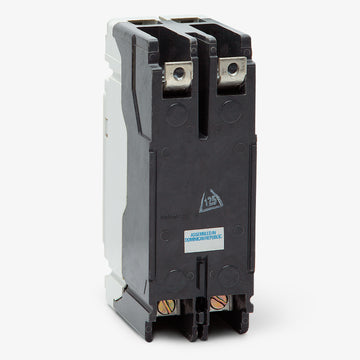

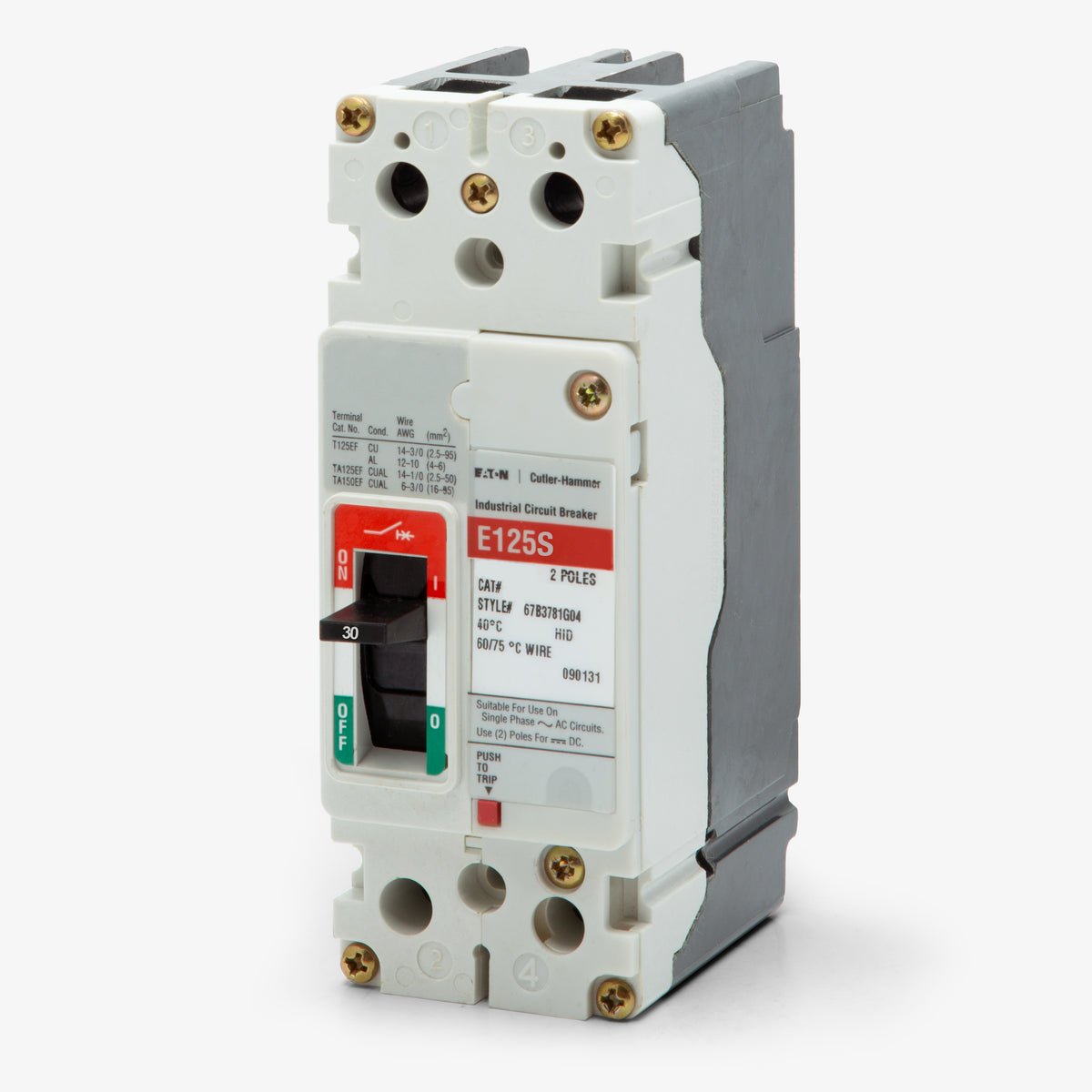

Eaton / Cutler-Hammer EGS2030FFB Molded Case Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
EGS2030FFB
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGS2030FFB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EGS2030FFB - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGS2015FFB
15A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGS2050FFB
50A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGS2060FFB
60A 2 Pole Molded Case Circuit Breaker
Description
Designed for commercial and marine environments, this 30A molded case circuit breaker provides essential overcurrent defense. The Eaton Series G component utilizes a fixed thermal-magnetic trip unit to ensure precise LI response. The device mounts into Eaton Pow-R-Line panelboards via a sturdy bolt-on configuration. It includes load-side lugs and mounting hardware for straightforward integration. Rated 35 kAIC at 480VAC, it incorporates current-limiting technology and reverse feed capability.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EGS |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 125/250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Multi-Wire Lug Kit |
|---|---|
| Accessories | Mounting Hardware, Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting |
Product FAQs
6 answersWhich panelboards accept the EGS2030FFB circuit breaker?
This EG-frame breaker is designed specifically for Eaton Pow-R-Line panelboards configured for bolt-on Series G components.
Is the EGS2030FFB rated for direct current (DC) applications?
Yes. In addition to its AC ratings, this breaker is UL listed for DC systems up to 250VDC, delivering a 35kAIC interrupting rating for use in battery systems or DC control panels.
What does the FFB suffix mean in the EGS2030FFB catalog number?
In Eaton Series G nomenclature, FFB indicates the breaker has a fixed thermal and fixed magnetic trip unit, and utilizes a bolt-on connection.
Do I need to purchase separate lugs for the EGS2030FFB?

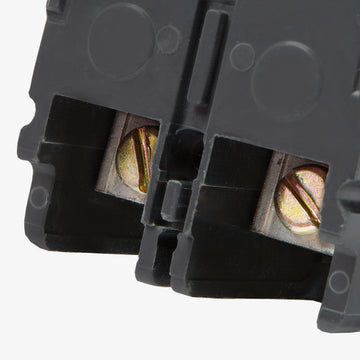

No, this breaker comes with factory-installed lugs that are dual-rated for copper and aluminum conductors ranging from 14 AWG to 1/0 AWG.
Can I adjust the trip settings on the EGS2030FFB?
No. This breaker features a fixed thermal and fixed magnetic trip unit. The Long-Time and Instantaneous (LI) protection parameters are factory-set and cannot be modified in the field.
How does the thermal-magnetic trip unit protect the circuit?
The EGS2030FFB uses an LI (Long-Time and Instantaneous) trip function. The thermal element provides long-time protection against sustained overloads, while the magnetic element delivers instantaneous tripping during short-circuit events.
