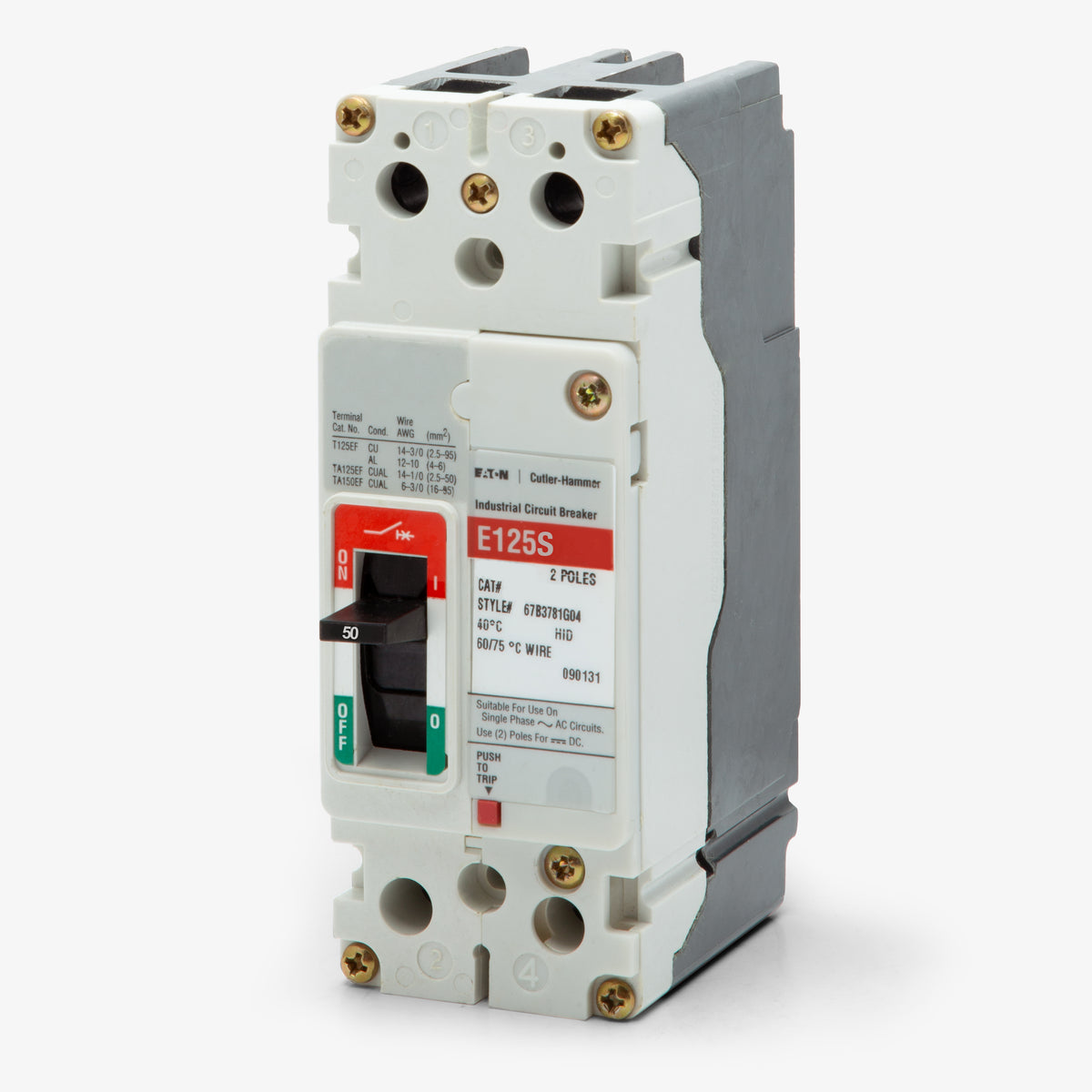

Eaton / Cutler-Hammer EGS2050FFB Molded Case Circuit Breaker
- 50A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
EGS2050FFB
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGS2050FFB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EGS2050FFB - 50A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGS2040FFB
40A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGS2030FFB
30A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGS2015FFB
15A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, the Eaton EGS2050FFB is a 50A, two-pole molded case circuit breaker from the Series G EG-Frame lineup. Featuring a bolt-on mounting style for a secure connection, it installs into Eaton Pow-R-Line panelboards. It serves as a reliable solution for facility upgrades. The breaker utilizes a fixed thermal-magnetic trip unit and delivers a 35kA interrupting capacity at 480VAC, alongside current-limiting high-speed blow-open action.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | EGS |
| Amperage | 50A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC, 35kA @ 125/250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, High-Speed Blow-Open Action |
Product FAQs
6 answersWhich panelboards are compatible with the EGS2050FFB?
This EG frame breaker installs directly into Eaton Pow-R-Line panelboards using a bolt-on connection.
What wire size and conductor material does the EGS2050FFB accept?
The standard lugs on this breaker accept 14 AWG to 1/0 AWG wire and are rated for both copper (Cu) and aluminum (Al) conductors.
What does the FFB suffix mean in the EGS2050FFB catalog number?
In the Eaton Series G nomenclature, the FF indicates a fixed thermal and fixed magnetic trip unit. The B specifies a bolt-on mounting configuration.
Is the EGS2050FFB rated for direct current (DC) applications?
Yes, in addition to its AC ratings, this breaker is rated for 125/250VDC systems with an interrupting capacity of 35kAIC.
What type of trip unit is equipped on the EGS2050FFB?
It utilizes a thermal magnetic trip unit with fixed thermal and fixed magnetic settings, providing Long-Time (L) and Instantaneous (I) protection.
Is the EGS2050FFB part of the Eaton Series C or Series G family?
The EGS2050FFB is an EG frame breaker belonging to the Eaton Series G family of molded case circuit breakers.
