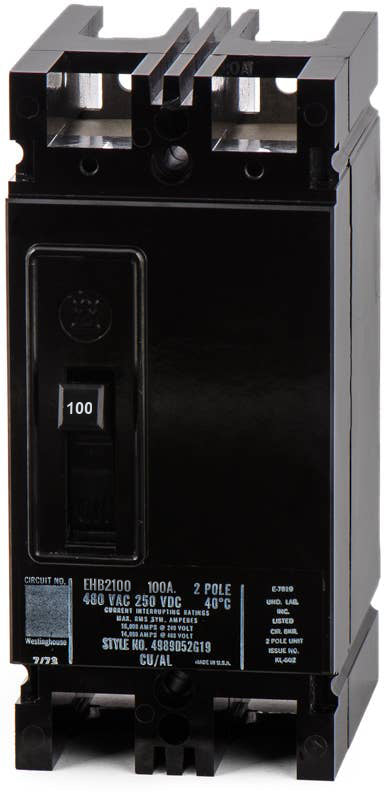

Eaton / Cutler-Hammer EHB2100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
EHB2100
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EHB2100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EHB2100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
35A 2 Pole Molded Case Circuit Breaker
10A 2 Pole Molded Case Circuit Breaker
Description
Rated for 100 amps, this E-Frame molded case breaker provides essential long-time and instantaneous trip functions for industrial applications. The thermal-magnetic mechanism ensures rapid response to electrical faults. The bolt-on configuration installs into Eaton Pow-R-Line C and Westinghouse F-Frame panelboards. For modernizing older systems, this unit is cross-referenced with the newer EHD2100 substitute. It handles 14kAIC at 480Y/277VAC and accepts 4 to 2/0 AWG wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EHB2100 |
| Series | EHB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EHB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Westinghouse F-Frame Panelboards |
| Wire Gauge | 4 AWG-2/0 AWG |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, CSA C22.2, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersAre Westinghouse EHB2100 and Cutler-Hammer EHB2100 breakers the same?
Yes. Eaton acquired the Westinghouse distribution equipment business and later transitioned the Cutler-Hammer brand. Westinghouse, Cutler-Hammer, and Eaton EHB2100 breakers are physically and electrically interchangeable.
Is the EHB2100 circuit breaker obsolete, and what is the modern replacement?
Yes, the legacy E-Frame EHB series is obsolete. The modern, direct drop-in replacement for the EHB2100 is the Eaton EHD2100, which shares the exact same form, fit, and function.
What panelboards are compatible with the EHB2100?
The EHB2100 is a bolt-on breaker designed for use in legacy Westinghouse F-Frame and NEHB panelboards, as well as Eaton Pow-R-Line C panelboards.
What wire sizes do the lugs on the EHB2100 accept?
The load side lugs on the EHB2100 accept aluminum or copper wire ranging from 4 AWG up to 2/0 AWG.
Does the EHB2100 have an adjustable trip setting?
No, the EHB2100 features a non-interchangeable, fixed thermal magnetic trip unit with factory-set long-time and instantaneous trip functions.
Can the EHB2100 be mounted on a standard DIN rail?
No. The EHB2100 is a bolt-on molded case circuit breaker designed specifically to bolt directly to the busbar of compatible Eaton and Westinghouse panelboards. It does not support DIN rail mounting.
