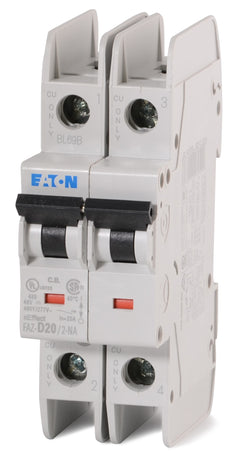

Eaton / Cutler-HammerFAZ-D20/2-NA
Eaton / Cutler-Hammer FAZ-B5/2-NA Miniature Circuit Breaker
- 5A
- 2 Pole
- DIN Rail
Eaton / Cutler-Hammer
FAZ-B5/2-NA
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FAZ-B5/2-NA
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FAZ-B5/2-NA - 5A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerFAZ-C5/1-NA-SP
5A 1 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerFAZ-D5/2-NA
5A 2 Pole Miniature Circuit Breaker
Description
Designed for commercial and industrial applications, this UL 489 rated component provides reliable thermal-magnetic protection. The B-curve trip characteristic responds quickly to low inrush currents, making it ideal for sensitive control circuitry. Installation onto standard DIN rail systems streamlines assembly within industrial control panels. A built-in visual status indicator allows facility managers to identify tripped circuits. Current-limiting capabilities ensure enhanced safety.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FAZ-B5/2-NA |
| Series | FAZ |
| Amperage | 5A |
| Poles | 2 |
| Mounting Style | DIN Rail |
| Voltage | 480Y/277VAC, 96VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 480Y/277VAC, 10kA @ 96VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | DIN Rail Systems, Industrial Control Panels |
| Wire Gauge | 18-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 18 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | B |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Lockout Attachment, Busbar System |
|---|---|
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | ABS, CE, CSA, DNV, Lloyd's, RoHS, SWD, UL, VDE |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, Trip-Free Mechanism, Visual Trip Indicator, Common Trip, HACR Rated, Reverse Feed, RoHS Compliant |
Product FAQs
8 answersWhat does the B-curve trip characteristic mean on the FAZ-B5/2-NA?
The B-curve trip profile is designed to trip instantaneously at 3 to 5 times the rated current. This makes it ideal for protecting sensitive control circuitry and applications where low levels of inrush current are expected.
Is the Eaton FAZ-B5/2-NA rated for branch circuit protection?
Yes, this miniature circuit breaker is UL 489 listed, meaning it is fully rated for branch circuit protection in industrial control panels, unlike UL 1077 supplementary protectors.
How is the FAZ-B5/2-NA circuit breaker mounted?
It is designed to snap directly onto a standard 35mm DIN rail, which streamlines assembly and organization within industrial control panels.
Can I add auxiliary accessories to the FAZ-B5/2-NA?
Yes, this breaker supports field-installable accessories, including auxiliary switches, shunt trips, and undervoltage releases, which can be mounted to the side of the breaker.
Does the FAZ-B5/2-NA offer current-limiting capabilities?
Yes, its current-limiting design provides fast short-circuit interruption. This reduces the let-through energy during a fault, helping to prevent damage to downstream wiring and sensitive equipment.
Can the breaker be held in the ON position during a fault?
No, the FAZ-B5/2-NA features a trip-free mechanism. The breaker will trip internally during an overcurrent or short-circuit event even if the handle is physically held in the ON position.
What size wire is accepted by the box lugs on this 5A breaker?
The terminal box lugs are designed to accept wire gauges ranging from 18 AWG up to 6 AWG, and feature captive screws that cannot be lost during installation.
Can the FAZ-B5/2-NA be used in DC applications?
Yes, in addition to its 277/480 VAC rating, this breaker is rated for use in DC circuits up to 96 VDC with a 10 kA interrupting capacity, making it versatile for both AC and DC control panels.
