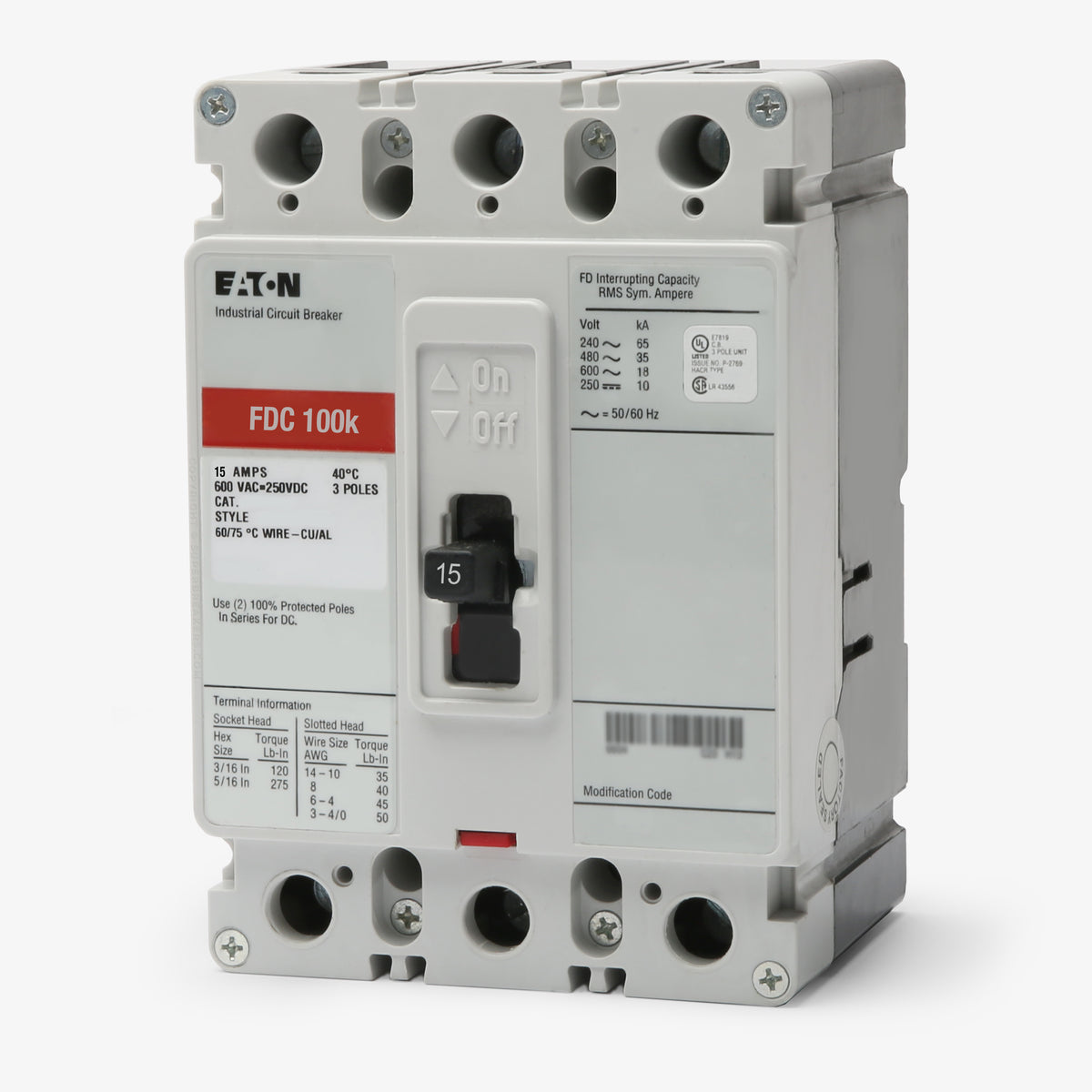

Eaton / Cutler-Hammer FDC3015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
FDC3015
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FDC3015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FDC3015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer FDC3015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FDC3015 |
| Series | FDC |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer FDC3015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FDC3015 |
| Series | FDC |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding commercial environments, this 15A three-phase breaker provides exceptional current-limiting capabilities and reverse feed options. It integrates smoothly into Eaton Series C panelboards, switchboards, and motor control centers. The HID and HACR-rated design features fixed thermal-magnetic LI protection, handling severe fault currents up to 200kAIC at 240VAC. Load side lugs are included for standard wire terminations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FDC3015 |
| Series | FDC |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, HID Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat is the difference between the Eaton FDC3015, FD3015, and HFD3015?
The FDC3015 is the ultra-high interrupting capacity version of the Series C F-frame, rated at 100kAIC at 480VAC. The FD3015 is the standard-tier breaker, and the HFD3015 is the high-tier breaker. All three share the exact same physical dimensions and mount into the same hardware.
What panelboards are compatible with the FDC3015?
This F-frame breaker is designed for use in Eaton Series C panelboards, switchboards, and motor control centers. It is commonly installed in Pow-R-Line 3a (PRL3a) and PRL4 panels using the correct connector kits.
Can the FDC3015 circuit breaker be reverse fed?
Yes. Eaton Series C F-frame thermal-magnetic circuit breakers do not have line and load restrictions and are fully suitable for reverse-feed applications.

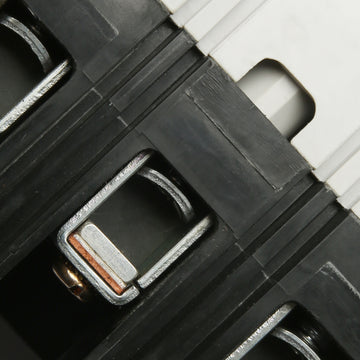

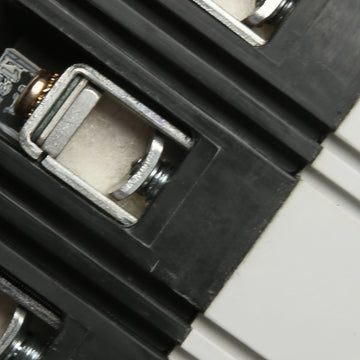

What type of wire can be used with the standard lugs on the FDC3015?
The standard factory lugs accept 14 AWG to 1/0 AWG wire and are dual-rated for both copper (Cu) and aluminum (Al) conductors.
Is the Eaton FDC3015 HACR rated?
Yes. All Eaton Series C F-frame molded case circuit breakers are HACR rated, making them suitable for group motor applications in heating, air conditioning, and refrigeration equipment.
Can the FDC3015 be used in DC electrical systems?
Yes, this thermal-magnetic breaker carries a DC rating of 250VDC with an interrupting capacity of 22kAIC. Depending on the system voltage and grounding configuration, multiple poles may need to be wired in series per Eaton installation guidelines.
