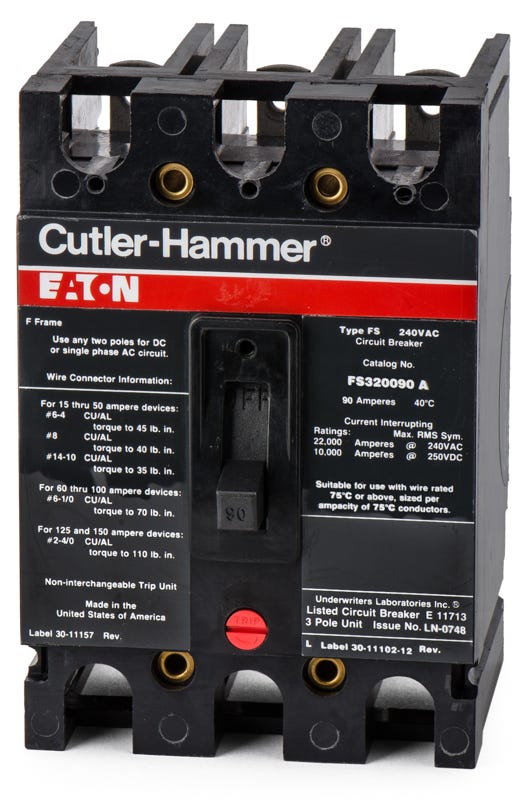

Eaton / Cutler-Hammer FS320090A Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
FS320090A
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FS320090A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FS320090A - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer FS320090A - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS320090A-R |
| Series | FS |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (Feed-Through Configuration) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Factory Sealed, Non-Interchangeable Trip, HACR Rated |
Quantity
Eaton / Cutler-Hammer FS320090A - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS320090A-R |
| Series | FS |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (Feed-Through Configuration) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Factory Sealed, Non-Interchangeable Trip, HACR Rated |
Similar Items
Eaton / Cutler-HammerFS360090A
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerFS320100A
100A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerFS360030A
30A 3 Pole Molded Case Circuit Breaker
Description
Part of Eaton's Series C F-Frame family, the FS320090A delivers robust overcurrent protection for commercial and industrial applications. This 3-pole, 90-amp breaker features a non-interchangeable thermal-magnetic trip unit with long-time and instantaneous functions. It installs via bolt-on mounting into Eaton Series C panelboards, switchboards, and enclosures. Rated for 22 kAIC at 240VAC, it serves as a reliable component or an exact cross-reference for the newer FD3090 substitute.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS320090A-R |
| Series | FS |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs (Feed-Through Configuration) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Factory Sealed, Non-Interchangeable Trip, HACR Rated |
Product FAQs
5 answersWhich Eaton panelboards accept the FS320090A breaker?
This Series C F-Frame breaker is designed for bolt-on installation in Eaton Series C panelboards, switchboards, and enclosures. It is not compatible with standard residential plug-on load centers.
Is there a direct replacement available if the FS320090A is out of stock?
Yes. The Eaton FD3090 is an exact physical substitute from the Series C F-Frame family. It shares the same dimensions and mounting but carries a higher 600V rating, making it fully backward compatible for 240V applications.
What wire sizes are supported by the standard lugs on the FS320090A?
The factory-installed line and load lugs accommodate copper or aluminum conductors ranging from 14 AWG to 1/0 AWG.
Can I adjust the trip settings on the FS320090A?
No. This breaker features a non-interchangeable thermal-magnetic trip unit with fixed long-time and fixed instantaneous (LI) functions. It does not support field adjustments for the trip curve.
Can I add field-installed internal accessories to the FS320090A?
Internal accessories for Eaton Series C F-Frame breakers, such as shunt trips or auxiliary switches, must be factory installed to maintain the UL label and breaker seal. They are not listed for field installation.
