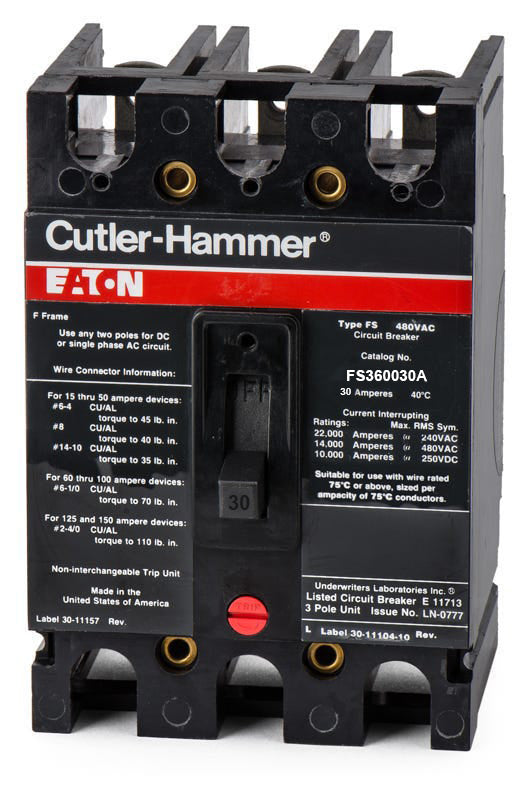

Eaton / Cutler-Hammer FS360030A Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
FS360030A
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FS360030A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FS360030A - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer FS360030A - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS360030A |
| Series | FS |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 14kA @ 480VAC, 10kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer FS360030A - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | FS |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 14kA @ 480VAC, 10kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
Eaton / Cutler-HammerFS340015A
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerFS320090A
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerFS360090A
90A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Eaton FS360030A is a 3-pole, 30A molded case circuit breaker from the Series C family. It features a fixed thermal-magnetic trip unit with long-time and instantaneous (LI) protection. This F-frame breaker utilizes a bolt-on, feed-thru connection with line and load lugs. It installs into Eaton panelboards, switchboards, and motor control centers. For legacy systems, it is replaced by the FDB3030.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS360030A |
| Series | FS |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 14kA @ 480VAC, 10kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panels and enclosures are compatible with the FS360030A?
This F-frame breaker is designed to install directly into Eaton Series C panelboards, switchboards, and motor control centers. It is also backward compatible with many legacy Cutler-Hammer and Westinghouse enclosures that accept F-frame breakers.
What is the difference between the FS360030A and the legacy FDB3030?
Both are 30A, 3-pole F-frame breakers that share the same physical footprint and 14kAIC rating at 480VAC. However, the FS360030A offers a higher interrupting rating of 22kAIC at 240VAC, whereas the FDB3030 is rated for 18kAIC at 240VAC. The FS360030A also includes both line and load lugs standard.
Is the FS360030A suitable for reverse feed applications?
Yes, standard Eaton Series C F-frame thermal-magnetic circuit breakers are suitable for reverse feed use, allowing them to be back-fed in a panelboard.
Is this breaker HACR rated for HVAC equipment?
Yes, all Eaton Series C F-frame circuit breakers are HACR rated, making them suitable for heating, air conditioning, and refrigeration applications.
Can the FS360030A be used for High Intensity Discharge (HID) lighting?
Yes, Eaton F-frame circuit breakers rated from 10A to 30A are specifically rated for HID lighting applications.
Are line and load lugs included with this breaker?
Yes, the FS360030A comes standard with both line and load lugs for feed-thru connections. They are compatible with both copper and aluminum conductors.
Can the trip settings on the FS360030A be adjusted in the field?
No, this breaker features a fixed thermal-magnetic trip unit. Neither the long-time nor the instantaneous trip functions are field adjustable.
