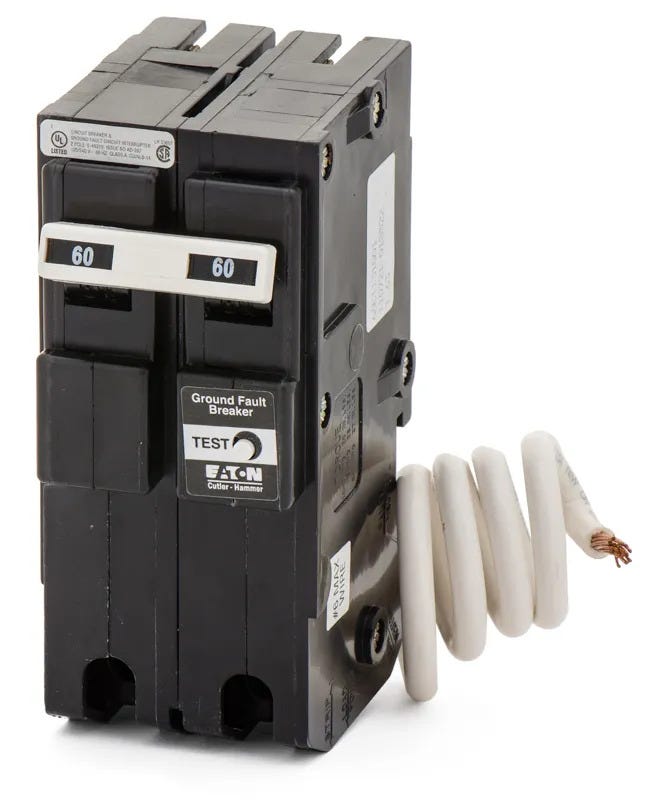

Eaton / Cutler-Hammer GFTCB260 GFCI Miniature Circuit Breaker
- 60A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
GFTCB260
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GFTCB260
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GFTCB260 - 60A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
40A GFCI Miniature Circuit Breaker
35A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Description
Built for residential and commercial use, the Eaton GFTCB260 delivers reliable 5mA ground-fault personnel protection. This 60A, two-pole GFCI breaker operates at 120/240VAC and includes a pigtail neutral for straightforward wiring. Designed with a plug-on mounting style, it installs into Eaton BR load centers, plus legacy Westinghouse, Challenger, and Bryant panels. It serves as a predecessor to the newer BRN260GF model. Rated at 10 kAIC, it features built-in self-test functionality.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GFTCB260 |
| Series | GFTCB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton BR Load Centers, Westinghouse Load Centers, Challenger Load Centers, Bryant Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, Federal Spec W-C375, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Self-Test, HACR Rated, Common Trip |
Product FAQs
5 answersWhich load centers are compatible with the GFTCB260 circuit breaker?
This plug-on breaker is designed for use in Eaton BR series load centers. It is also backwards compatible with legacy Westinghouse, Challenger, and Bryant panels that accept Type BR breakers.
Does the GFTCB260 provide personnel or equipment ground fault protection?
This breaker provides 5mA Class A ground fault personnel protection, designed to detect electrical leakage and shut off power to prevent electric shock.
How is the neutral wire connected on this GFCI breaker?
The GFTCB260 features a pigtail neutral connection. The coiled white pigtail wire must be connected directly to the neutral bus bar in the panel to ensure the ground fault circuitry functions correctly.
What is the difference between the GFTCB260 and the BRN260GF?
The GFTCB260 is the legacy version of Eaton's 60A 2-pole GFCI breaker. The BRN260GF is the newer, updated replacement model. Both offer the same 5mA ground fault protection and fit the same Type BR load centers.
Can I use aluminum wire with the GFTCB260 breaker?
Yes, the box lug terminals are rated for both copper and aluminum conductors ranging from 14 to 4 AWG. Ensure proper antioxidant compound is used if installing with aluminum wiring.
