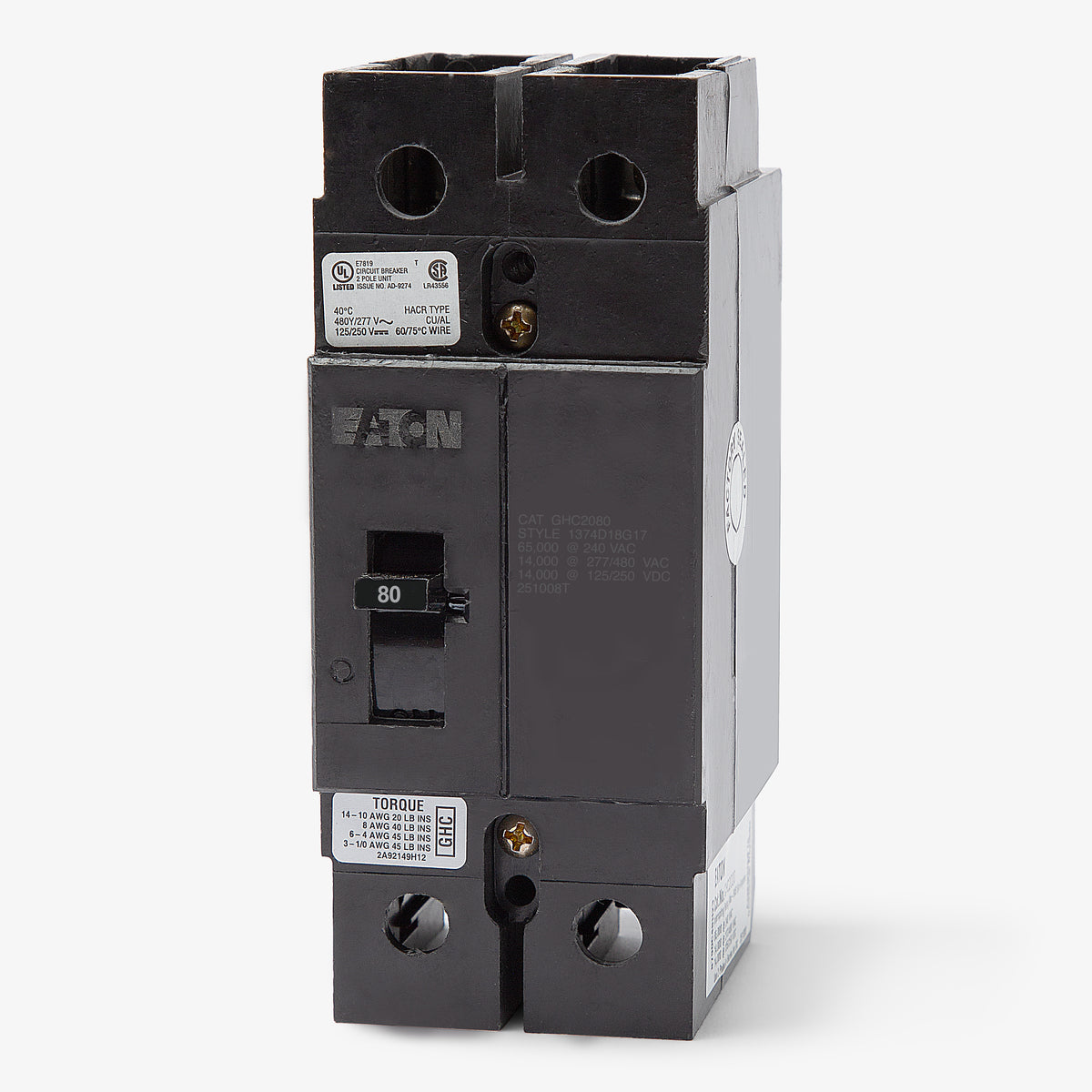

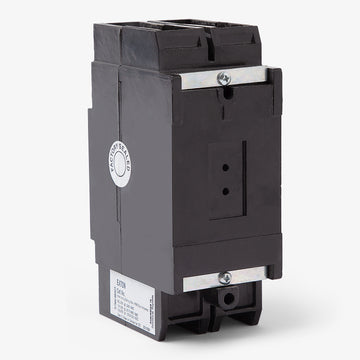

Eaton / Cutler-Hammer GHC2080 Molded Case Circuit Breaker
- 80A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
GHC2080
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHC2080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHC2080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
70A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty applications, the Eaton GHC2080 is an 80A, 2-pole molded case circuit breaker from the Series C lineup. It provides robust thermal-magnetic protection within a space-saving G-frame footprint. Designed for flexible integration, this unit mount breaker fits Eaton Series C panelboards, OEM enclosures, and motor control centers. Offering a 14 kAIC rating at 480Y/277V and 65 kAIC at 240V, it ensures reliable fault interruption. The device is HACR rated and reverse feed capable.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHC2080 |
| Series | GHC |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, OEM Panels, Enclosures, Motor Control Centers, DIN Rail (with adapter) |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
7 answersIs the GHC2080 suitable for reverse feed applications?
Yes, this breaker is rated for reverse feed use. The line and load connections can be swapped if required by your specific enclosure or panel design.
What enclosures or systems are compatible with this breaker?
The GHC2080 is designed for use in Eaton Series C panelboards, motor control centers, and OEM panels. It can also be mounted on a standard DIN rail when equipped with the correct adapter.
Does this breaker bolt directly to a panelboard bus?
No, this is a unit mount, feed-thru circuit breaker. It requires cable connections at both the line and load terminals rather than bolting or plugging directly onto a busbar.

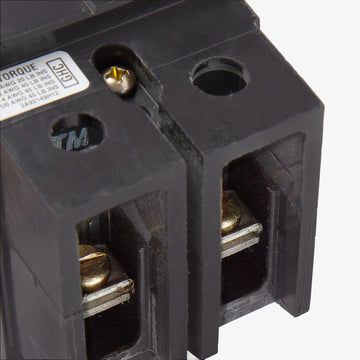

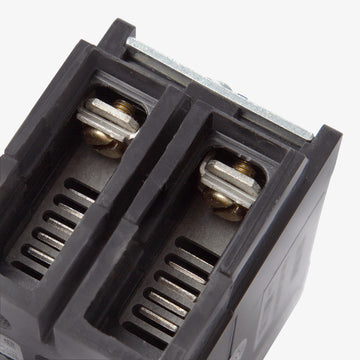

What wire sizes do the factory lugs accept?
The included line and load lugs are designed to accept conductor sizes ranging from 14 AWG up to 1/0 AWG.
Can this Series C breaker be used in DC circuits?
Yes, it is rated for DC applications up to 125/250 Vdc, providing an interrupting capacity of 14 kAIC.
Are the thermal and magnetic trip settings adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip points are factory set and cannot be adjusted in the field.
Will this replace an older Cutler-Hammer or Westinghouse GHC breaker?
Yes, the Eaton GHC2080 is a direct replacement for legacy Cutler-Hammer and Westinghouse breakers with the same catalog number. It shares the exact same physical dimensions and mounting footprint.
