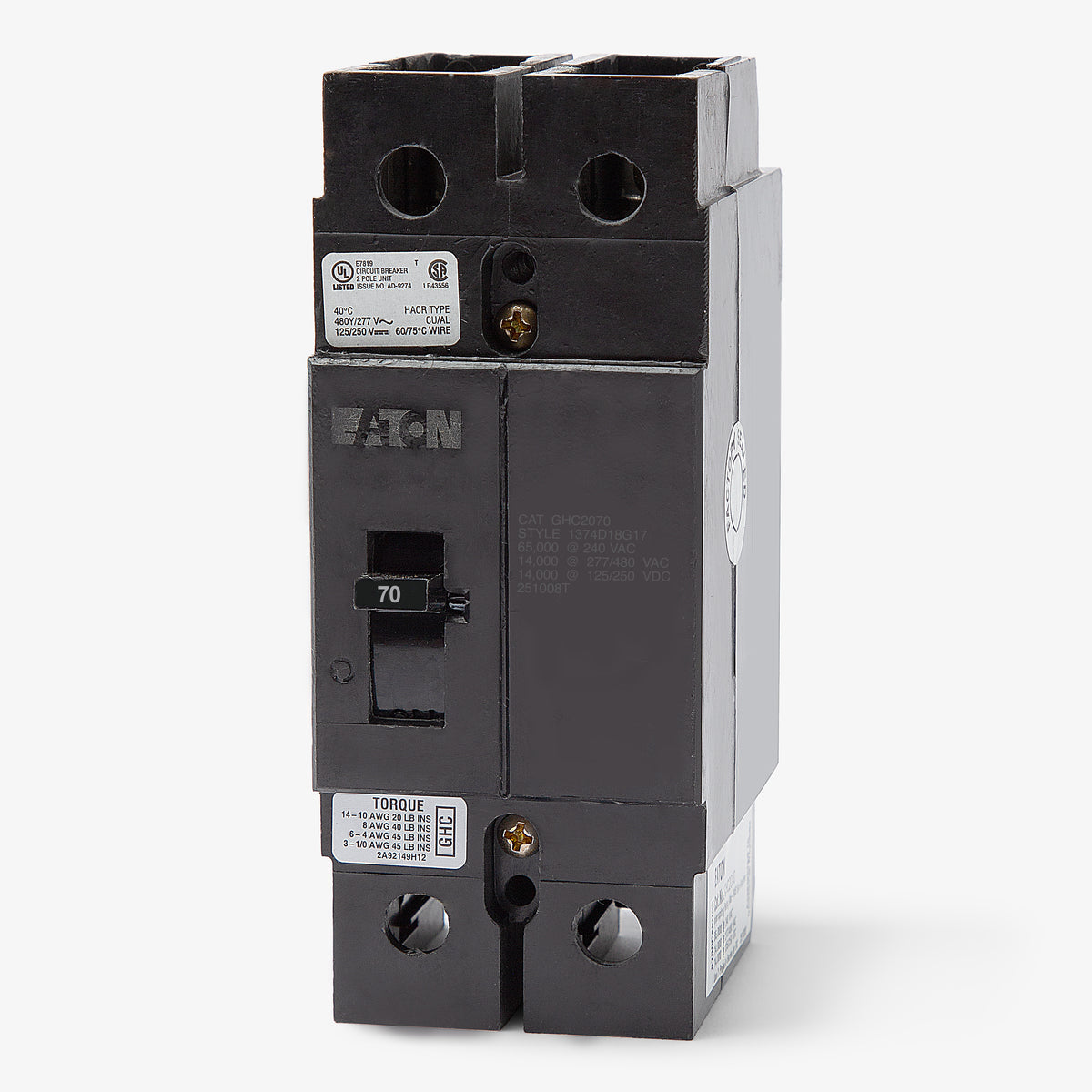

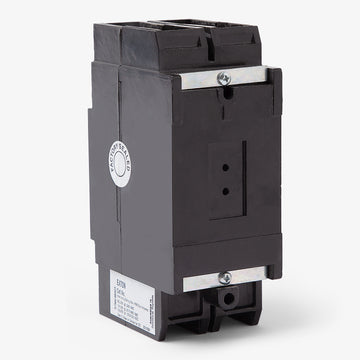

Eaton / Cutler-Hammer GHC2070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
GHC2070
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHC2070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHC2070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Eaton GHC2070 is a 70A, 2-pole molded case circuit breaker. It belongs to the proven Series C family, utilizing a compact G-frame design to deliver consistent performance. This unit mount MCCB installs into Eaton enclosures, OEM panels, and motor control centers. Rated for 14 kAIC at 480Y/277V and 65 kAIC at 240V, it includes fixed long-time and instantaneous (LI) trip functions. The breaker is HACR rated and reverse feed capable.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHC2070 |
| Series | GHC |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Enclosures, OEM Panels, DIN Rail (with adapter) |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersIs the Eaton GHC2070 the same as the Cutler-Hammer GHC2070?
Yes. Eaton acquired Cutler-Hammer, and they manufacture this breaker under the same GHC2070 catalog number. They are physically and functionally identical.
Can the GHC2070 be mounted on a DIN rail?
Yes, this unit-mount breaker can be installed on a standard 35mm DIN rail, but it requires a separate adapter bracket (Eaton part number 1225C79G01 for 1-pole and 2-pole G-frame breakers).

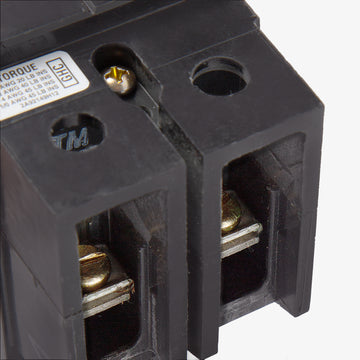

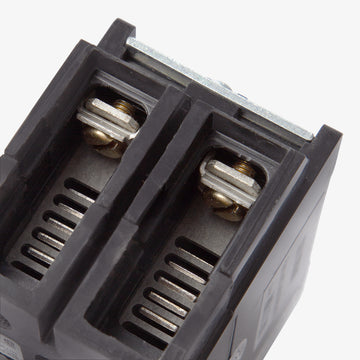

What wire sizes are compatible with the GHC2070, and how should the lugs be torqued?
The standard lugs accept 10 to 1/0 AWG copper or aluminum wire. Because required torque values vary depending on the exact wire gauge used, you must refer to the torque chart printed directly on the side of the breaker to ensure a safe and compliant connection.
What does the "LI" trip function mean on this breaker?
"LI" stands for Long-Time and Instantaneous. The Long-Time function uses a fixed thermal element to protect against overloads, while the Instantaneous function uses a fixed magnetic element to trip immediately during a short circuit.
Can the GHC2070 be used in DC circuits?
Yes, this breaker is rated for DC applications up to 125/250VDC with an interrupting capacity of 14kAIC. When applying it at 250VDC, follow Eaton's wiring guidelines for multi-pole DC configurations.
What type of enclosures are compatible with the GHC2070?
This breaker is designed for use in Eaton Series C enclosures, OEM control panels, and motor control centers that accept G-frame unit-mount breakers.
