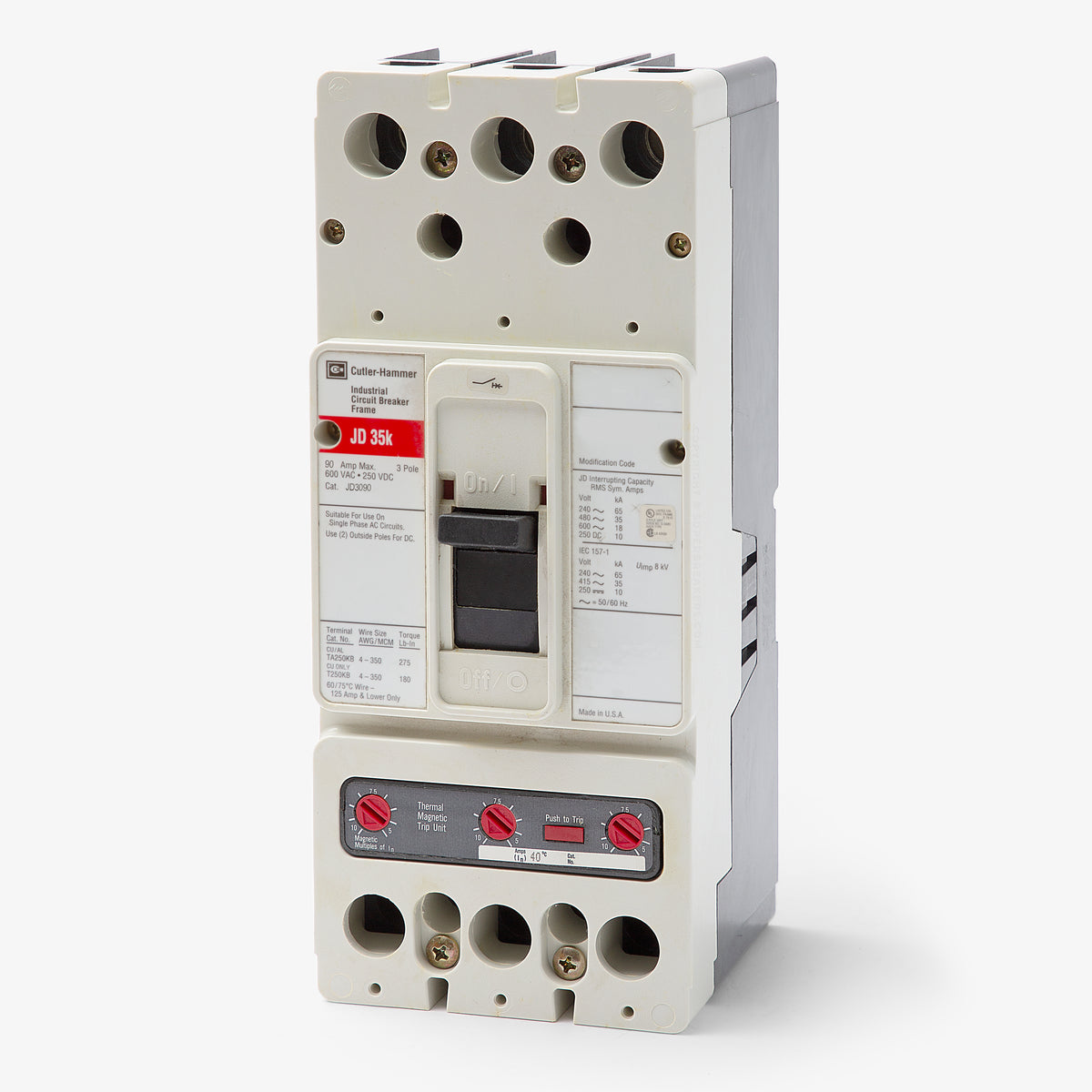

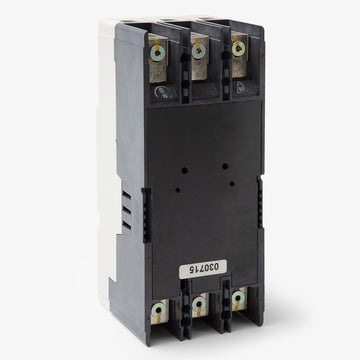

Eaton / Cutler-Hammer JD3090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
JD3090
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
JD3090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer JD3090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
Description
A drop-in solution for Eaton Series C panelboards, the JD3090 is a 3-pole, 90A molded case circuit breaker built for heavy-duty applications. It offers dependable thermal-magnetic trip functions. This panel-mount J-Frame breaker installs into compatible switchboards and motor control centers. It fits legacy installations and is replaced by the PDG33G0090TFAN. Delivering 35 kAIC at 480VAC, this HACR-rated breaker includes TA250KB lugs and reverse feed capabilities.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | JD3090 |
| Series | JD |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | JD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Includes TA250KB Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Interchangeable Trip Unit |
Product FAQs
6 answersWhat enclosures accept the JD3090 circuit breaker?
The JD3090 is designed for installation in Eaton Series C panelboards, switchboards, and motor control centers. When installing in legacy enclosures, verify if a specific J-frame branch mounting kit is required.
Can the Eaton JD3090 replace older Westinghouse JD frame breakers?
Yes. Eaton Series C molded case circuit breakers are backward compatible with legacy Westinghouse, Cutler-Hammer, and Challenger J-frame breakers. The JD3090 can directly replace older 90A, 3-pole JD breakers.
What is the magnetic trip adjustment range for the JD3090?

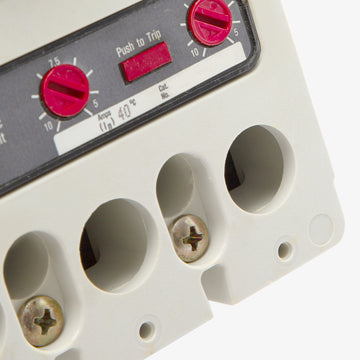

The JD3090 features an adjustable magnetic trip setting that ranges from 5 to 10 times the continuous current rating. For this 90A breaker, the instantaneous trip can be set between 450A and 900A.
What trip unit is included with the JD3090?
The JD3090 is a complete breaker that comes factory-assembled with a JT3090T thermal-magnetic trip unit. This unit provides fixed long-time and adjustable instantaneous protection.
Which lug kit is standard for the JD3090?

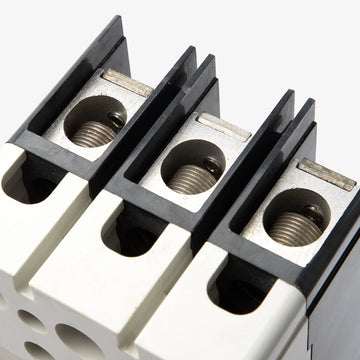

The standard line and load lug kit is the TA250KB. It accepts one 4 AWG to 350 kcmil aluminum or copper conductor per phase.
Is the JD3090 suitable for reverse feed applications?
No. Standard JD frame breakers are not suitable for reverse feed. For reverse feed applications, a JDB frame breaker with a factory-sealed, non-interchangeable trip unit is required.
