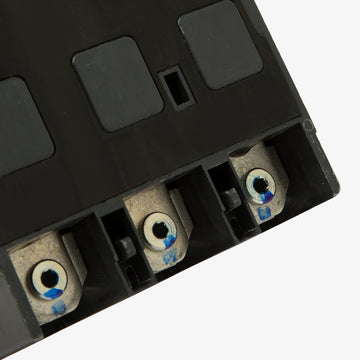

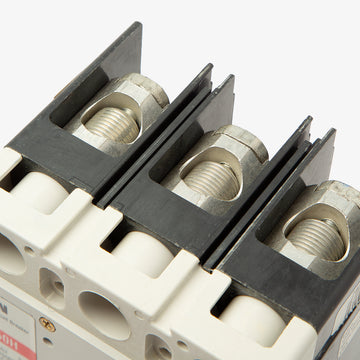

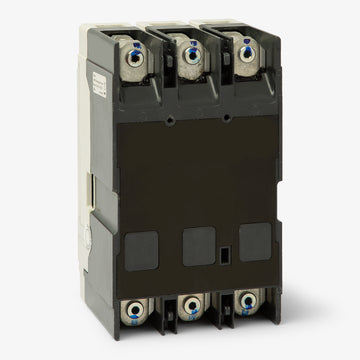

Eaton / Cutler-Hammer JGE3175FAG Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
JGE3175FAG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
JGE3175FAG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer JGE3175FAG - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerJGE3150FAG
150A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerJGE3225FAG
225A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerJGE3250FAG
250A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial use, the 175A Eaton JGE3175FAG provides robust overcurrent defense. This 3-pole MCCB is a core component of the JG-frame Series G lineup. Designed for unit mounting, it fits securely into compatible Eaton panelboards. It also replaces the legacy J3175 breaker when used with an adapter. The trip mechanism features fixed long-time and adjustable instantaneous functions. Current-limiting capabilities ensure reliable performance.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | JGE3175FAG |
| Series | JGE |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | JG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series G Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 8 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Mechanism, Motor Operator |
|---|---|
| Accessories | Line and Load Terminals (TA250FJ), Metric Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | 80% Rated, HACR Rated |
Product FAQs
7 answersDoes the JGE3175FAG come with line and load terminals?
Yes, the FAG suffix in the catalog number indicates that this breaker includes standard line and load lugs.
Is the trip unit on the JGE3175FAG adjustable?
Yes, it features a thermal-magnetic trip unit with a fixed thermal element and an adjustable magnetic element for short-circuit protection.
What equipment is the JGE3175FAG compatible with?
This JG-frame breaker is designed for use in Eaton Series G panelboards, switchboards, and motor control centers, including compatible Allen-Bradley and Rockwell Automation enclosed controls.
Can the JGE3175FAG be used in DC electrical systems?
Yes, this breaker is rated for use in DC applications up to 250VDC, providing an interrupting capacity of 10 kAIC.
Is the JGE3175FAG 100% rated or standard 80% rated?
The JGE3175FAG is a standard 80% rated circuit breaker.
How is the JGE3175FAG mounted?
It is a unit-mount breaker designed to be bolted directly to the panel or enclosure backpan.
What wire material is compatible with the JGE3175FAG lugs?
The standard lugs included with this breaker are dual-rated for both aluminum and copper (Al/Cu) conductors ranging from 8 AWG to 350 kcmil.
