Eaton / Cutler-Hammer JGH3200FAG Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
JGH3200FAG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
JGH3200FAG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

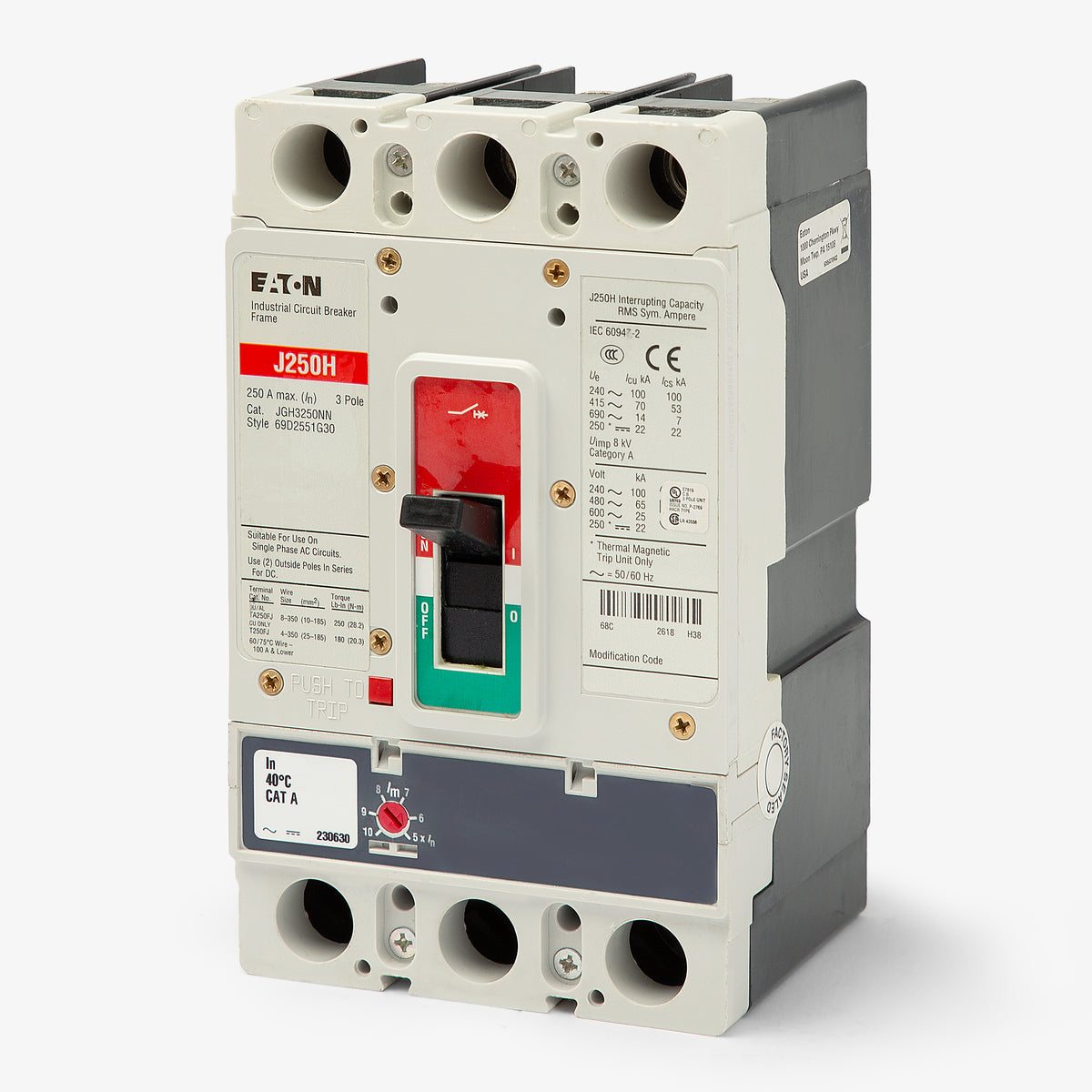

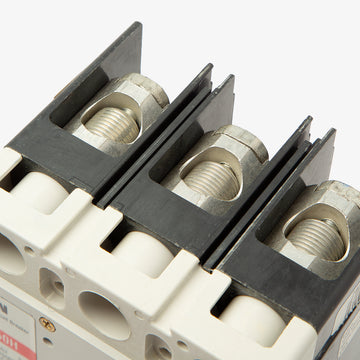

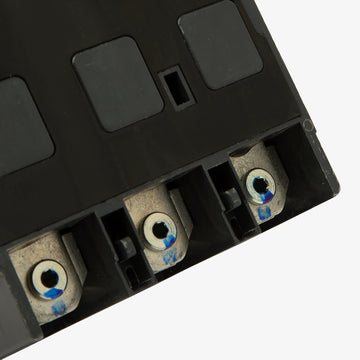

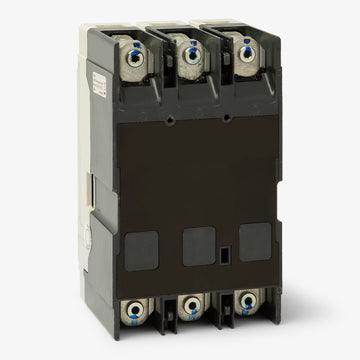

Eaton / Cutler-Hammer JGH3200FAG - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerJGH3175FAG
175A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Eaton / Cutler-HammerJGH3150FAG
150A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty industrial applications, the Eaton JGH3200FAG is a 200A, 3-pole molded case circuit breaker. As a member of the Series G JG-Frame lineup, it offers advanced current-limiting capabilities to minimize fault energy. The unit-mount design integrates into Eaton Series G panelboards and motor control centers. It includes metric mounting hardware and standard lugs. With a 65 kAIC rating at 480VAC, the thermal-magnetic mechanism provides adjustable magnetic protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | JGH3200FAG |
| Series | JGH |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | JG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series G Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Cu/Al) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Handle Lock, Terminal Shields |
|---|---|
| Accessories | Line and Load Lugs Included, Metric Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, 80% Rated |
Product FAQs
6 answersWhat types of equipment are compatible with the JGH3200FAG circuit breaker?
This JG-frame breaker is designed for installation in Eaton Series G panelboards, switchboards, and motor control centers.
What wire size and material do the lugs on the JGH3200FAG accept?
The standard line and load lugs accommodate 4 AWG to 350 kcmil wire and are rated for both copper and aluminum conductors.
What does the "FAG" suffix mean in the JGH3200FAG catalog number?
The "FAG" designation indicates that the breaker is equipped with a fixed thermal and adjustable magnetic trip unit, and includes factory-installed line and load terminals.
What does the "H" in the JGH3200FAG catalog number signify?
The "H" indicates that this is the High Interrupting Capacity version of the JG-frame breaker, providing up to 100kAIC at 240VAC and 65kAIC at 480VAC.
How is the JGH3200FAG circuit breaker mounted?
It features a unit-mount design that supports free-standing, DIN rail, or panel mounting configurations.
Are the trip settings on the JGH3200FAG adjustable?
The thermal (long-time) protection is fixed at 200 amps, while the magnetic (instantaneous) trip function is adjustable to allow for selective coordination in your electrical system.
