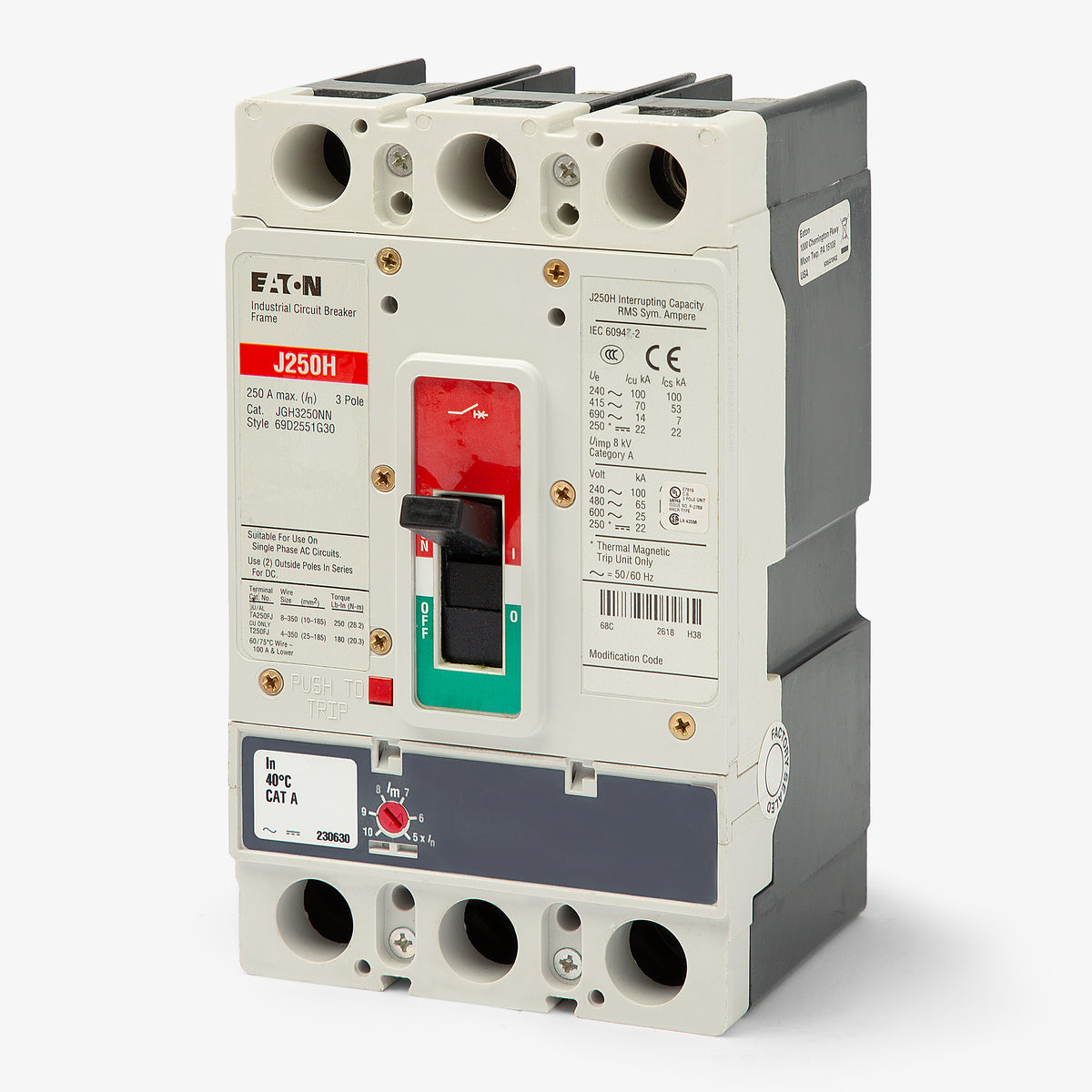

Eaton/Cutler-Hammer JGH3250FAG Circuit Breaker
- 250A
- 3 Pole
- Unit Mount
Eaton/Cutler-Hammer
JGH3250FAG
Circuit Breaker
Brand
Eaton/Cutler-Hammer
SKU
JGH3250FAG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton/Cutler-Hammer JGH3250FAG 3 Pole Circuit Breaker
New
Quantity
Quantity
Eaton/Cutler-Hammer JGH3250FAG 3 Pole Circuit Breaker
New
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Part Number | JGH3250FAG |
| Series | JGH |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | JG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Cu/Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Approval | CE, CSA, IEC, UL |
|---|---|
| Temp Rating | 40 °C |
Quantity
Eaton/Cutler-Hammer JGH3250FAG 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Series | JGH |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | JG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Cu/Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Approval | CE, CSA, IEC, UL |
|---|---|
| Temp Rating | 40 °C |
Similar Items
Eaton / Cutler-HammerJGH3200FAG
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerJGH3175FAG
175A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerJGH3150FAG
150A 3 Pole Molded Case Circuit Breaker
Description
Eaton/Cutler-Hammer JGH3250FAG 3 Pole Circuit Breaker
The Eaton/Cutler-Hammer JGH3250FAG is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 250 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kAIC at 480VAC. The JGH3250FAG has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton/Cutler-Hammer |
|---|---|
| Part Number | JGH3250FAG |
| Series | JGH |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC |
| Frame Type | JG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4 AWG - 350 kcmil (Cu/Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Approval | CE, CSA, IEC, UL |
|---|---|
| Temp Rating | 40 °C |
Product FAQs

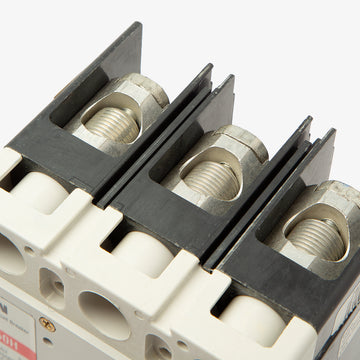

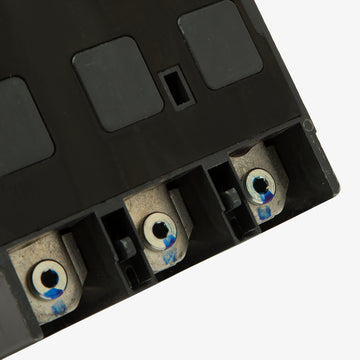

6 answersDoes the JGH3250FAG come with line and load lugs?
Yes, this complete JG-frame breaker includes standard line and load lugs with metric mounting hardware. The terminals accept 4 AWG to 350 kcmil copper or aluminum wire.
What type of trip unit is installed in the Eaton JGH3250FAG?
It features a thermal-magnetic trip unit with fixed thermal and adjustable magnetic trip settings for long-time and instantaneous (LI) protection.
Which enclosures are compatible with the JGH3250FAG circuit breaker?
This unit-mount breaker is designed for use in Eaton Pow-R-Line panelboards, switchboards, and motor control centers that accept Series G JG-frame breakers.
Can I install field accessories like shunt trips or auxiliary contacts on the JGH3250FAG?
Yes, the Eaton Series G JG-frame supports common field-fit internal accessories, including shunt trips, auxiliary contacts, and undervoltage releases.

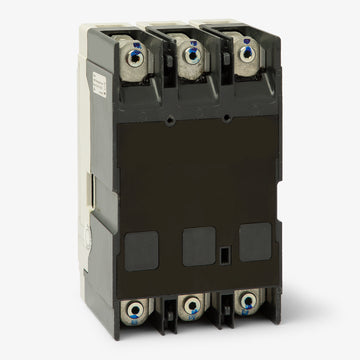

How is the JGH3250FAG mounted in an electrical enclosure?
It is a unit-mount, feed-thru circuit breaker that bolts directly to the mounting pan or chassis in compatible enclosures, rather than plugging onto bus bars.
Does the JGH3250FAG offer any specific safety features for fault clearing?
Yes, Eaton Series G breakers feature a patented contact design with high-speed blow-open action, which helps clear faults quickly and can reduce arc flash hazards.
