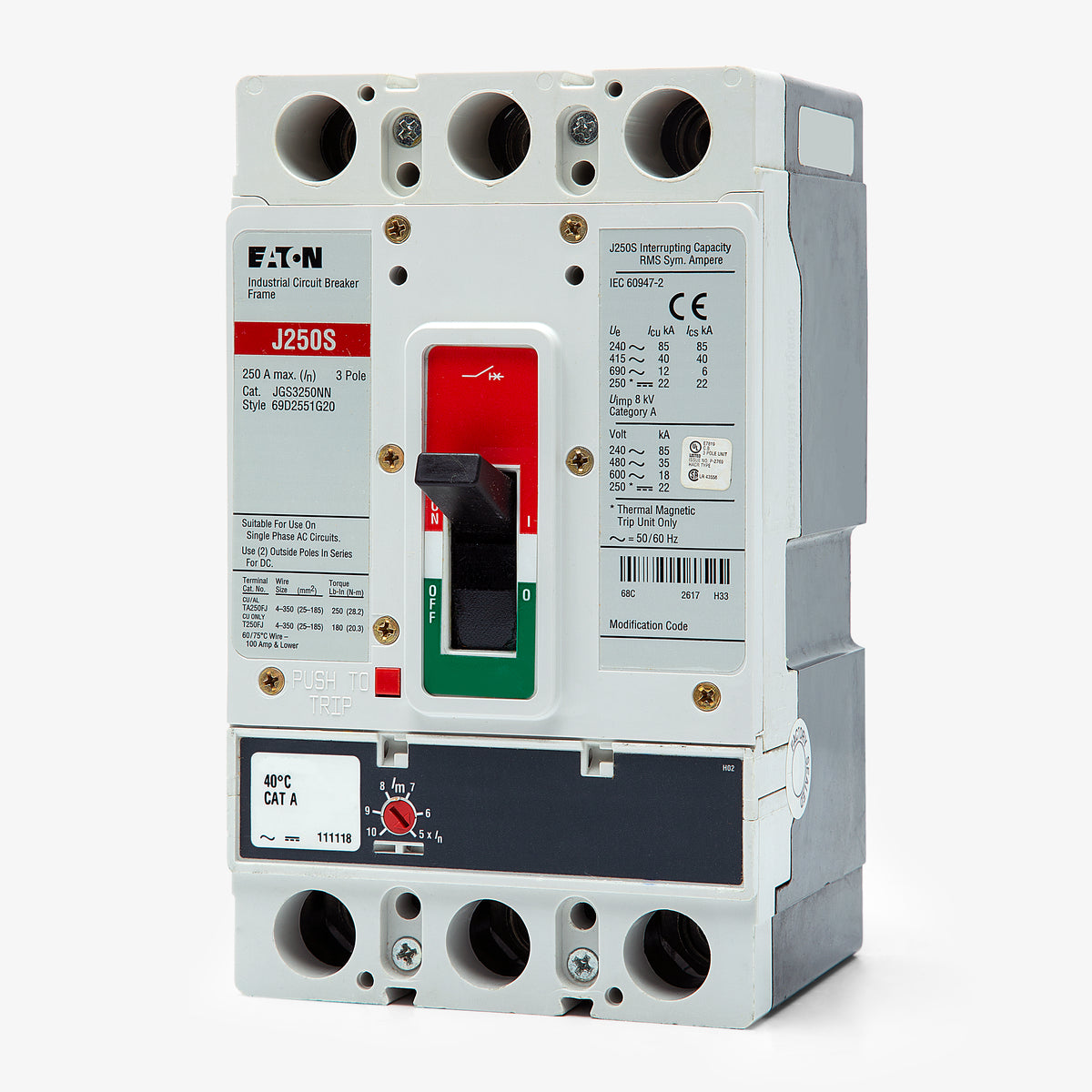

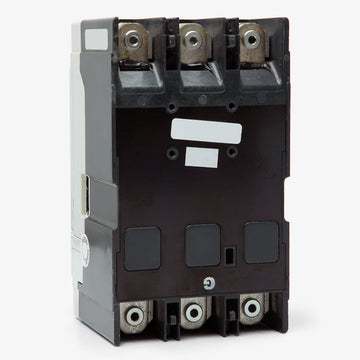

Eaton / Cutler-Hammer JGS3200FAG Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
JGS3200FAG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
JGS3200FAG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer JGS3200FAG - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerJGS3175FAG
175A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerJGS3250FAG
250A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerJGS3150FAG
150A 3 Pole Molded Case Circuit Breaker
Description
The Eaton JGS3200FAG is a 3-pole, 200A molded case circuit breaker from the high-performance Series G family. Built for demanding industrial applications, this JG-frame device delivers reliable overcurrent protection. Designed for unit mount configurations, it installs into compatible Eaton panelboards and switchboards. Rated at 85 kAIC at 240VAC, it provides robust fault-clearing capabilities. The thermal-magnetic trip unit features fixed thermal and adjustable magnetic (LI) settings.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | JGS3200FAG |
| Series | JGS |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | JG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series G Panelboards, Switchboards, MCCs |
| Wire Gauge | 4 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Mechanism, Motor Operator |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High-Speed Blow-Open Action, 80% Rated |
Product FAQs
7 answersWhat types of enclosures or panels is the JGS3200FAG compatible with?
This JG-frame breaker is designed for use in Eaton Series G panelboards, switchboards, and motor control centers (MCCs). It can also be installed in standalone enclosures that accept 250A-frame Series G breakers.
Is the magnetic trip setting adjustable on the JGS3200FAG?
Yes, this breaker features a fixed thermal and adjustable magnetic (LI) trip unit. This allows you to tune the instantaneous short-circuit response to coordinate with your specific load requirements and downstream devices.

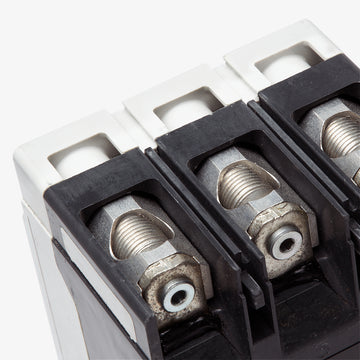

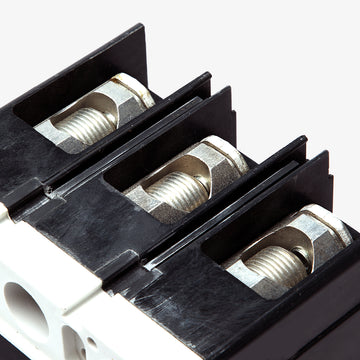

Does the JGS3200FAG come with line and load terminals?
Yes, the FAG suffix in the catalog number indicates that this breaker is supplied with standard line and load lugs installed, along with metric mounting hardware.
Can the Eaton JGS3200FAG be used in DC applications?
Yes, in addition to its standard AC ratings, this breaker is rated for 250VDC systems with an interrupting capacity of 22 kAIC.
How does the JGS3200FAG compare to the JGE3200FAG and JGH3200FAG?
These are all 200A, 3-pole Series G breakers that share the same physical JG frame, but they have different interrupting capacities at 480VAC. The JGE is rated at 25 kAIC, the JGS is rated at 35 kAIC, and the JGH is rated at 65 kAIC. The JGS3200FAG can safely replace a JGE3200FAG since it offers a higher interrupting rating.
What does the LI trip function on this breaker protect against?
The LI (Long-Time and Instantaneous) trip unit provides two types of protection. The fixed thermal element (Long-Time) protects against sustained overloads, while the adjustable magnetic element (Instantaneous) protects against short circuits.
Is the JGS3200FAG branded as Eaton or Cutler-Hammer?
The JGS3200FAG is part of the Series G family, which was originally developed under the Cutler-Hammer brand and is now manufactured by Eaton. Depending on the exact date of manufacture, the label may display Eaton, Cutler-Hammer, or both. The breakers are identical in form, fit, and function regardless of the logo on the label.
