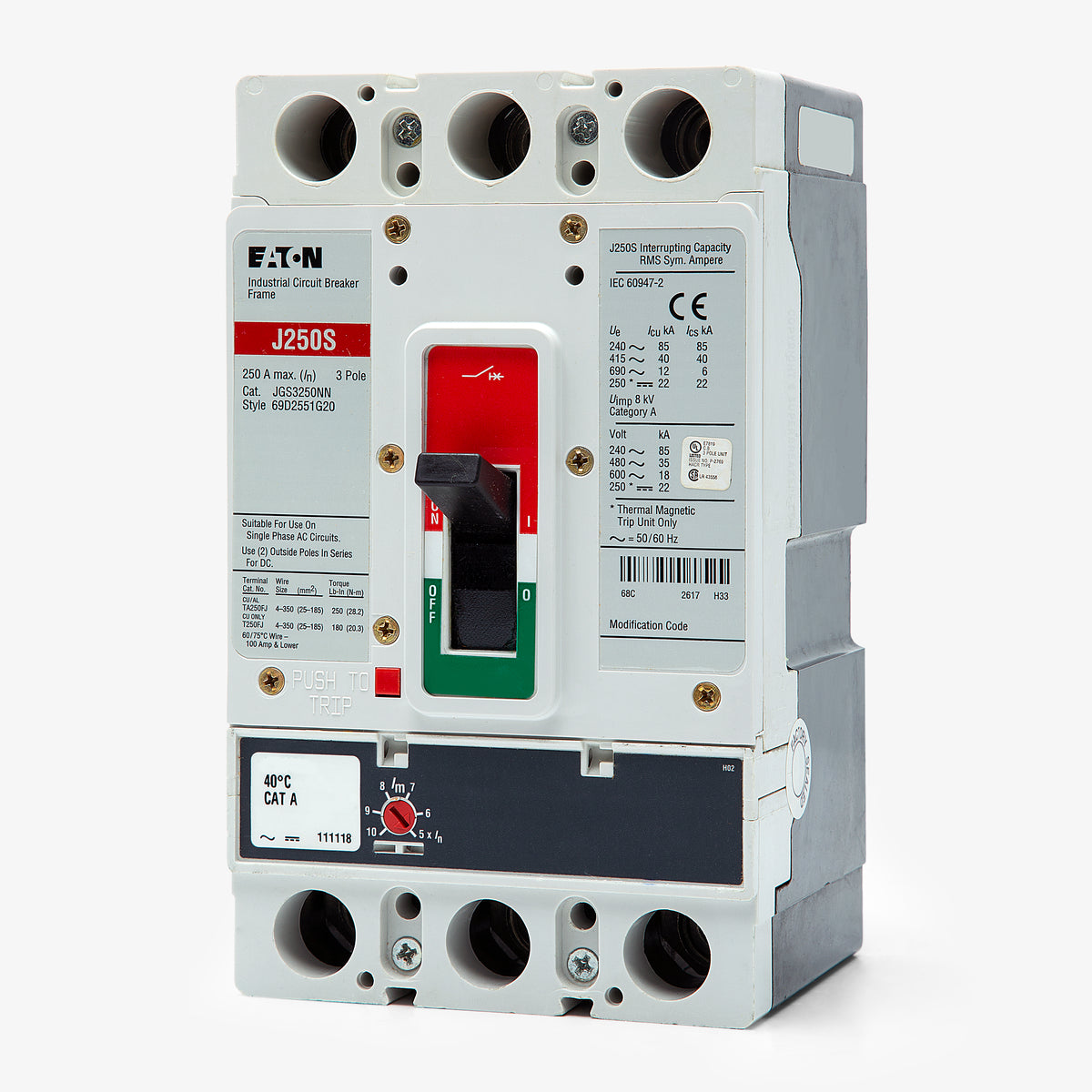

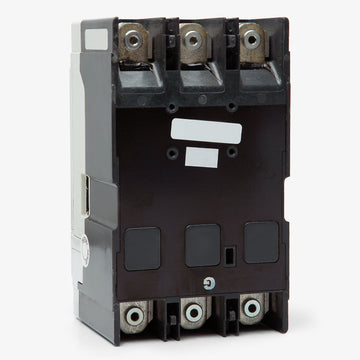

Eaton / Cutler-Hammer JGS3250FAG Molded Case Circuit Breaker
- 250A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
JGS3250FAG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
JGS3250FAG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer JGS3250FAG - 250A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerJGS3200FAG
200A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerJGS3175FAG
175A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerJGS3150FAG
150A 3 Pole Molded Case Circuit Breaker
Description
Built to handle 250 amps, the Eaton JGS3250FAG is a rugged Series G molded case circuit breaker designed for industrial power distribution. This 3-pole device features a patented contact design with high-speed blow-open action to minimize fault damage. It mounts into standard Eaton switchboards and MCCs, coming complete with TA250FJ lugs for immediate cable connection. The thermal-magnetic trip unit offers fixed long-time and adjustable instantaneous settings for precise LI protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | JGS3250FAG |
| Series | JGS |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | JG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series G Panelboards, Switchboards, MCCs |
| Wire Gauge | 4 AWG - 350 kcmil |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields |
|---|---|

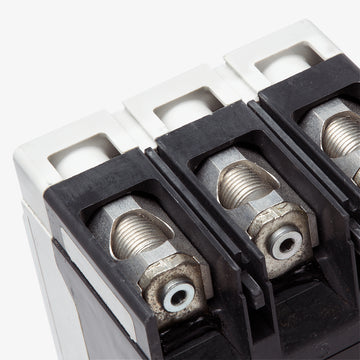

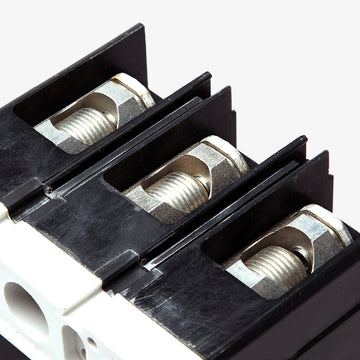

| Accessories | Line and Load Lugs Included (TA250FJ), Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersCan the JGS3250FAG replace an older Series C J3250 breaker?
Yes, you can use the JGS3250FAG to replace legacy Series C J3250 breakers, but you will need a specific mounting adapter to properly align the newer Series G frame within the older enclosure.
Will the JGS3250FAG fit into a standard residential load center?
No. This JG-frame breaker is intended for commercial and industrial power distribution. It is specifically designed for Eaton Series G panelboards, switchboards, and motor control centers.
What is the adjustable magnetic trip range on the JGS3250FAG?
The instantaneous magnetic trip unit can be adjusted from 1250 A to 2500 A for precise short-circuit coordination. The thermal overload trip is fixed at 250 A.
Is the JGS3250FAG rated for direct current (DC) systems?
Yes, this breaker carries a DC rating of up to 250VDC with an interrupting capacity of 22 kAIC.
Does this breaker come with line and load lugs installed?
Yes, it includes standard line and load lugs that accept 4 AWG through 350 kcmil copper or aluminum conductors.
How does the unit-mount design of the JGS3250FAG differ from a bolt-on breaker?
As a feed-thru unit-mount breaker, it fastens directly to a chassis, backpan, or mounting plate using metric hardware, rather than bolting directly onto the live bus bars of a traditional panelboard.
